Product Introduction

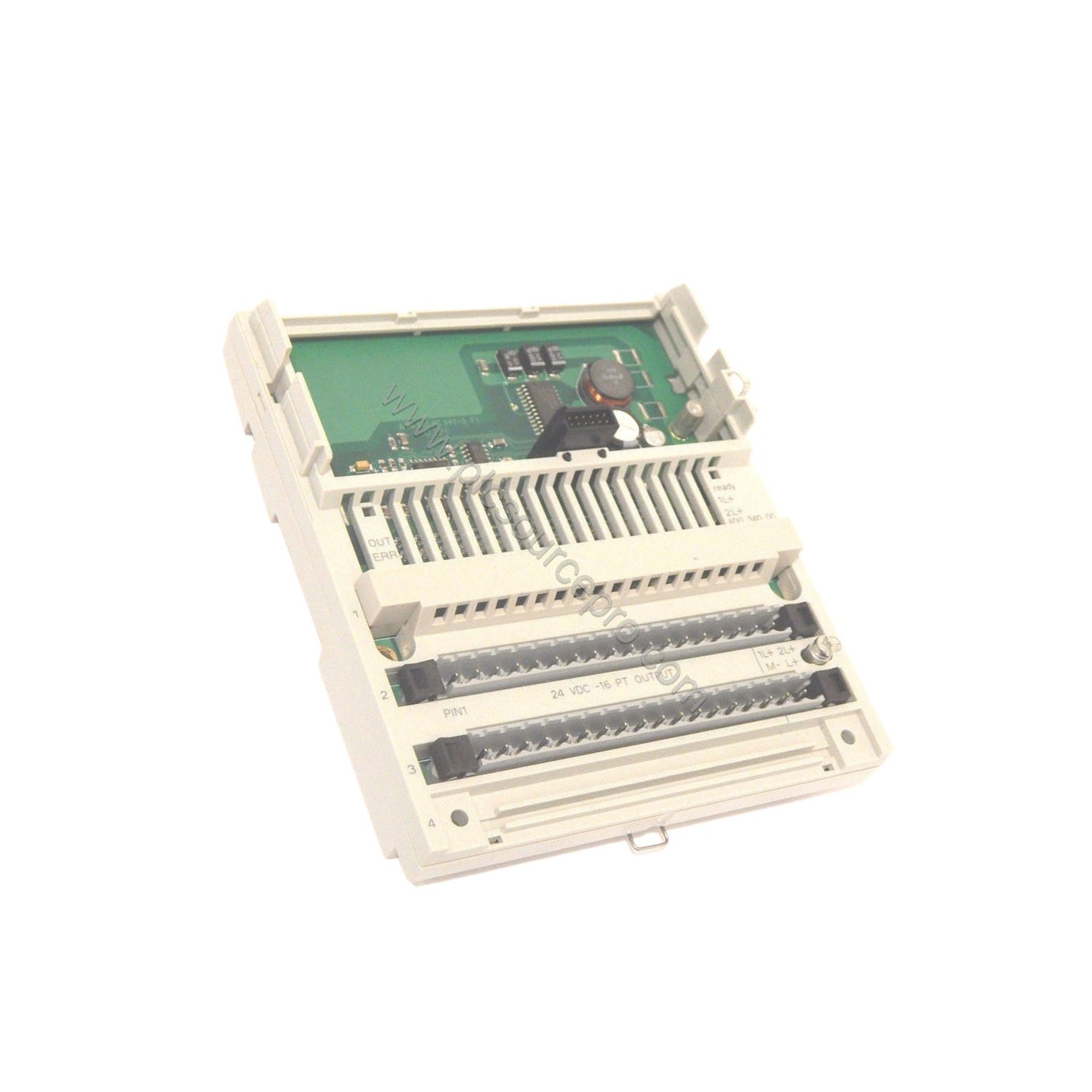

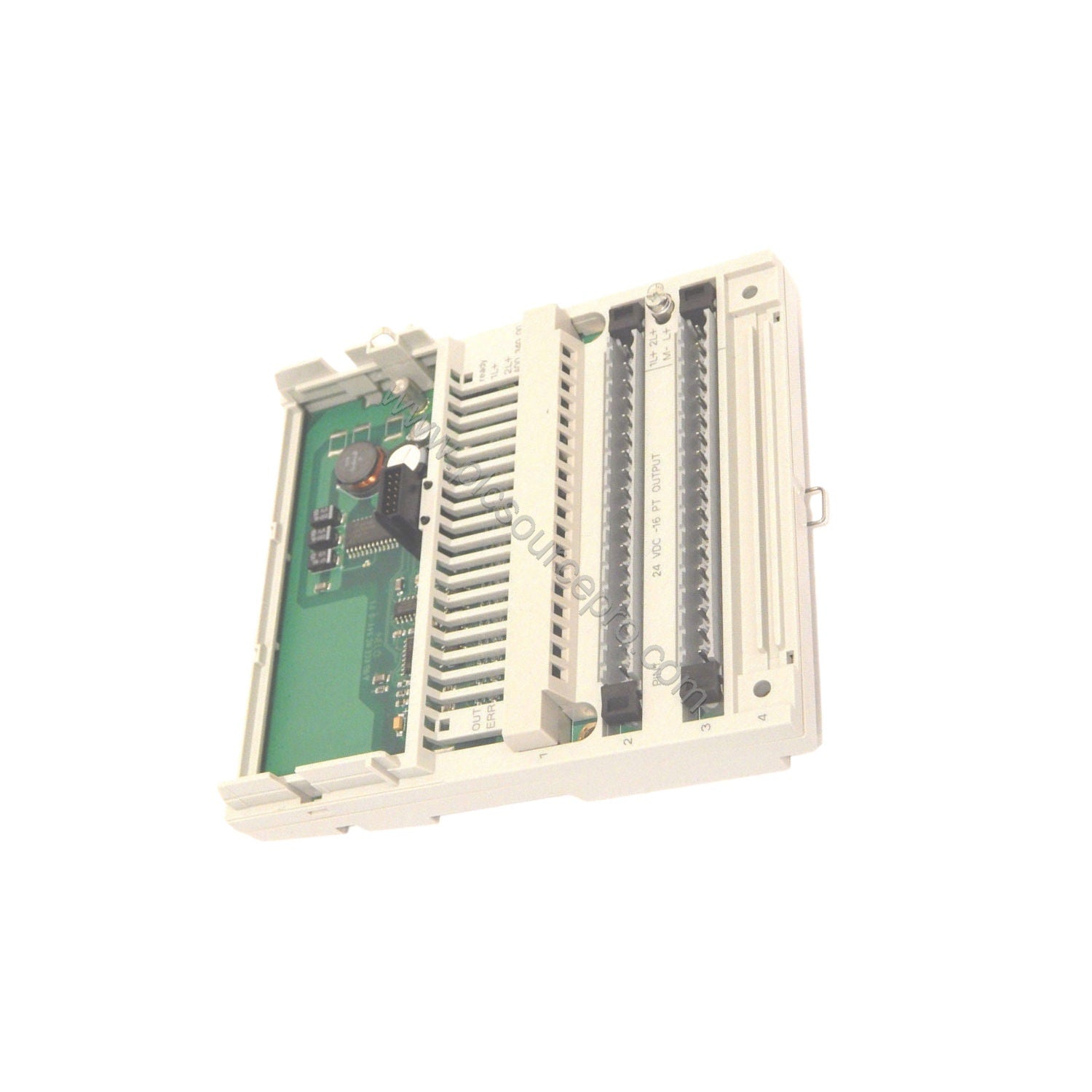

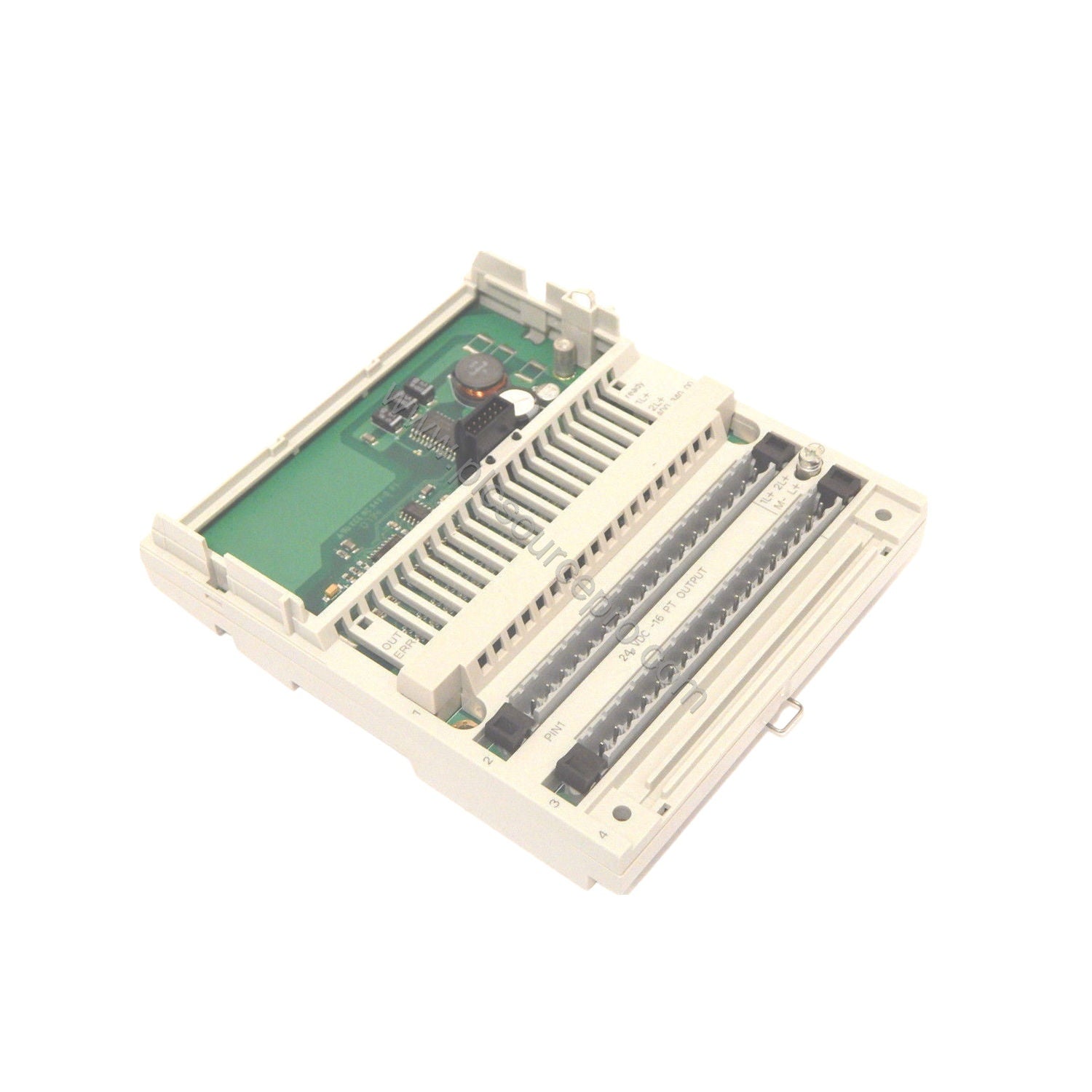

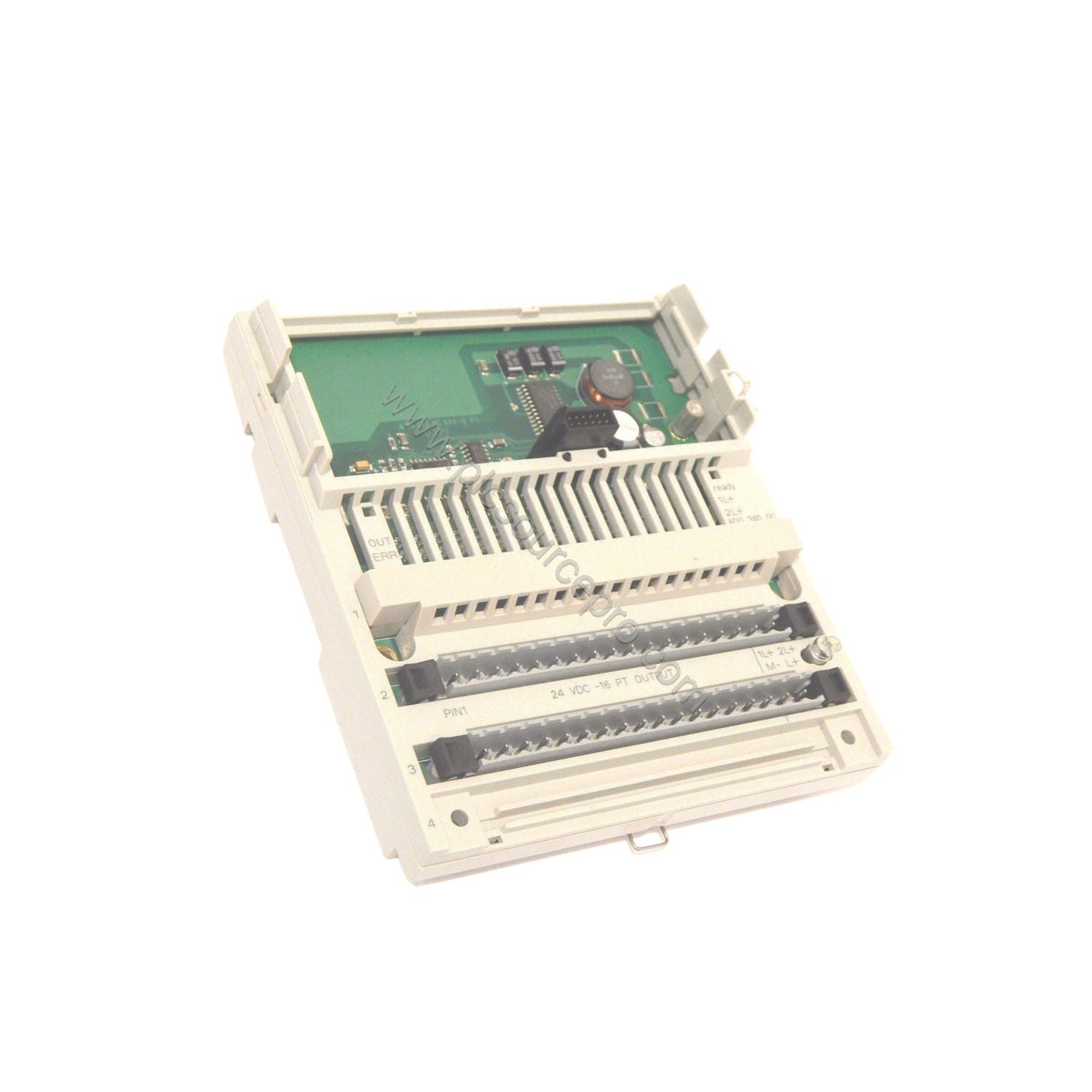

The Schneider 170ADO34000 discrete output module is a reliable component of the Modicon Momentum series. Designed for precise control, this solid-state device delivers 16 outputs at 24 V DC with a current rating of 0.5 Amps each. Its compact form factor and robust construction make it an ideal choice for demanding industrial environments where consistent performance is critical.
Technical Specifications
Below are the key parameters for the Schneider 170ADO34000:
| Parameter |
Value |
| Product Type |
Discrete Output Module |
| Solid-State Device |
Yes |
| Number of Outputs |
16 |
| Current Rating per Output |
0.5 Amps |
| Voltage Type |
DC |
| Voltage Rating |
24 V DC |
| Operating Temperature |
0 to 40 °C |
| Storage Temperature |
0 to 50 °C |
| Humidity (Operating & Storage) |
Up to 80% non-condensing |
| Operating Altitude |
Up to 1000 m |
| Weight |
0.50 lbs (0.23 kg) |
| Environment |
Clean indoor, no corrosive chemicals |
These specifications ensure the Schneider 170ADO34000 integrates seamlessly into low-voltage DC control systems while maintaining durability.
Industry Applications
The 170ADO34000 is well-suited for applications requiring reliable discrete output control. Common use cases include:
- Conveyor system control in material handling
- Valve actuation in process automation
- Indicator light arrays in manufacturing cells
Its 24 V DC operation aligns with standard industrial power supplies, reducing the need for additional converters. The solid-state design eliminates mechanical wear, contributing to long service life and lower total cost of ownership.
Maintenance & Reliability
Because the Schneider 170ADO34000 uses solid-state technology, it requires minimal routine maintenance. The absence of moving parts reduces failure points. Environmental factors such as temperature and humidity must stay within specified limits to maximize longevity. Regular inspection of connections and cleaning of module surfaces helps prevent dust buildup. This module’s robust design supports continuous operation in clean indoor facilities, reducing downtime and extending replacement intervals.
Selection Guide & Purchasing Advice
When selecting the 170ADO34000, verify that your system operates at 24 V DC and that the load current per output does not exceed 0.5 Amps. Ensure the environmental conditions match the specified range (temperature, humidity, altitude). For compatibility, the module fits Modicon Momentum backplanes and can be integrated with various Schneider controllers. UBEST Automation offers genuine Schneider 170ADO34000 modules with full traceability, ensuring you receive a reliable part for your automation upgrade or replacement needs.
