Product Overview

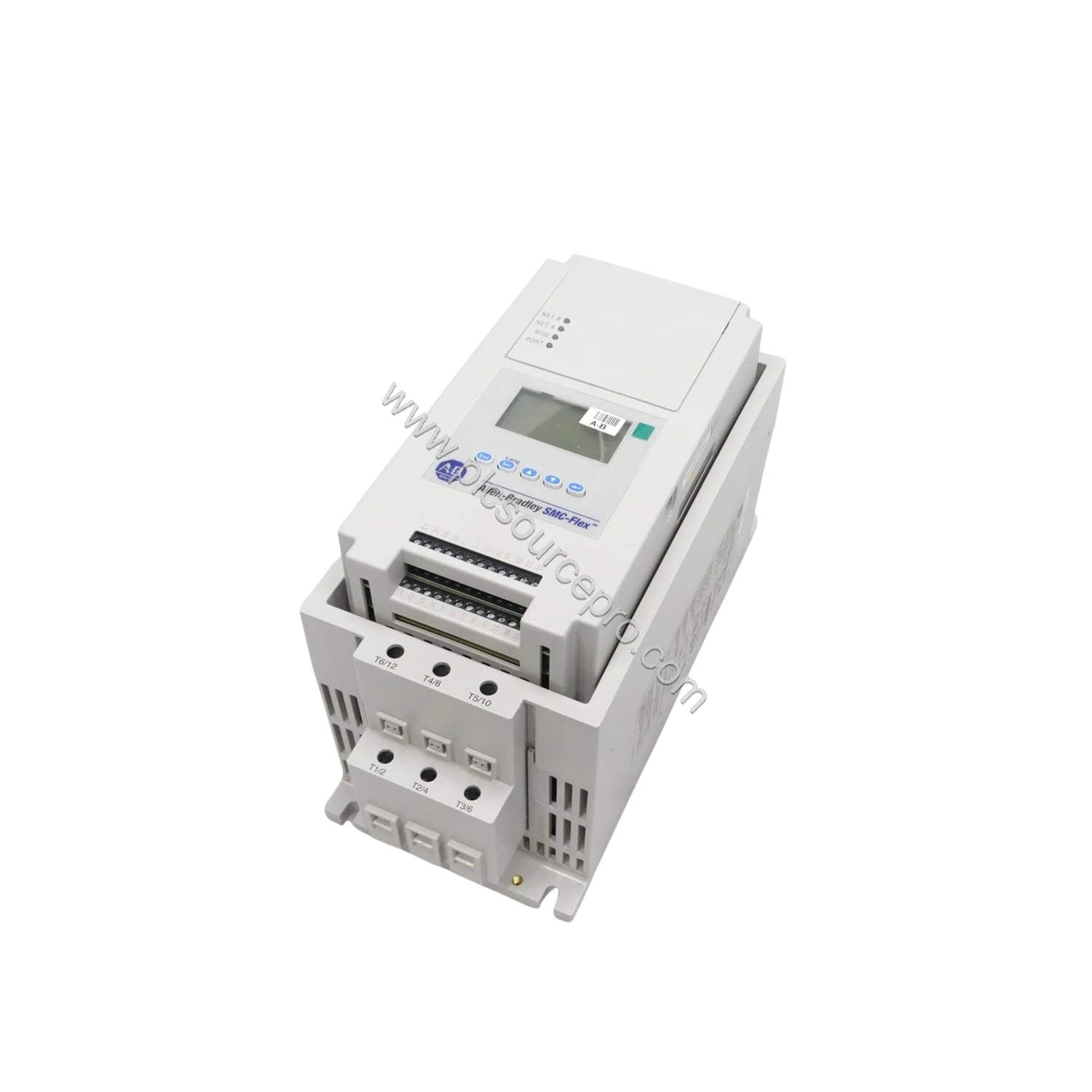

When you need precise, reliable motor control in demanding industrial environments, the Allen-Bradley 150-F5FAD delivers. This SMC-Flex Smart Motor Controller provides a microcomputer start for 3-phase induction motors, housed in a rugged IP65 (Type 4/12) enclosure. The 150-F5FAD is engineered to protect your equipment and reduce mechanical stress, making it a smart investment for any automation system.
Key Technical Specifications
The Allen-Bradley 150-F5FAD offers the following core specifications:
| Parameter |
Value |
| Controller Rating |
5 A, 3 Hp @ 460V AC |
| Input Line Voltage |
230V AC, 3-phase, 50 and 60 Hz |
| Rated Voltage |
230V AC |
| Control Voltage |
100-240V AC (5-480 A units) |
| Enclosure Type |
IP65 (Type 4/12) |
| Short-Circuit Rating |
30 kA |
| Dielectric Withstand (Input) |
2,200V AC |
| Dielectric Withstand (Control) |
1,600V |
| Operating Temperature |
23°F to 122°F (-5°C to 50°C) |
| Humidity |
5% to 95% |
| Storage Temperature |
23°F to 104°F (-5°C to 40°C) |
| Shock (Operational) |
15G for up to 11 ms |
| Vibration |
1G maximum |
| Maximum Altitude |
2,000 meters |
| Weight (Approx.) |
5.7 kg (12.6 lbs) |
| Shipping Volume |
321 x 150 x 203 mm |
Advanced Protection and Control Features
The 150-F5FAD includes a built-in DPI communication interface, supporting multiple network types such as DeviceNet, ControlNet, Ethernet, RS-485, and Profibus. This flexibility simplifies integration into existing automation architectures. Its 3-line, 16-character LCD provides clear parameter identification, while the keypad enables easy programming.
This controller features 7 operating modes: soft start, current limit start, dual ramp, full voltage, linear speed acceleration, preset slow speed, and soft stop. These modes give you precise control over motor starting and stopping, reducing mechanical wear and electrical stress.
Built-in protective functions include power loss, line fault, voltage unbalance, under voltage, overvoltage, control temperature, stall, jam, under load, and communication fault protection. LED indicators provide immediate status feedback, allowing quick diagnostics.
Real-World Applications
The Allen-Bradley 150-F5FAD is ideal for a wide range of industrial applications, including:
- Conveyor systems requiring smooth, controlled starts to protect product integrity.
- Pumps and fans where soft starting reduces water hammer and mechanical stress.
- Compressors that benefit from current limit start to avoid excessive inrush currents.
In each scenario, the controller’s IP65 enclosure ensures protection against dust and water, making it suitable for washdown environments.
Installation and Setup
Install the 150-F5FAD in a location with adequate ventilation, respecting the operating temperature range. Mount the unit securely, and ensure the input line voltage matches your supply (230V AC, 3-phase). Connect the motor leads according to the wiring diagram provided with the unit. Use the front keypad to configure parameters for your specific application, selecting the appropriate operating mode and protection settings.
Maintenance and Reliability
Regularly inspect the controller for dust accumulation and ensure the enclosure gaskets remain intact to maintain its IP65 rating. Periodically verify that all electrical connections are tight. The 150-F5FAD is designed for long service life, and its protective features help prevent damage from common electrical faults, reducing downtime and maintenance costs.
Selection Guide
When selecting a motor controller, verify that the controller rating (5 A, 3 Hp @ 460V AC) matches your motor’s full-load current and horsepower. Confirm the input line voltage and control voltage requirements. For expert assistance and genuine Allen-Bradley components, trust PLC Source PRO to supply the right part for your needs.
