Product Overview

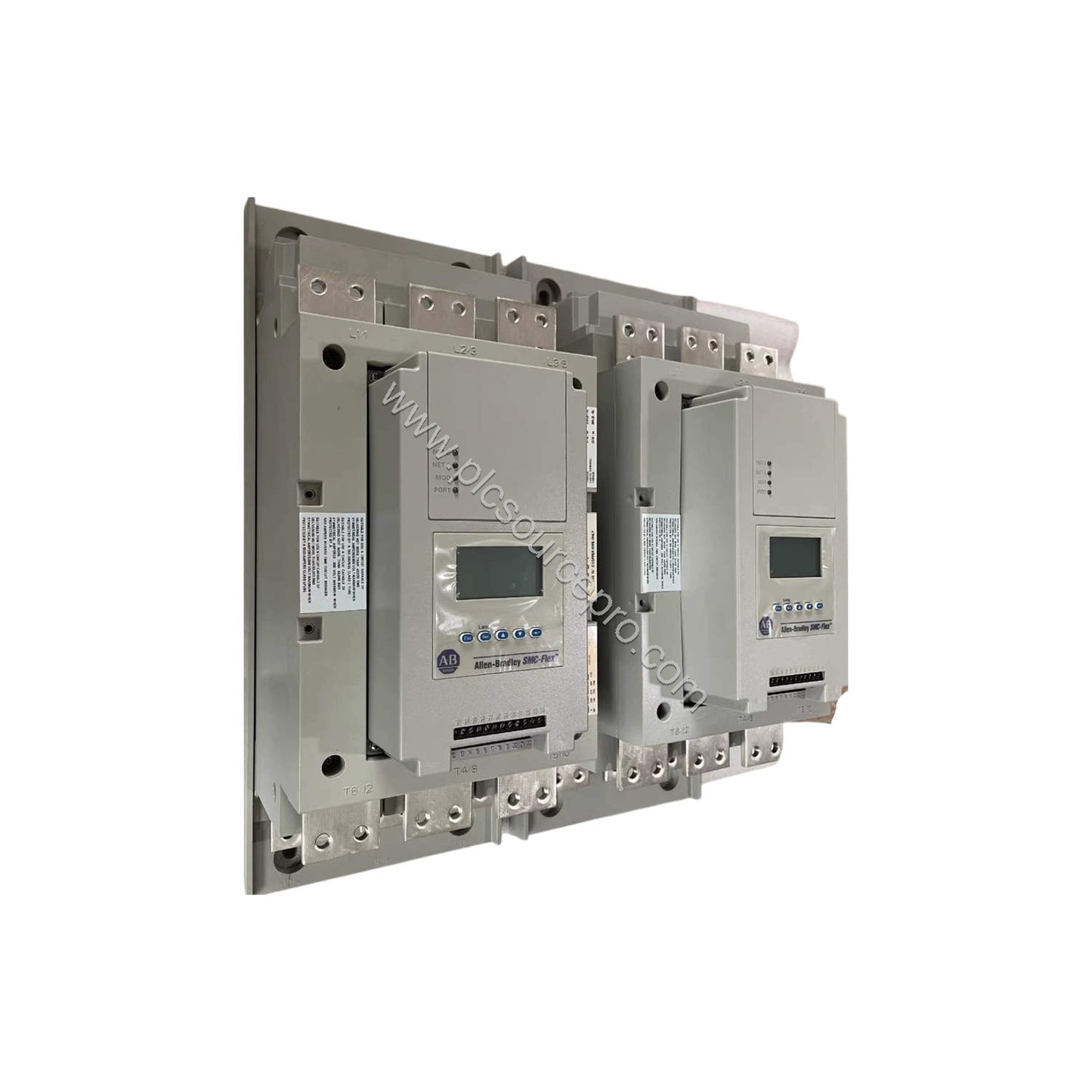

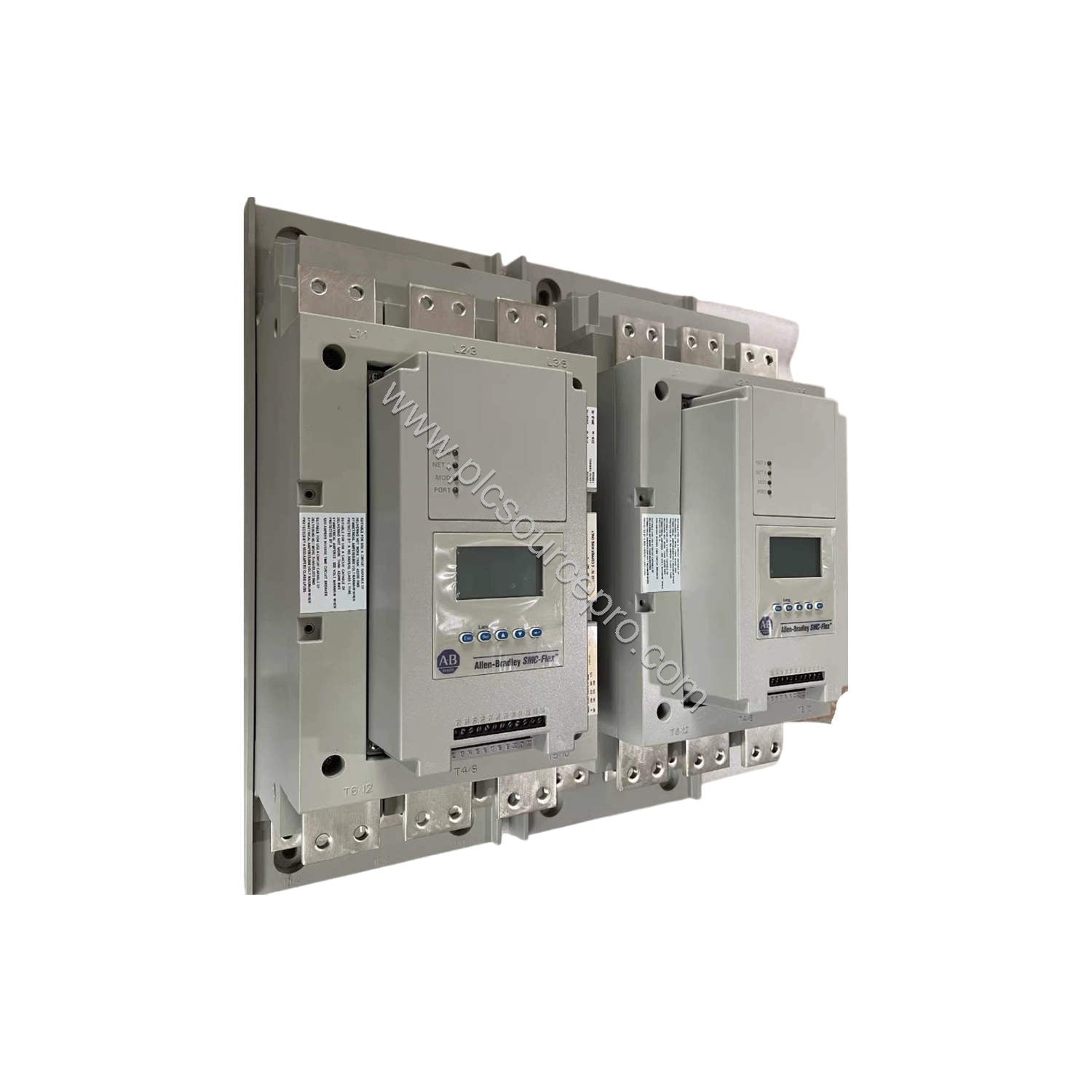

The Allen-Bradley 150-F25FHD is a solid state motor controller from the SMC-Flex product line, engineered for demanding industrial automation environments. With its IP65 (Type 4/12) enclosure and 25 A, 15 Hp @ 460V AC controller rating, this module delivers robust performance and reliable protection. The 150-F25FHD supports 200-208V AC, 3-phase, 50 and 60 Hz input line, making it a versatile choice for global operations.
Designed to reduce energy costs and simplify installation, the 150-F25FHD integrates an electromechanical motor starter that minimizes additional control wiring. Its digital rotary switches, DIP switches, and LED indicators provide clear operational status, while metal oxide varistors guard against line surges and snubber noise.
Technical Specifications
| Specification |
Value |
| Manufacturer |
Allen Bradley |
| Category |
Drives |
| Product Line |
SMC-Flex |
| Part Number |
150-F25FHD |
| Weight |
225.00 lbs (102.06 kg) |
| Bulletin Number |
Solid State Controller |
| Enclosure Type |
IP65 (Type 4/12) |
| Controller Rating |
25 A, 15 Hp @ 460V AC |
| Input Line Voltage |
200-208V AC, 3-phase, 50 and 60 Hz |
| Control Voltage |
100-240V AC (5-480 A units) |
| Rated Voltage |
200/208V AC |
Key Features & Benefits
-
Energy Saver Option: Automatically reduces energy consumption during light or no-load conditions, lowering operational costs.
-
Three Operating Modes: Soft start, full voltage start, and current limit start provide flexibility for various motor starting requirements.
-
Robust Enclosure: IP65 (Type 4/12) protects against dust, water, and corrosion, ensuring longevity in harsh environments.
-
Integrated Motor Starter: Eliminates extra control wiring, simplifying installation and reducing panel complexity.
-
Diagnostic LEDs: Display voltage presence, starting mode, running mode, and high-temperature faults for quick troubleshooting.
-
Surge Protection: Metal oxide varistors dissipate noise energy from line surges and snubbers.
Industry Applications
The Allen-Bradley 150-F25FHD is ideal for applications requiring reliable motor control and energy efficiency. Common use cases include:
-
Conveyor Systems: Soft start reduces mechanical stress on belts and gears, extending equipment life.
-
Pumps and Fans: Current limit start prevents inrush current spikes, protecting the motor and reducing energy spikes.
-
HVAC Equipment: Energy saver mode cuts power draw during low demand periods, lowering utility bills.
By choosing the 150-F25FHD, operators gain a scalable solution that adapts to varying load conditions while maintaining precise control.
Installation & Setup Guidance
Mount the 150-F25FHD securely in a clean, dry environment free from corrosive elements. Ensure proper clearance for ventilation and access to the front panel. Connect the input line voltage (200-208V AC, 3-phase) to the designated terminals, and set the control voltage to 100-240V AC as required. Use the digital rotary switches and DIP switches to configure starting modes and operational parameters. Verify all wiring against the provided diagrams before energizing the unit.
Maintenance & Reliability
Routine inspection of the 150-F25FHD is essential for long-term reliability. Periodically check the enclosure seals for integrity, ensuring the IP65 rating remains effective. Monitor LED indicators for any fault signals, and address high-temperature warnings promptly. Keep the unit free from dust and moisture, and store spare units in a controlled environment to prevent corrosion. These practices minimize downtime and extend the service life of your investment.
Selection Guide & Purchasing Advice
Before ordering, confirm that the 150-F25FHD matches your motor's voltage and current requirements. Verify the input line voltage (200-208V AC) and phase configuration. Consider the physical dimensions and weight (225.00 lbs) to ensure adequate mounting support. For additional protection, an optional protective module can be installed on the motor starter. PLC Source PRO is a trusted supplier of genuine Allen-Bradley parts, ensuring you receive authentic components backed by industry expertise.
