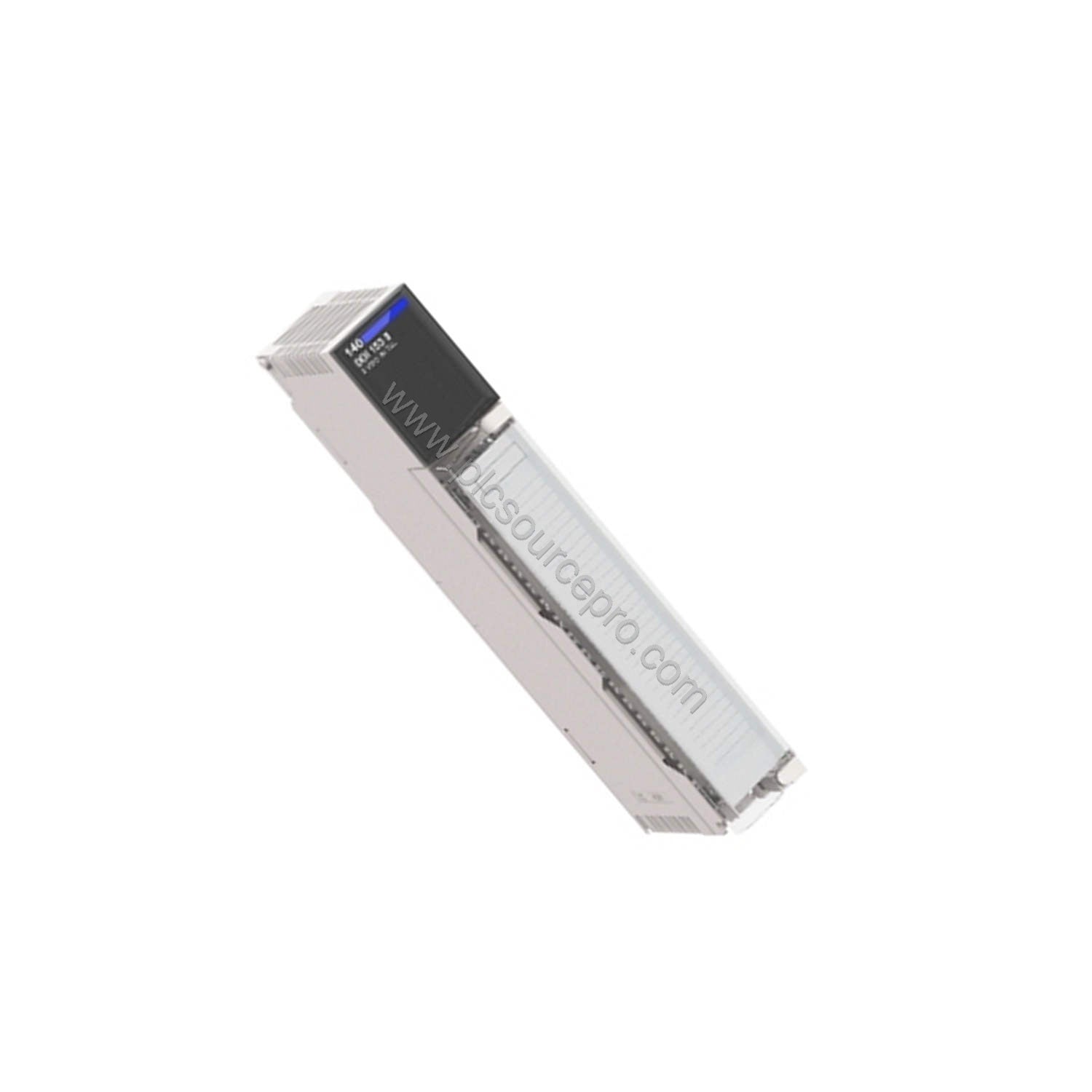

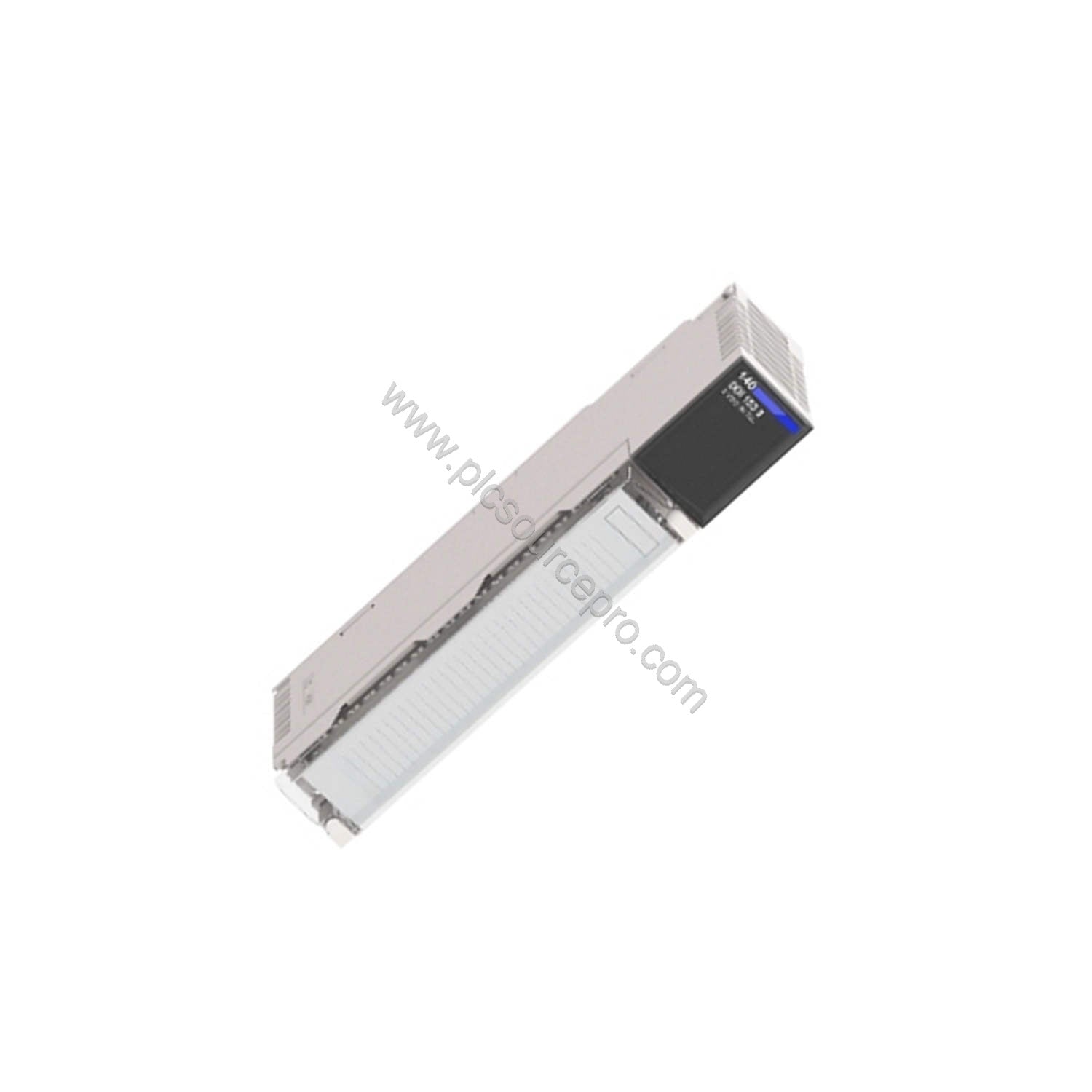

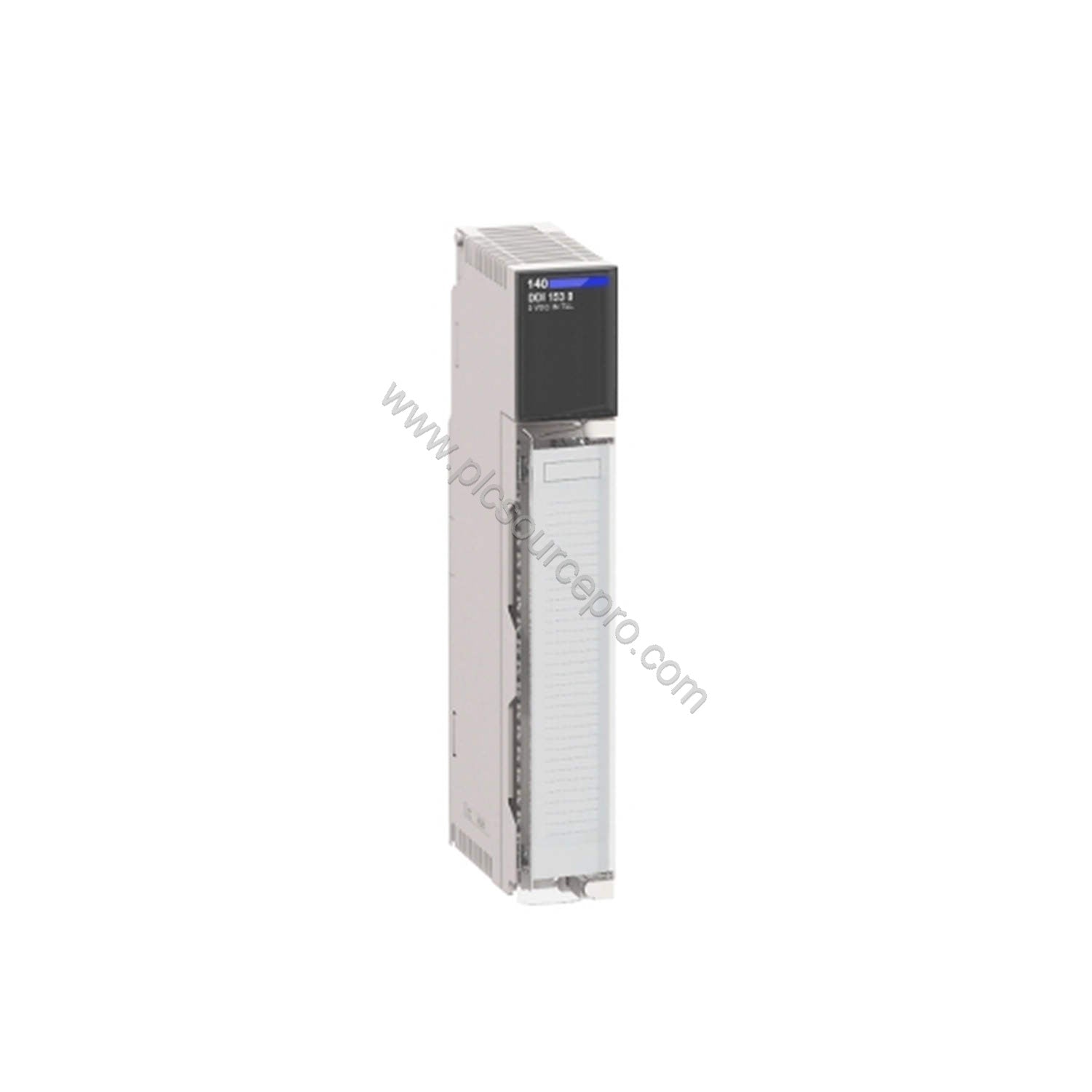

Product Introduction
With 32 discrete inputs and a robust voltage range from 19.2 to 30 V DC, the Schneider 140DDI35300C DC discrete input module delivers reliable performance for industrial automation. Engineered as part of the Modicon Quantum series, this module simplifies control integration while maximizing uptime. Its positive logic input design and 2500 Ohm impedance ensure consistent signal detection, making it a cost-effective choice for reducing system downtime and maintenance expenses.
Technical Specifications Breakdown
The Schneider 140DDI35300C offers rigorous electrical specifications that guarantee stable operation. Key parameters include:
| Parameter |
Value |
| Discrete Inputs |
32 |
| Input Voltage Limits |
19.2 – 30 V DC |
| Input Impedance |
2500 Ohm |
| Current State 1 Guaranteed |
≥ 2 mA at Us = 5.5 V and Uin = 0 V |
| Isolation Between Groups |
500 Vrms for 1 minute |
| Power Dissipation |
1.7 W + (0.36 x number of points on) |
These specifications ensure the module can handle demanding industrial environments while minimizing power consumption and heat generation, directly contributing to lower operational costs and extended equipment life.
Industry Applications
The Schneider 140DDI35300C excels in manufacturing lines, material handling systems, and process control installations. For example, in a packaging line, its fast ≤1 ms response time and 32 inputs allow precise monitoring of multiple sensors, reducing false trips and increasing throughput. The wide operating temperature range (0 to 60 °C) and conformal coating protect against humidity and dust, ensuring long-term reliability even in harsh factory floors. This reliability translates to fewer unscheduled stoppages and a strong return on investment.
Installation & Setup Guidance
Installing the Schneider 140DDI35300C requires addressing with 2 input words in the Modicon Quantum backplane. The module features a standard format with 32 green LEDs for input status, one green LED for bus communication, and one red LED for external fault detection. Ensure the power supply provides 330 mA bus current. Use proper wiring practices to maintain the 500 Vrms isolation between groups. The compact net weight of 0.3 kg allows easy handling during mounting.
Maintenance & Reliability
Routine maintenance for the Schneider 140DDI35300C involves periodic inspection of the conformal coating and connectors. The module’s protective treatment (Humiseal 1A33) and compliance with standards like UL 508 and CSA C22.2 No 142 indicate robust design. Operating within the 0–60 °C range and avoiding voltage spikes beyond the absolute maximum of 36 V (continuous) or 56 V pulse will maximize service life. By following these guidelines, users can significantly reduce replacement frequency and related costs, reinforcing the cost-benefit advantage of this model.
Selection Guide & Purchasing Advice
Before purchasing a Schneider 140DDI35300C, verify compatibility with your Modicon Quantum rack. Confirm that the required bus current (330 mA) and addressing (2 input words) align with your system configuration. For reliable sourcing, consider UBEST Automation as your trusted supplier. They stock genuine units with full traceability. Always check that the input voltage matches your application (19.2–30 V DC) and that the module’s positive logic meets your sensor wiring requirements. Proper selection ensures seamless integration and maximized uptime.
