Product Introduction

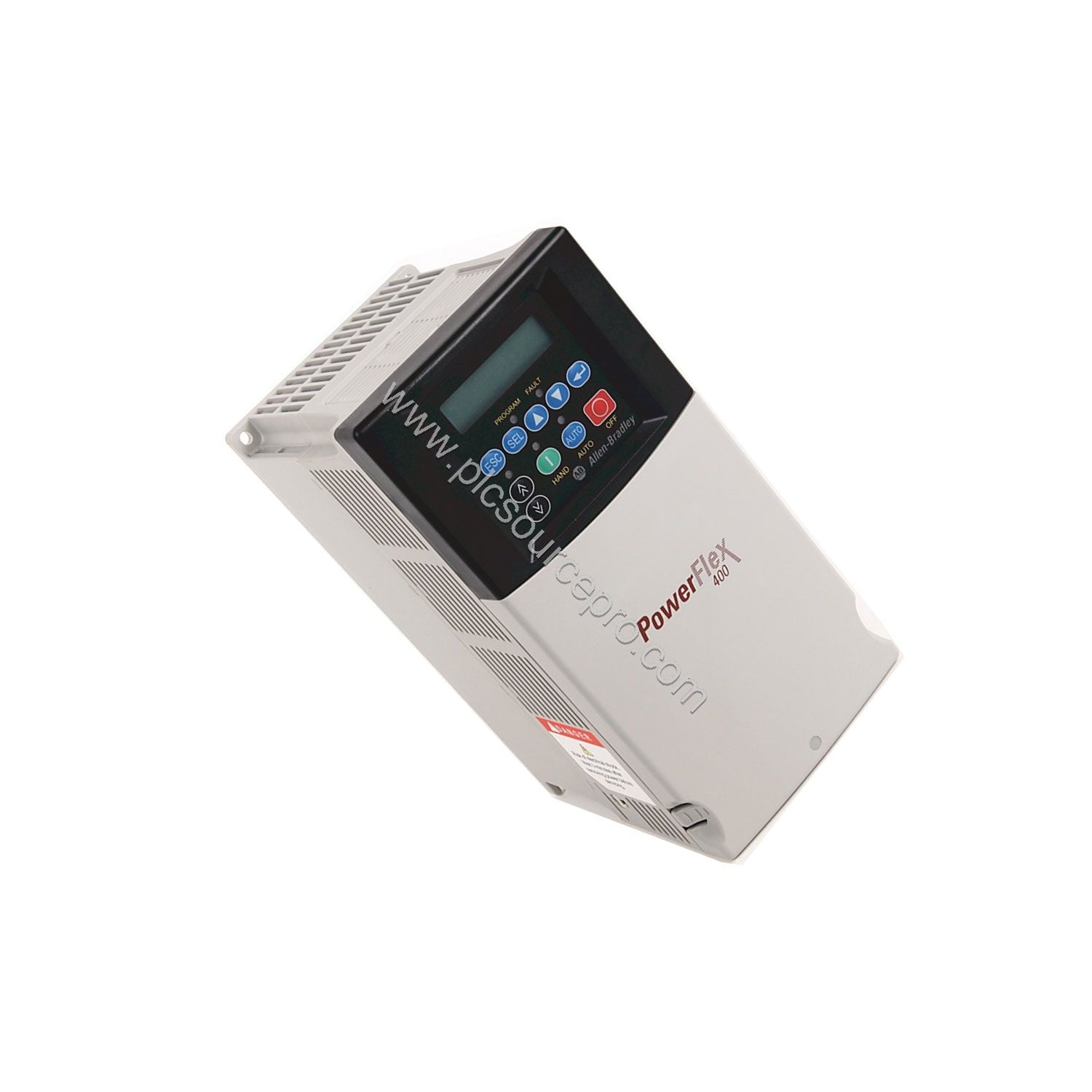

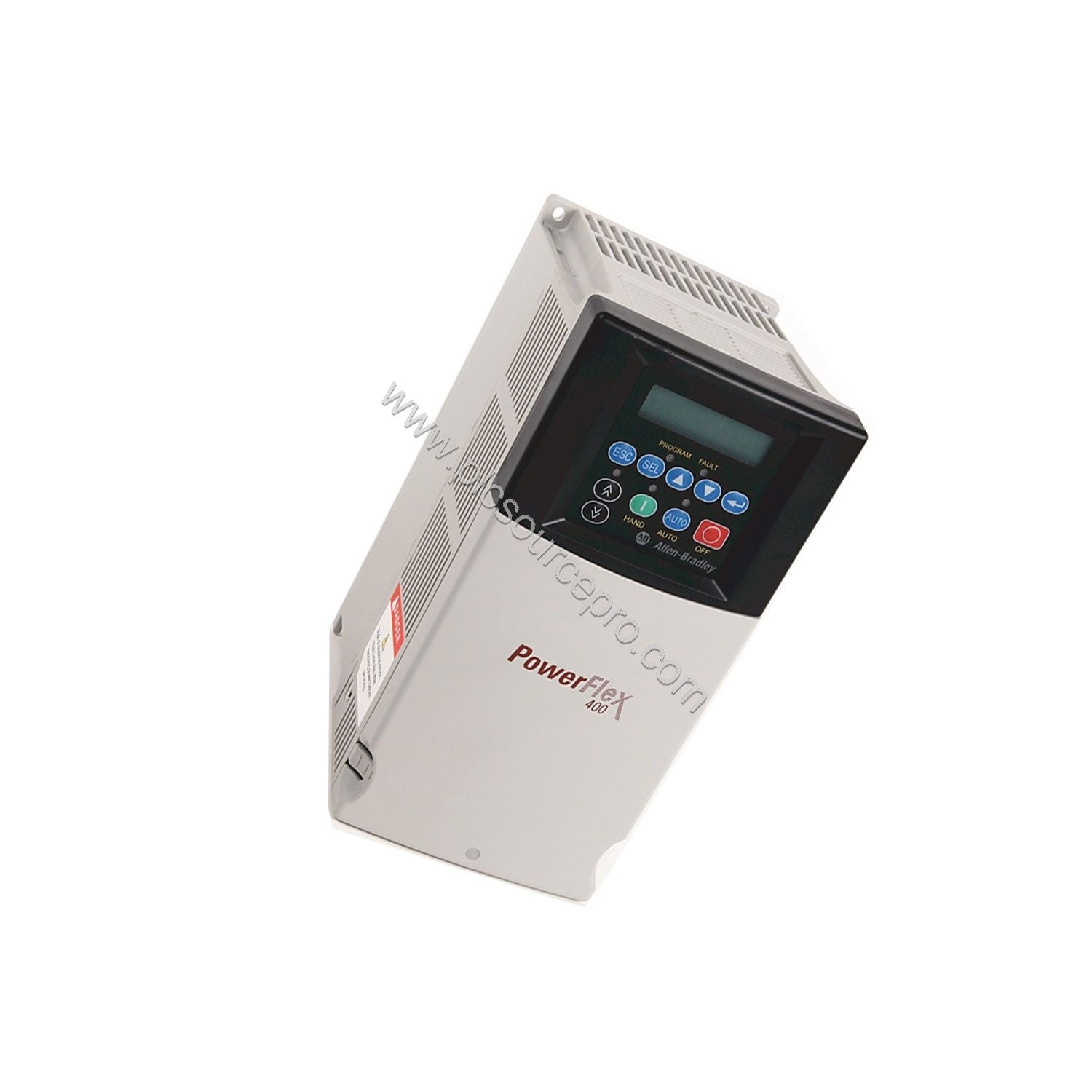

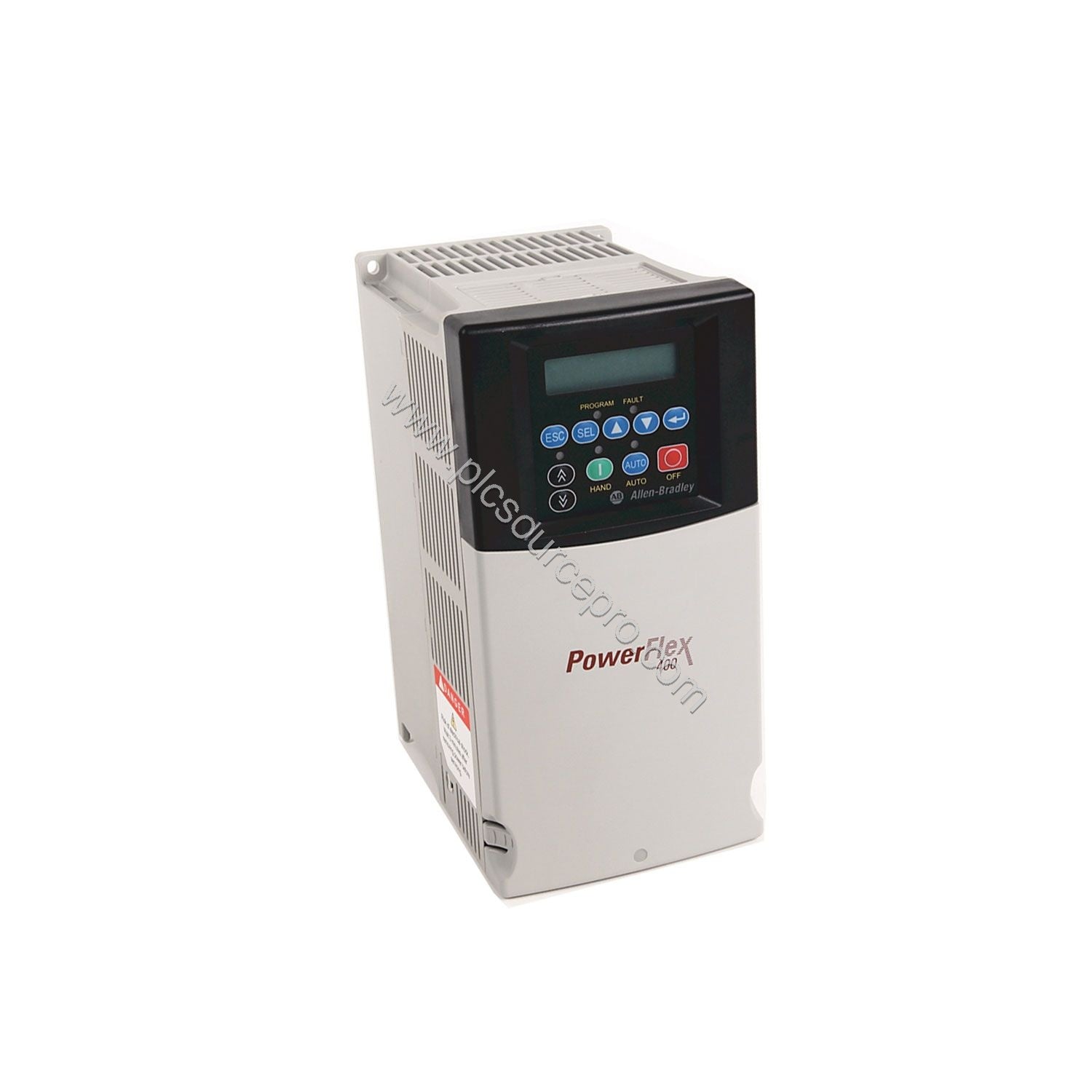

The Allen-Bradley 22C-B024N103 is an adjustable frequency drive from the PowerFlex 400 series, designed specifically for fan and pump control applications. This Allen-Bradley 22C-B024N103 drive offers a cost-effective solution for variable torque speed control, featuring built-in protection and communication options that simplify programming and system integration. As a panel-mount device with an open-type enclosure and IP20 rating, it is ideal for industrial environments where reliable motor speed regulation is required.
Industry Applications
The Allen-Bradley 22C-B024N103 excels in HVAC systems, water treatment plants, and industrial pumping stations. In a typical upgrade scenario, replacing an older fixed-speed starter with the 22C-B024N103 can reduce energy consumption by matching motor speed to actual demand. For example, in a cooling tower fan application, this drive provides smooth acceleration and deceleration, minimizing mechanical stress and extending equipment life. Its programmable parameters allow fine-tuning for specific fan or pump curves, optimizing process efficiency.
Installation & Setup Guidance
Mount the Allen-Bradley 22C-B024N103 on a clean, vertical panel using the provided mounting slots. Ensure adequate clearance for airflow as the IP20 enclosure requires free circulation. Connect three-phase input power (180–265V AC range) to the appropriate terminals, and wire the motor output following the diagram on the drive label. Use the integral RS-485 port or optional DSI modules for programming via a PC or network. The 2-line, 16-character LCD keypad simplifies initial configuration. Set the digital inputs (7 total, selectable sink/source) and analog inputs (2, 10-bit) for your control signals. Verify that branch circuit protection (e.g., 35A Class CC fuse) is installed per local codes.
Compatibility & Integration
The Allen-Bradley 22C-B024N103 integrates seamlessly with Rockwell Automation systems and other controllers via its RS-485 port. It supports DSI communication modules for DeviceNet, EtherNet/IP, and PROFIBUS DP networks, making it suitable for both new installations and retrofit projects. The drive's programmable relay outputs and analog outputs can interface with building management systems or PLCs. For precise speed control, the drive accepts pulse width modulated signals with a carrier frequency range of 2–10 kHz, ensuring smooth motor operation across a wide speed range.
Selection Guide & Purchasing Advice
When selecting the Allen-Bradley 22C-B024N103, verify that your motor's power rating and input voltage match the drive's specifications. Note that detailed technical specifications, including horsepower, amperage, and environmental limits, are available upon request from PLC Source PRO. Ensure your application requires a fan and pump drive—not a general-purpose drive—to fully benefit from the built-in variable torque features. For assistance with configuration or accessory selection, contact the experts at ubest101. They can provide datasheets and application notes to help you integrate this drive into your system smoothly.
