Product Introduction

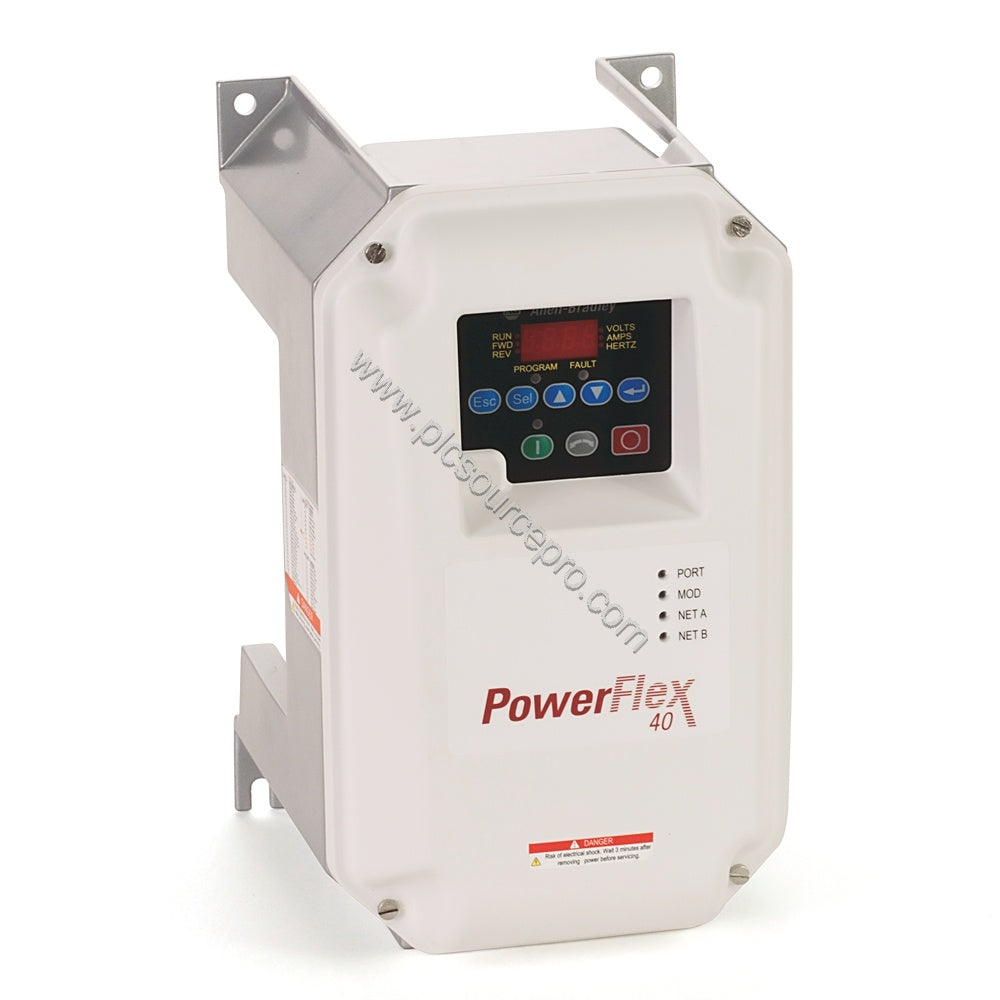

The Allen-Bradley 22B-V5P0H204 is an adjustable frequency drive from the PowerFlex 40 series, designed for precise motor speed and torque control. With 5.0 Amps of output current and 120 Volts AC 1-phase input, this module enables smooth startup and dynamic speed adjustments throughout the application. The built-in keypad simplifies data entry, making the Allen-Bradley 22B-V5P0H204 a user-friendly solution for variable-speed motor applications.
Technical Specifications
Below are the key parameters for the Allen-Bradley 22B-V5P0H204, based on manufacturer data:
| Specification |
Value |
| Manufacturer |
Rockwell Automation |
| Brand |
Allen-Bradley |
| Part Number |
22B-V5P0H204 |
| Product Line |
PowerFlex 40 |
| Voltage |
120 AC Volts |
| Enclosure |
Replacement Plate Drive – IP20, NEMA/UL Type Open (Without Heatsink) |
| HP |
1 Horsepower |
| Amperage |
5.0 A |
| Phase |
1 Phase |
| Filter |
No CE Compliant Filter |
| Communication |
RS-485 |
| Input Type |
Keypad |
Additional environmental ratings include an operating temperature of 0 to 60°C and a non-operating range of -40 to 85°C. The module withstands operating shock of 30.0 g and non-operating shock of 50.0 g, with vibration tolerance of 5 g at 10 to 500 Hz.
Industry Applications
The Allen-Bradley 22B-V5P0H204 is well suited for conveyor systems, pumps, and fans where adjustable speed improves process control and energy efficiency. For example, in material handling, the drive reduces mechanical stress during startup and allows fine-tuning of belt speeds. In pumping applications, it matches motor output to demand, reducing electricity consumption and extending equipment life. The RS-485 communication enables integration with PLCs and SCADA systems for centralized monitoring.
Installation & Setup Guidance
When installing the Allen-Bradley 22B-V5P0H204, ensure the environment meets the specified temperature and humidity ranges (5% to 95% non-condensing). Mount the drive on a flat surface using the provided IP20/NEMA Type Open enclosure. Connect 120 VAC single-phase power to the input terminals and wire the motor to the output. Use the keypad to set parameters such as acceleration/deceleration times and frequency limits. For RS-485 communication, follow standard wiring practices and set the node address via the keypad.
Maintenance & Reliability
Regular inspection of the Allen-Bradley 22B-V5P0H204 includes checking for dust accumulation on the heatsink area (if applicable) and verifying that terminal connections remain tight. The drive's robust shock and vibration tolerance minimizes maintenance needs in harsh industrial environments. Storing the drive in a clean, dry place away from corrosive atmospheres preserves its longevity. By maintaining proper operating conditions, users maximize uptime and reduce total cost of ownership.
