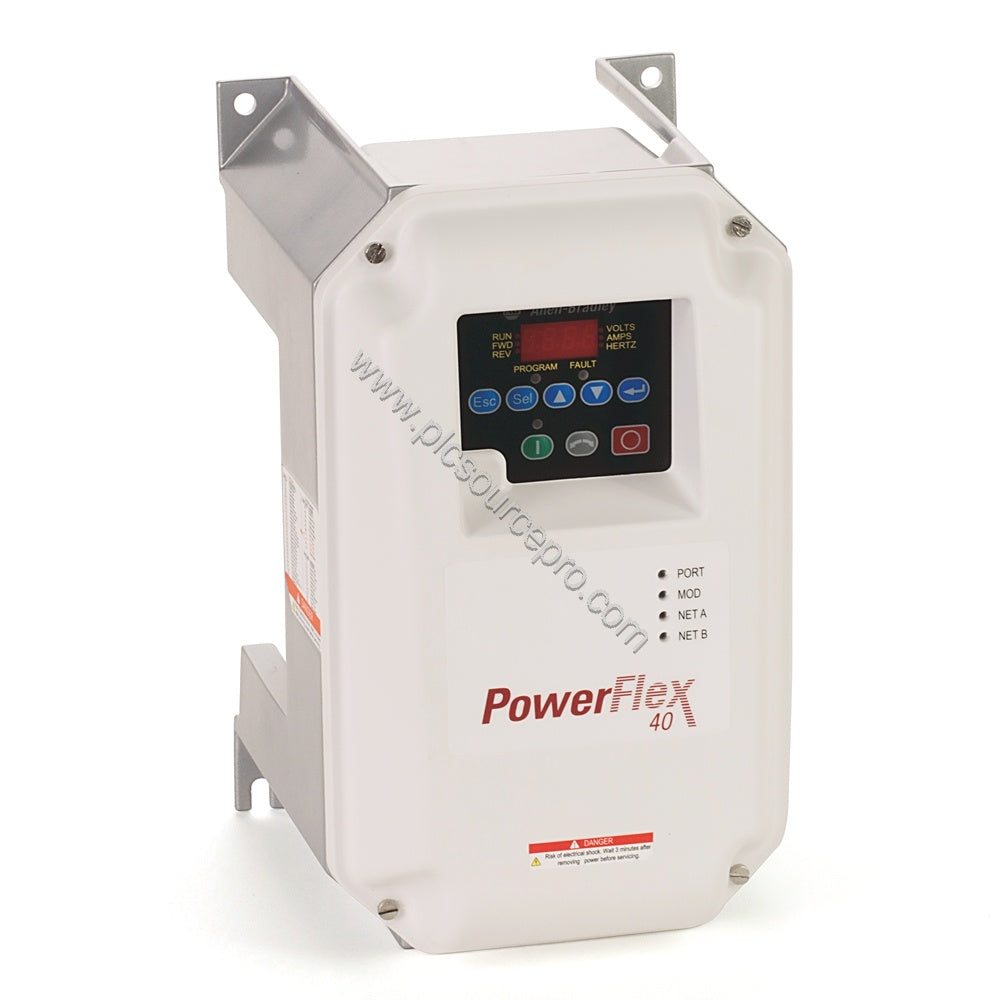

Introduction to the Allen-Bradley 22B-E3P0F104
The Allen-Bradley 22B-E3P0F104 is an adjustable frequency AC drive from the PowerFlex 40 series. Designed as a modern replacement for older drives, this compact unit provides precise motor speed and torque control for industrial automation systems. Its pocket-friendly form factor and flexible mounting options make it ideal for upgrading legacy PLC-controlled machinery.
Part of the Rockwell Automation family, the Allen-Bradley 22B-E3P0F104 integrates seamlessly into existing control networks. With a 600V AC three-phase input and 3.0 A output, it powers 2 HP motors with high efficiency. The drive's Zero Stacking feature allows minimal spacing between units, saving valuable panel space during retrofits.
Technical Specifications Breakdown
| Specification |
Value |
| Manufacturer |
Rockwell Automation |
| Part Number |
22B-E3P0F104 |
| Product Line |
PowerFlex 40 |
| Voltage |
600AC Volts |
| Enclosure |
Flange Mount - IP20, NEMA/UL Type Open |
| Horsepower |
2 HP |
| Amperage |
3.0 A |
| Phase |
3 Phase |
| Filter |
No CE Compliant Filter |
| Communication |
RS-485 |
| Input Type |
Keypad |
The Allen-Bradley 22B-E3P0F104 incorporates a built-in keypad with a 4-digit display and 10 LED indicators for local control. Its RS-485 port allows programming from a PC, simplifying setup and diagnostics. The flange-mounted enclosure provides IP20 protection, guarding against solid particles up to 12mm while reducing overall cabinet size during upgrades.
Industry Applications
The 22B-E3P0F104 from Allen-Bradley excels in fan, conveyor, machine tool, and material handling systems. When upgrading older fixed-speed motors, this drive delivers soft starts and accurate speed regulation, reducing mechanical stress and energy waste. In conveyor applications, the integral PID control maintains constant belt speed despite load variations.
For machine tool retrofits, the drive's sensorless vector control provides high torque at low speeds, enabling precise spindle positioning. The autotune feature adapts the drive to motor characteristics, ensuring optimal performance without manual calibration. These capabilities make the Allen-Bradley 22B-E3P0F104 a versatile choice for modernizing industrial processes.
Compatibility and Integration
The Allen-Bradley 22B-E3P0F104 communicates via RS-485 using the DSI protocol, allowing integration with Allen-Bradley PLCs and third-party controllers. For enhanced connectivity, optional DeviceNet, ControlNet, EtherNet/IP, PROFIBUS DP, or LonWorks cards can be installed. This flexibility supports both point-to-point and network-based control in replacement scenarios.
The drive mounts on a DIN rail or panel, and its compact B frame size fits standard enclosures. The Zero Stacking feature allows drives to be placed side-by-side without spacers, maximizing density in retrofit panels. For purchasing or support, contact ubest101 to ensure compatibility with your existing system.
Maintenance and Reliability
Designed for long-term reliability, the Allen-Bradley 22B-E3P0F104 includes built-in overload protection, a removable MOV, and adjustable PWM frequency for quiet operation. Regular inspection of the flange-mounted enclosure and cooling channels every 6 months prevents dust accumulation. The integral brake transistor enables dynamic braking without external resistors, reducing component count and maintenance.
By replacing older drives with the 22B-E3P0F104, users gain access to advanced features like autotune, step logic, and timer/counter functions. These reduce the need for separate control components, lowering maintenance costs and simplifying troubleshooting. The drive's IP20 enclosure requires no special tools for access, making routine checks straightforward.
