Product Overview

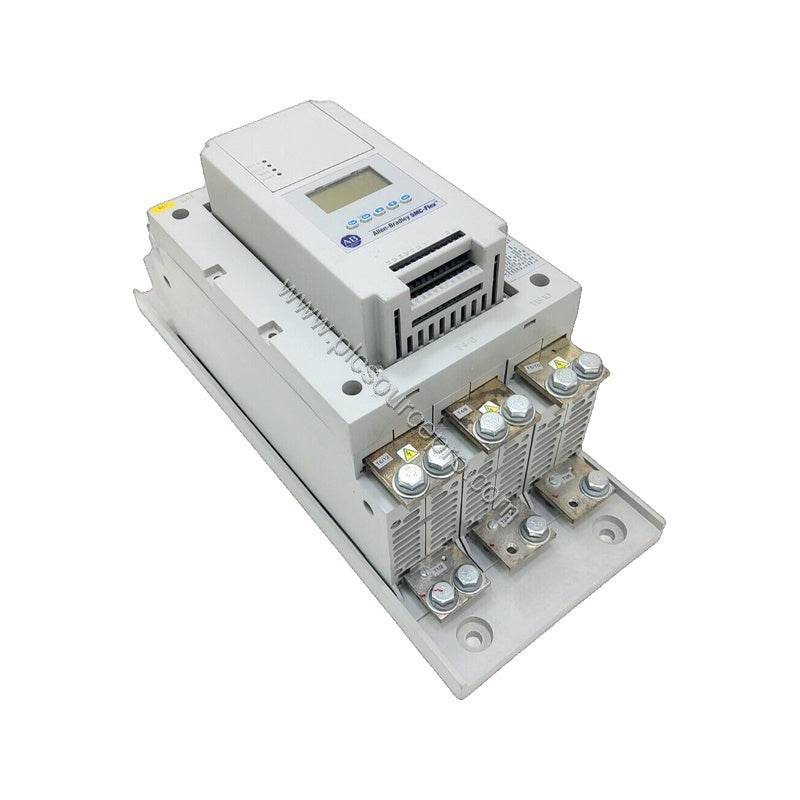

The Allen-Bradley 150-F201FAD is a smart motor controller from the SMC-Flex series, engineered to start three-phase squirrel cage induction motors and other motor types such as wye-delta motors. This industrial automation module combines robust construction with advanced control features, making it a dependable choice for demanding applications.
With a controller rating of 201 A and 150 Hp at 460V AC, the 150-F201FAD handles heavy loads efficiently. Its input line voltage of 230V AC, 3-phase, 50 and 60 Hz ensures compatibility with global power systems.
Key Features & Benefits
-
7 Operating Modes: Includes built-in SCR bypass, LCD keypad programming, and programmable auxiliary contacts for flexible control.
-
Braking Control Option: Enhances stopping performance for improved process accuracy.
-
IP65 (Type 4/12) Enclosure: Protects against dust, water jets, and external particles, ensuring reliable operation in harsh environments.
-
Built-in Protection: Short-circuit protection, shock and vibration resistance, plus metering and alarm contacts for comprehensive monitoring.
-
Robust Design: Power poles use a heatsink thyristor modular design; control modules use thermoset/thermoplastic moldings; metal parts are copper, painted steel, and plated brass.
Technical Specifications
| Specification |
Value |
| Manufacturer |
Allen-Bradley |
| Category |
Drives |
| Product Line |
SMC-Flex |
| Part Number |
150-F201FAD |
| Weight |
225.00 lbs (102.06 kg) |
| Bulletin Number |
Solid State Controller |
| Enclosure Type |
IP65 (Type 4/12) |
| Controller Rating |
201 A, 150 Hp @ 460V AC |
| Input Line Voltage |
230V AC, 3-phase, 50 and 60 Hz |
| Control Voltage |
100-240V AC (5-480 A units) |
| Rated Voltage |
230V AC |
Applications
The 150-F201FAD is ideal for conveyor systems, pumps, fans, and compressors where controlled starting reduces mechanical stress and extends equipment life. Its IP65 enclosure suits food processing, automotive, and material handling environments. For retrofit projects, this controller replaces older electromechanical starters, providing smoother acceleration and better protection.
Installation & Setup
Mount the unit securely in a clean, dry location within the specified temperature range of -5 to 40 degrees Celsius. Ensure adequate clearance for ventilation and cable routing. Wire the input line voltage (230V AC, 3-phase) and control voltage (100-240V AC) per the wiring diagram. Use the LCD keypad to configure operating modes and auxiliary contacts. Verify all connections before energizing.
Maintenance & Reliability
Inspect the enclosure seals and terminals periodically to maintain IP65 integrity. Check for dust accumulation on heatsinks and ensure proper airflow. The thyristor design offers long service life, but verify the controller's performance through the metering and alarm functions. Operating within the rated altitude of 2,000 meters and pollution degree 2 ensures consistent reliability.
Selection & Purchasing Advice
Before purchasing, confirm your motor's horsepower and voltage requirements match the 150-F201FAD's rating (201 A, 150 Hp @ 460V AC). Verify the input line voltage is compatible with your facility (230V AC, 3-phase, 50/60 Hz). For additional assistance, PLC Source PRO offers genuine Allen-Bradley spares and expert guidance.
