Product Overview

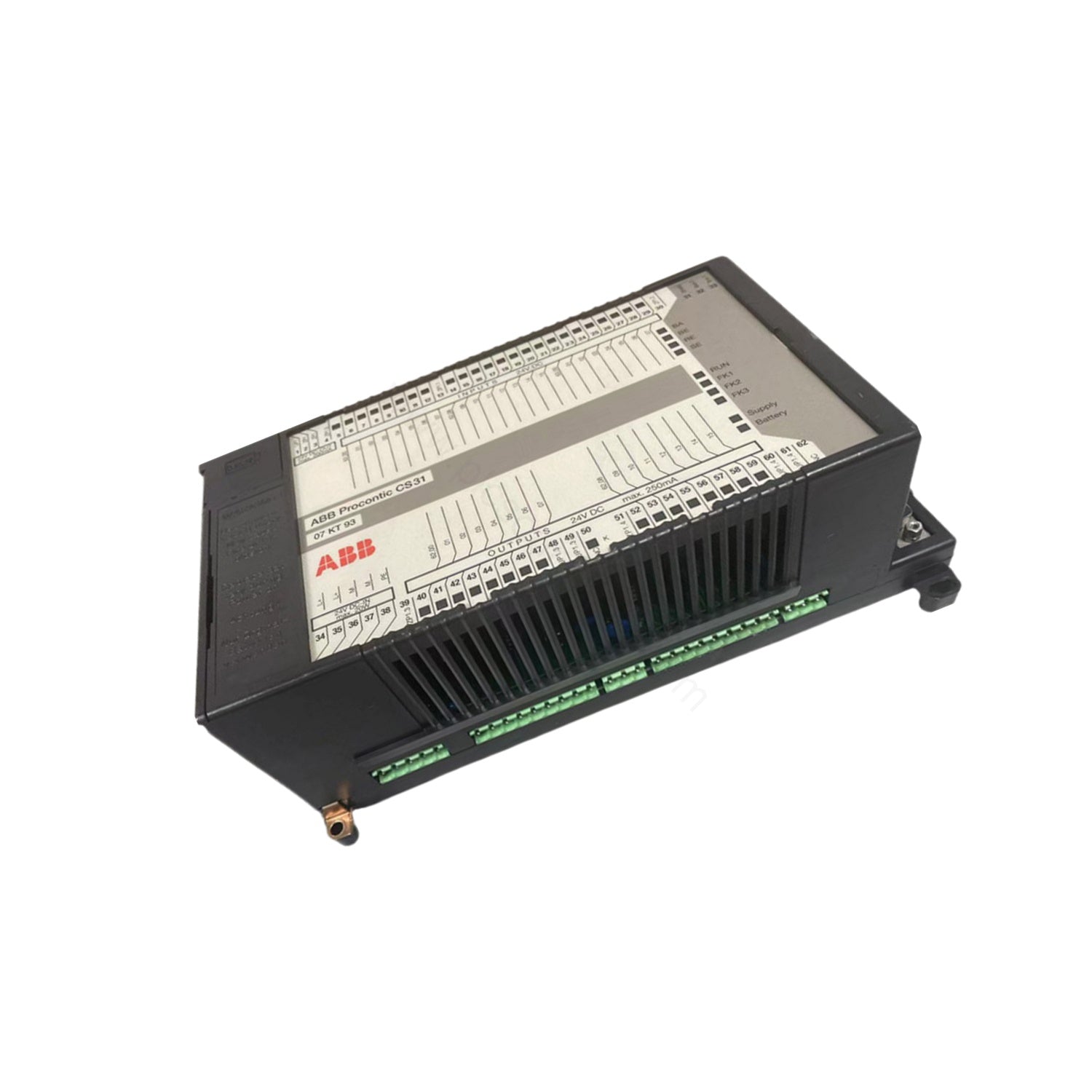

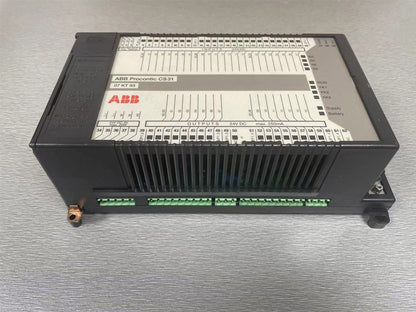

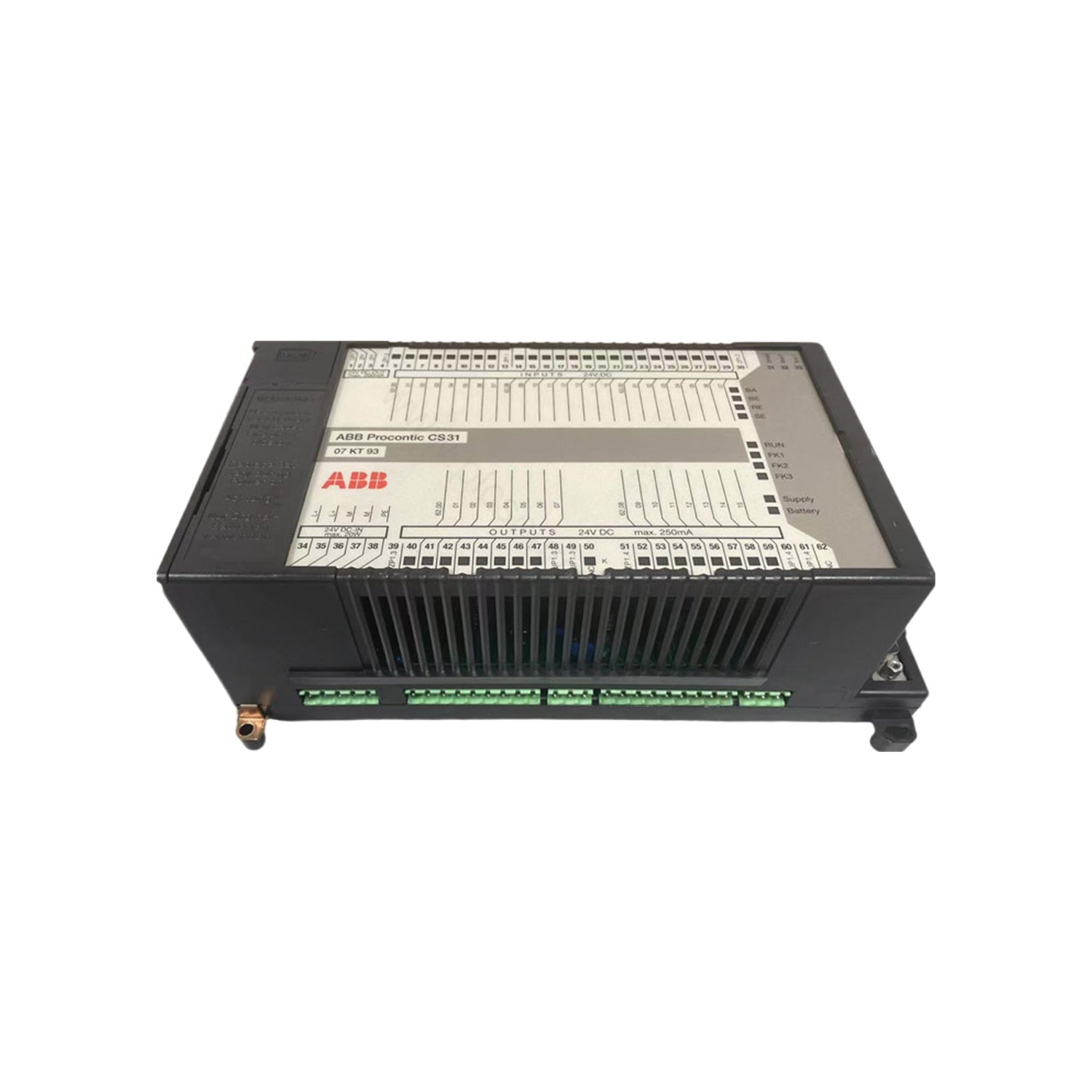

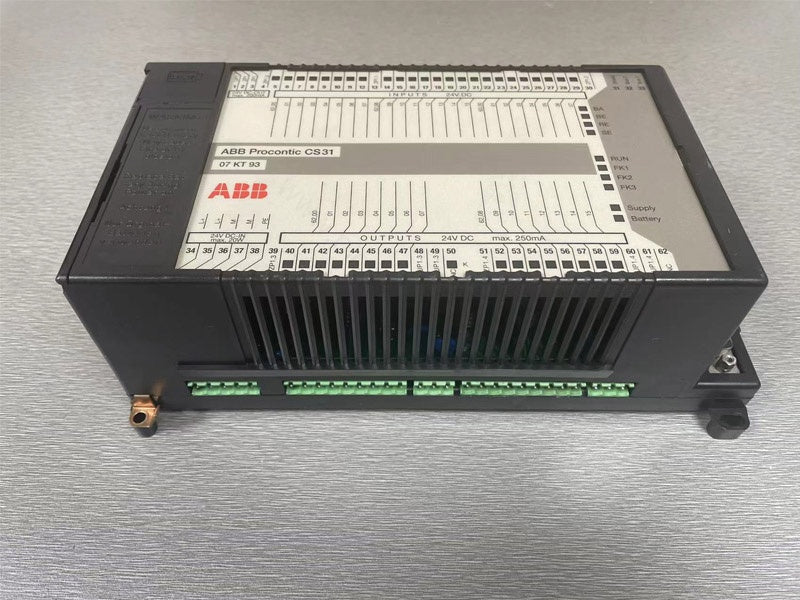

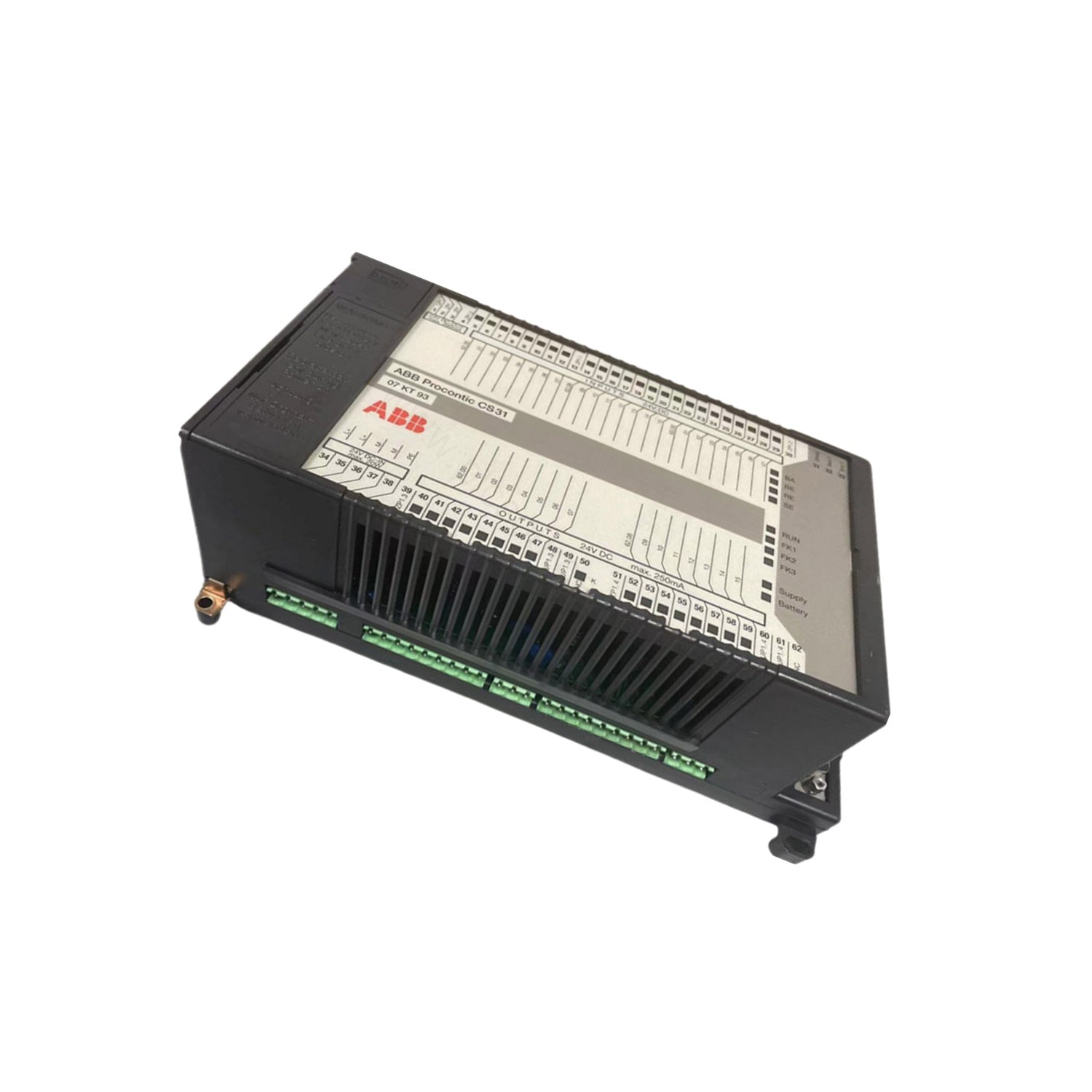

The ABB 07KT93 Central Processing Unit provides reliable control in industrial automation systems. Its built-in high-speed counter operates independently of the user program, ensuring quick response to external signals. The counter counts 0->1 edges at terminal 02 (E 62,00) with a maximum counting frequency of 10 kHz. This design reduces latency and improves system accuracy in time-critical applications.
Enabling and disabling the counting procedure is flexible via internal variable A 63,14 or external signal at terminal 03 (E 62,01). When using internal control, variable A 63,13 enables counting (1) or disables it (0). For external control, a signal 1 at terminal 03 enables counting, while signal 0 disables it. Note that the dead time can range from 0 to 1.5 ms during external control. The counter can be set programmatically using internal word variable AW 06,15 and triggered by internal variable A 63,15. If A 63,15 remains active across multiple cycles, the processor sets the counter at the end of each program cycle, while pulses continue to be counted at terminal 02 during the cycle.
Installation and Setup Guidance
When integrating the ABB 07KT93 into your control system, pay attention to terminal connections. Terminal 02 (E 62,00) receives the high-speed pulse input. Terminal 03 (E 62,01) can be used as an external enable input if the internal variable A 63,14 is set to 1. The zero-crossing output is available at terminal 36 (A 62,00) only when A 63,14 = 1. Ensure proper wiring to avoid noise interference on these high-speed lines.
To configure the counter in your user program, use the internal variable A 63,14 to select between internal and external enable. Set A 63,13 accordingly for internal enable. Use A 63,15 to load the counter with the value from AW 06,15. Reading the counter content is done via internal variable EW 06,15. For fast input of digital signals with a delay of less than 0.02 ms, terminal 02 provides internal variable E 63,14 and terminal 03 provides E 63,15.
System Integration
The ABB 07KT93 is designed as the central processing unit for ABB's basic unit range. It directly manages the high-speed counter and digital I/O with minimal programming overhead. The module integrates seamlessly with other ABB automation components and is compatible with standard programming environments that support internal variables like A 63,14, AW 06,15, and EW 06,15. Use the zero-crossing message (E 63,13) to trigger events when the counter transitions from -1 to 0. This feature enhances precision in counting and position sensing applications.
Common Operational Issues and Troubleshooting
One common issue is improper enabling of the counter. Verify that the internal variable A 63,14 is set correctly for your application. If using external enable (A 63,14 = 1), ensure terminal 03 receives a stable signal 1 to enable counting. Intermittent signals may cause the counter to stop unexpectedly.
Another potential problem is the dead time of 0 to 1.5 ms when using external control. Plan your timing margins accordingly to avoid missing pulses. The zero-crossing output at terminal 36 has a similar reaction time. If the output does not trigger as expected, check that A 63,14 = 1 and that the counter content changes from -1 to 0. Also note that direct control of output A 62,00 from the user program is disabled when A 63,14 = 1.
For applications requiring fast digital input, use the dedicated internal variables E 63,14 and E 63,15, which provide response times under 0.02 ms. This is especially useful for capturing short-duration signals. If the counter value does not load correctly, confirm that A 63,15 is pulsed appropriately and that AW 06,15 contains the desired value. Repeated activation of A 63,15 across multiple cycles will set the counter multiple times, which may lead to incorrect counting. Ensure your program logic handles this correctly.
