Product Introduction

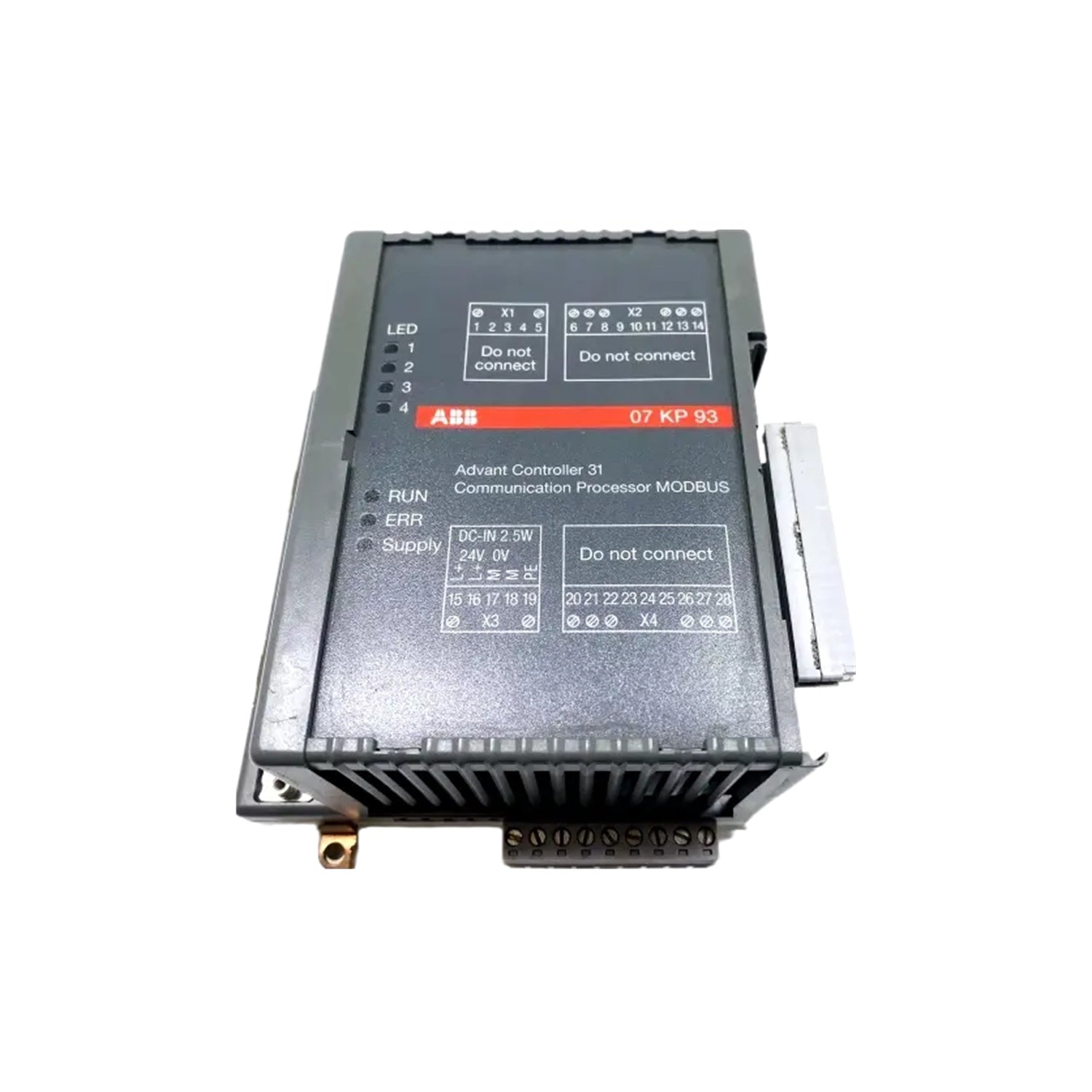

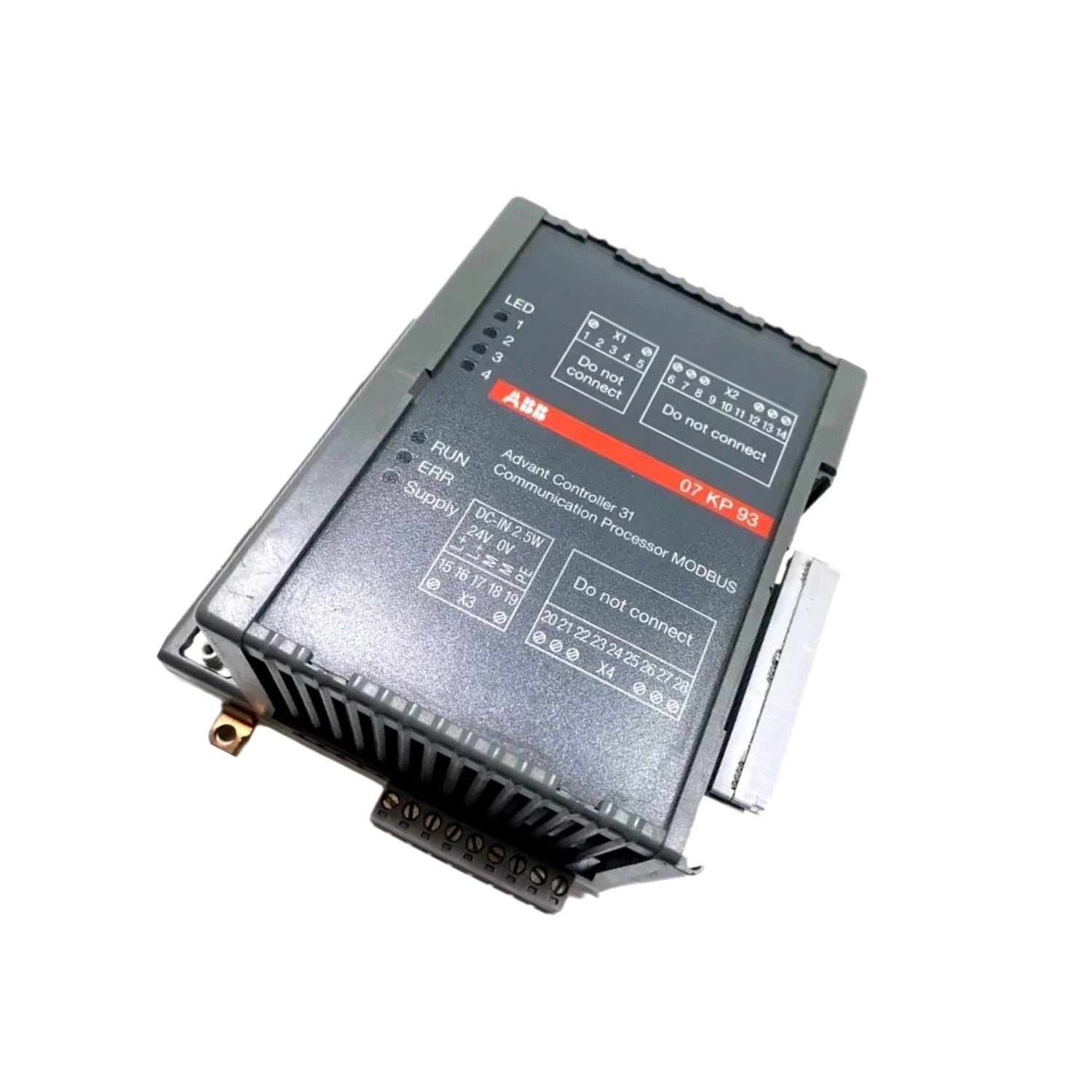

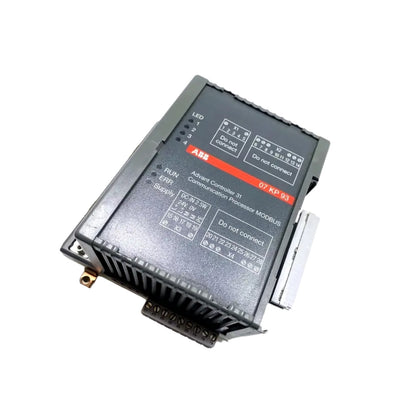

The ABB 07KP93 communication module (GJR5253200R1161) is a high-performance interface solution designed for the Advant Controller 31 system. As a dedicated spare part, this module enables reliable data exchange using the MODBUS RTU protocol. With two serial interfaces supporting EIA RS-232 or RS-485, the ABB 07KP93 ensures seamless connectivity for external devices in industrial automation environments.
Technical Specifications
| Parameter |
Value |
| Number of Serial Interfaces |
2 |
| Number of Parallel Interfaces |
1 (for networking with AC31 basic unit) |
| Rated Supply Voltage |
24 V DC |
| Power Dissipation |
Typ. 2.5 W (max. 5 W) |
| Max. Current Consumption (rated voltage) |
210 mA |
| Max. Current Consumption (30 V supply) |
170 mA |
| Protection Against Reverse Connection |
Yes |
| Interface Standard |
EIA RS-232 or EIA RS-485 |
| Electrical Isolation |
Yes (interfaces isolated from each other and from rest of unit) |
| LED Indicators |
1 green Supply, 1 red ERR, 1 green RUN, 4 yellow LED1-LED4 |
| Dimensions (WxHxD) |
140 x 120 x 85 mm |
| Weight |
450 g |
Compatibility and Integration
The ABB 07KP93 is engineered for seamless integration with the Advant Controller 31 system. It communicates using MODBUS RTU protocol via its two serial ports (COM3 and COM4). The module supports master and slave operating modes, allowing flexible network configurations. It is also compatible with the ABB Procontic T200 system and works with software 907 KP 93 for programming.
Installation Guide
Mount the ABB 07KP93 on a DIN rail per DIN EN 50022-35 (15 mm deep). The module is installed centrally between the upper and lower edges. Alternatively, use four M4 screws for fastening. Connect wiring via removable terminal blocks with screw-type terminals (max. 2.5 mm² conductor cross section). Ensure the supply voltage is 24 V DC and observe polarity (reverse connection protection is built-in). The scope of delivery includes one 5-pole terminal block (5.08 mm grid) and a cable for earth connection.
Selection Guide and Purchasing Advice
When selecting the ABB 07KP93 for your upgrade or replacement project, verify compatibility with your existing Advant Controller 31 basic unit. This module is a genuine spare part, ensuring long-term reliability. For bulk orders or technical support, rely on UBEST Automation (ubest101) as your trusted industrial automation parts supplier. Check stock availability at our central European warehouse for fast delivery.
