Product Introduction

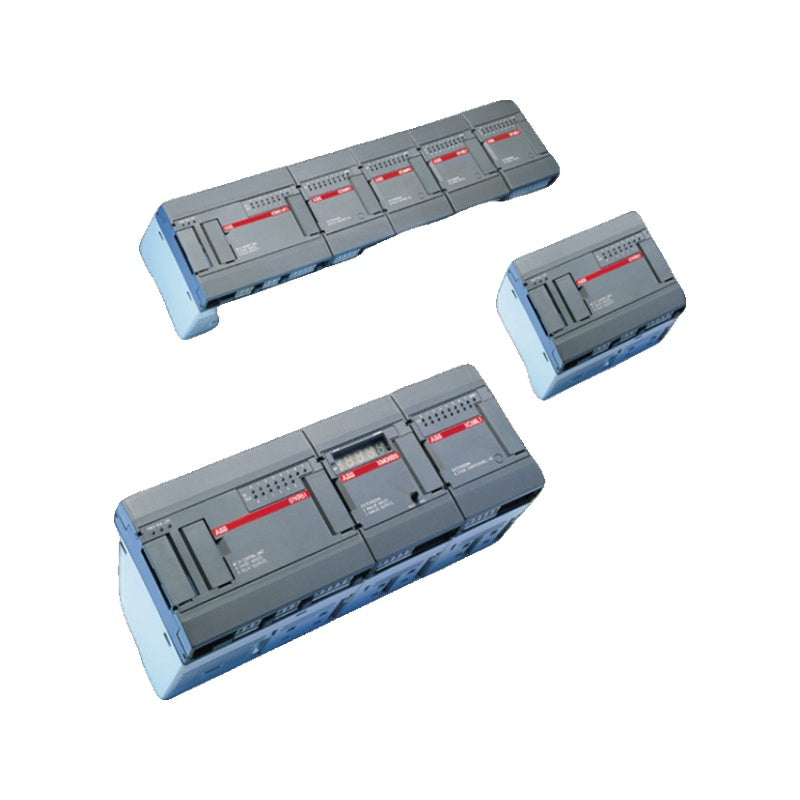

When upgrading legacy control systems, the ABB 07 KT 96 Advant Controller Basic Unit provides a reliable foundation. This module offers 24 digital inputs and 16 digital outputs, with integrated CS31 fieldbus communication for seamless integration. Part of the Advant family, the 07 KT 96 is designed for cyclic and time-controlled multitasking execution, supporting up to 20 tasks. Its robust performance ensures dependable operation in demanding industrial environments.
Technical Specifications
| Parameter |
Value |
| Digital Inputs (Integral) |
24 |
| Digital Outputs (Integral) |
14 |
| Maximum Digital I/O |
1032 |
| Analog Inputs (Integral) |
4 |
| Analog Outputs (Integral) |
8 |
| Maximum Analog I/O |
224 AI / 224 AO |
| Program Memory |
480 kByte Flash EPROM + RAM |
| Data Memory |
8192 bits, 8192 words, 1024 double words |
| Variables |
256 k (16 k retain) |
| Cycle Time (1 kB) |
0.22 ms |
| Processing Time (1 kB) |
0.3 ms (65% bits, 35% words) |
| Communication |
CS31 Fieldbus |
| Programming System |
907AC1131 |
| Fast Counters |
1-2 (max 50 kHz) |
| Special Functions |
MODBUS, PI/PID, ASCII, 32-bit & floating point |
| Real-Time Clock |
Included |
| Battery Backup |
Exchangeable |
| Protection |
Password protected user program |
| Mounting |
DIN rail compatible |
| Order Number |
GJR5 2529 00 R |
Installation & Setup Guidance
Mount the ABB 07 KT 96 on a DIN rail using the integrated clips. The withdrawable terminal blocks feature screw terminals for secure wiring of field devices. Connect the CS31 fieldbus via the dedicated port. Install the battery for data retention and set the real-time clock during initial configuration. Use the 907AC1131 programming software to load the control logic via Smart Media Card.
Compatibility & Integration
The 07 KT 96 integrates seamlessly with other Advant controllers and CS31-compatible devices. It supports MODBUS RTU/ASCII protocols for connection to SCADA or HMI systems. With up to 1032 digital I/O points and 224 analog channels, this module can serve as the core of a medium-sized automation system. It can replace older ABB 07 KT models without significant rewiring.
Selection Guide & Purchasing Advice
Before purchasing, verify that your system requires the 07 KT 96's specific I/O configuration and memory capacity. The unit includes 4 analog inputs and 8 analog outputs, suitable for process control applications. For genuine parts and expert support, consult UBEST Automation. Ensure you order the correct variant (07 KT 96) and consider purchasing a spare battery and Smart Media Card for maintenance. For inquiries, contact us at ubest101.
