Product Introduction

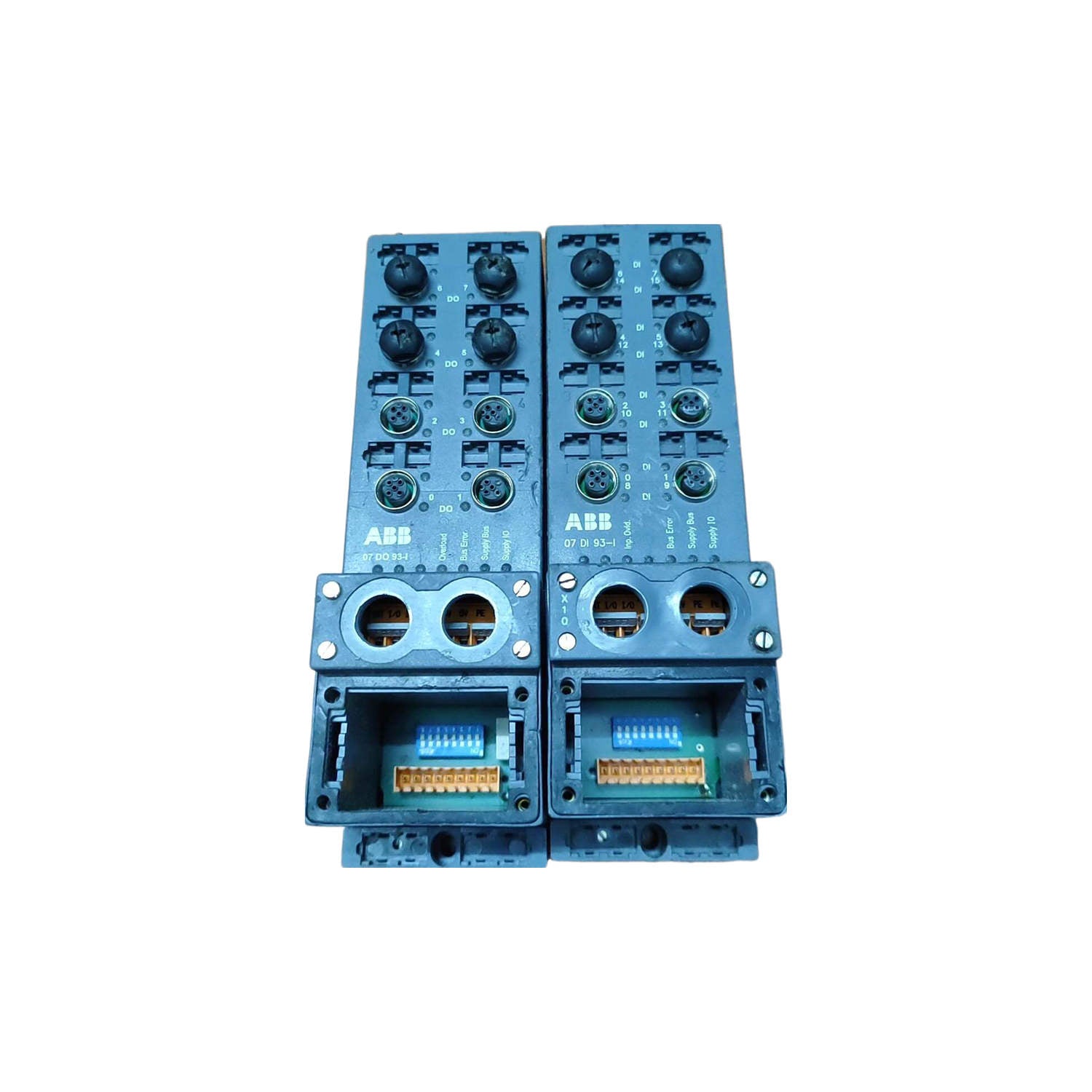

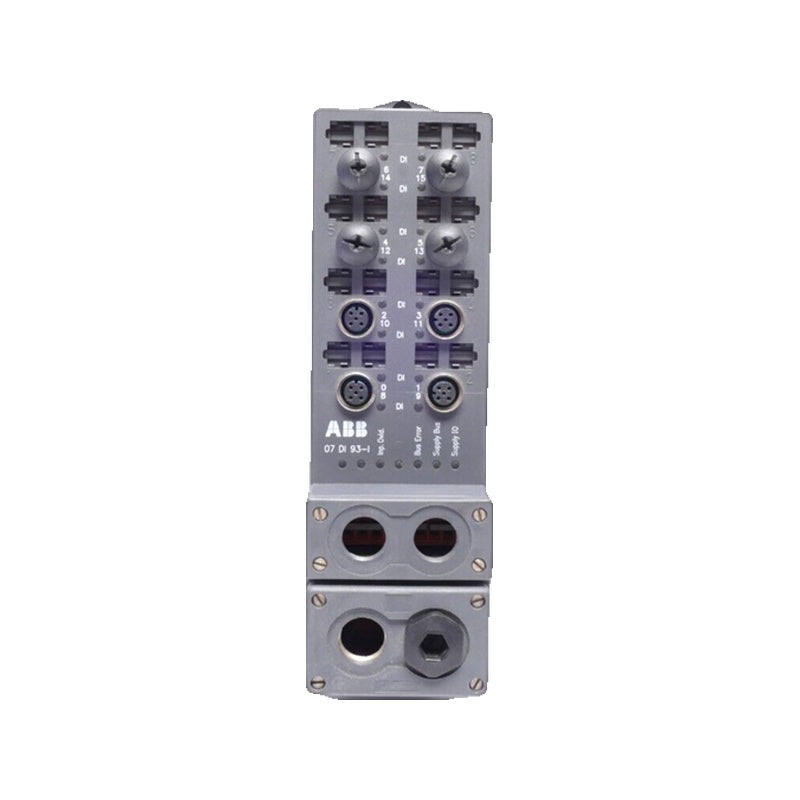

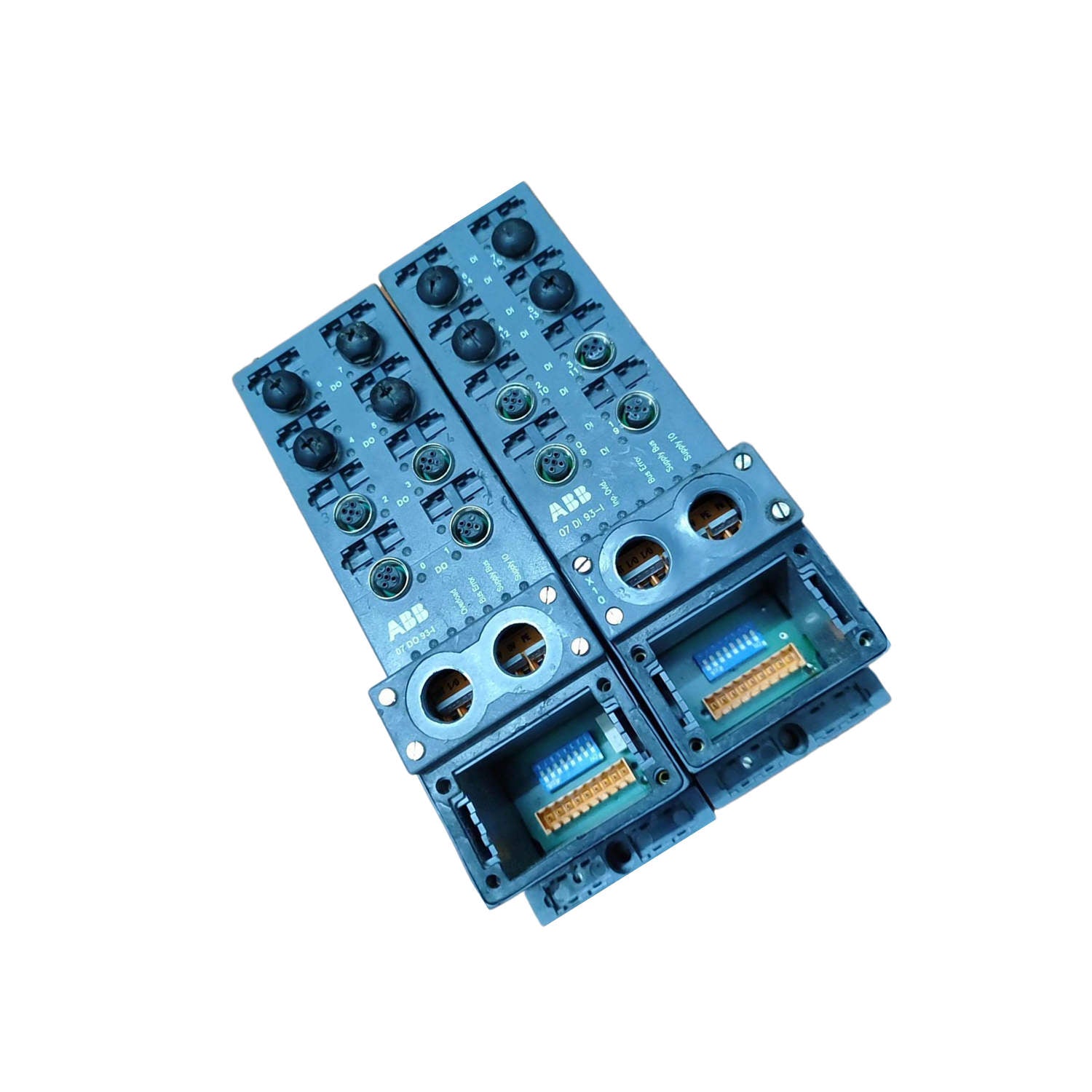

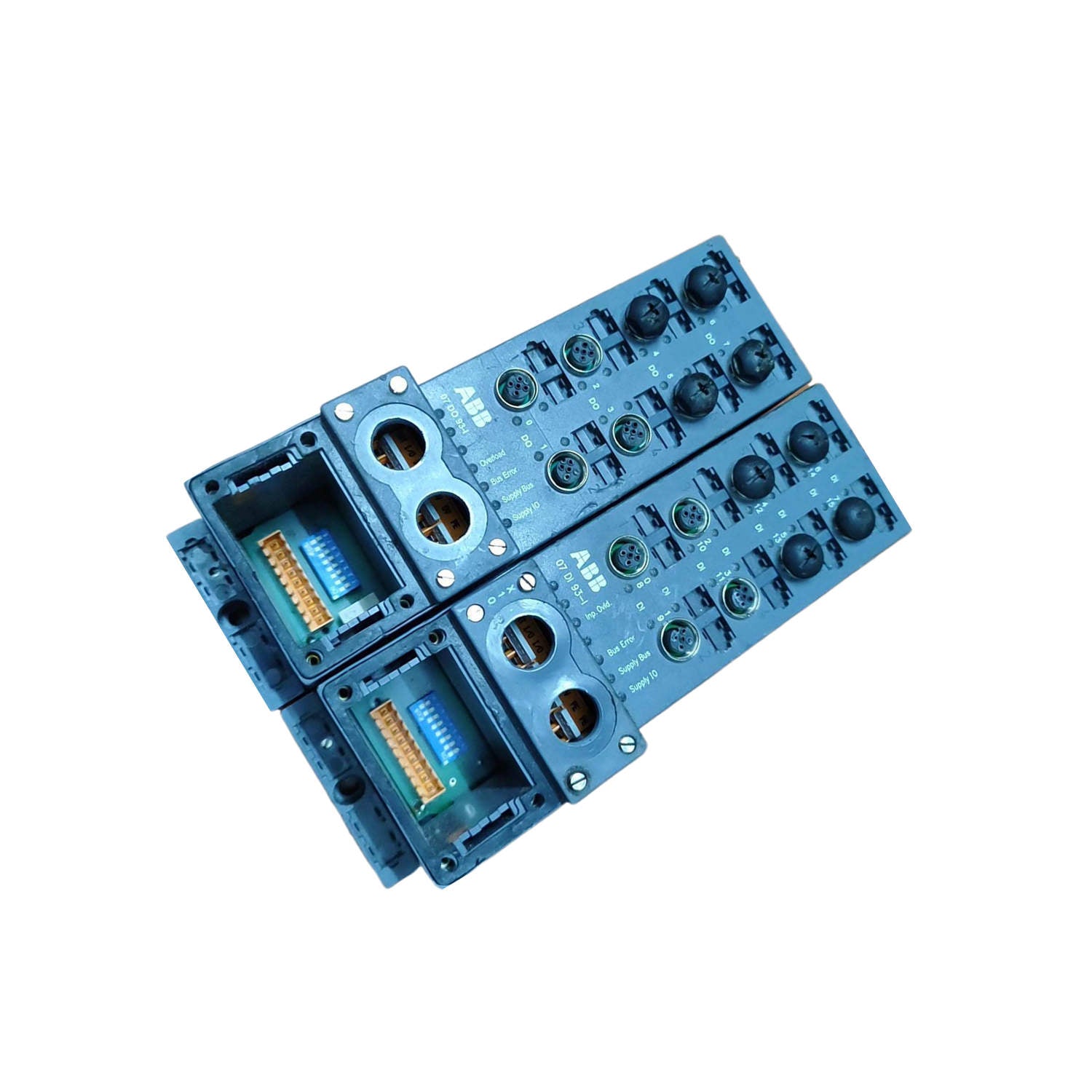

When industrial environments challenge equipment with dust, moisture, and vibration, the ABB 07 DI 93-I provides a robust solution. This digital input module, with terminals rated at 1.5 mm², withstands IP67-rated conditions while delivering reliable 24 V DC signal acquisition. Its design prioritizes fault tolerance and diagnosis, making it ideal for applications where downtime is costly.
Technical Specifications
| Parameter |
Value |
| Number of inputs |
16 |
| Rated supply voltage |
24 V DC |
| Current consumption (no loads) |
max. 80 mA |
| Signal level '1' |
11 – 30 V |
| Signal level '0' |
0 – 5 V |
| Signal input current |
approx. 8 mA |
| Input signal delay |
approx. 1 ms |
| Short-circuit protection |
PTC, IK > 1.6 A |
| Bus interface |
EIA RS-485 (CS31 system bus) |
| Degree of protection |
IP67 |
| Dimensions (L×W×H) |
220 × 63.0 × 70.5 mm |
| Weight |
approx. 470 g |
Industry Applications
The ABB 07 DI 93-I excels in factory automation, process control, and material handling. Its IP67 enclosure suits washdown areas, food processing, and outdoor installations. Each pair of inputs uses a dedicated M12 connector, enabling fast swapping without disturbing other channels. The module’s sensor supply with short-circuit protection reduces maintenance calls.
Integration and Compatibility
This digital input module operates on the CS31 system bus, using EIA RS-485 transmission. It connects to ABB Advant Controller 31 systems and other compatible PLCs. The bus line loops through each module via PG9 glands, simplifying daisy-chain wiring. Electrical isolation between the bus and I/O circuitry prevents ground loops.
Selection Guide
Before ordering verify your system’s bus protocol and connector types. For part number 07 DI 93-I, ensure your controller supports CS31. UBEST Automation stocks this module and offers technical support to confirm compatibility. Place your order with confidence from a trusted supplier of industrial automation spares.
