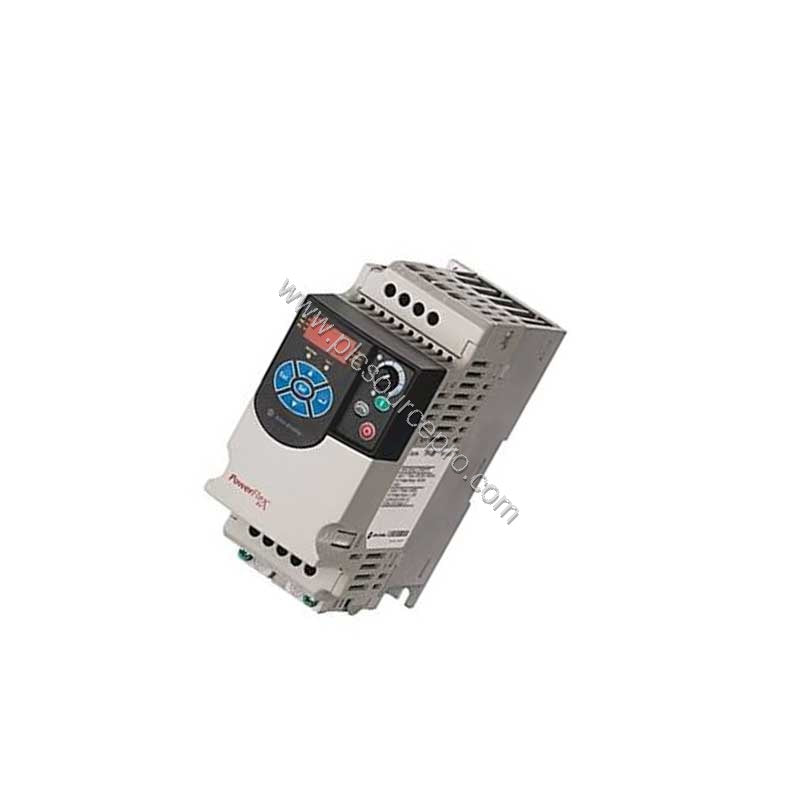

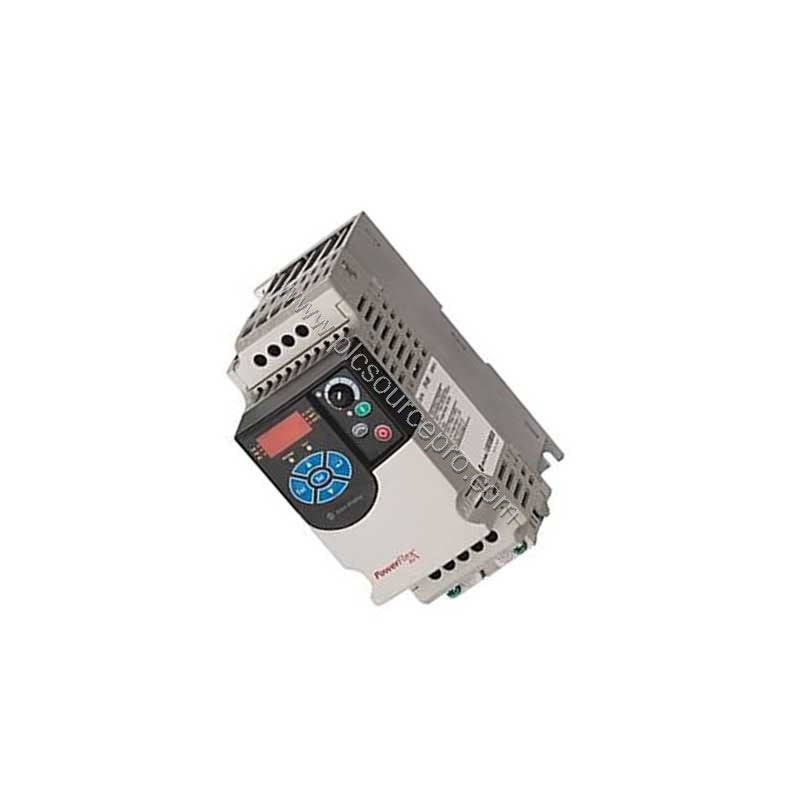

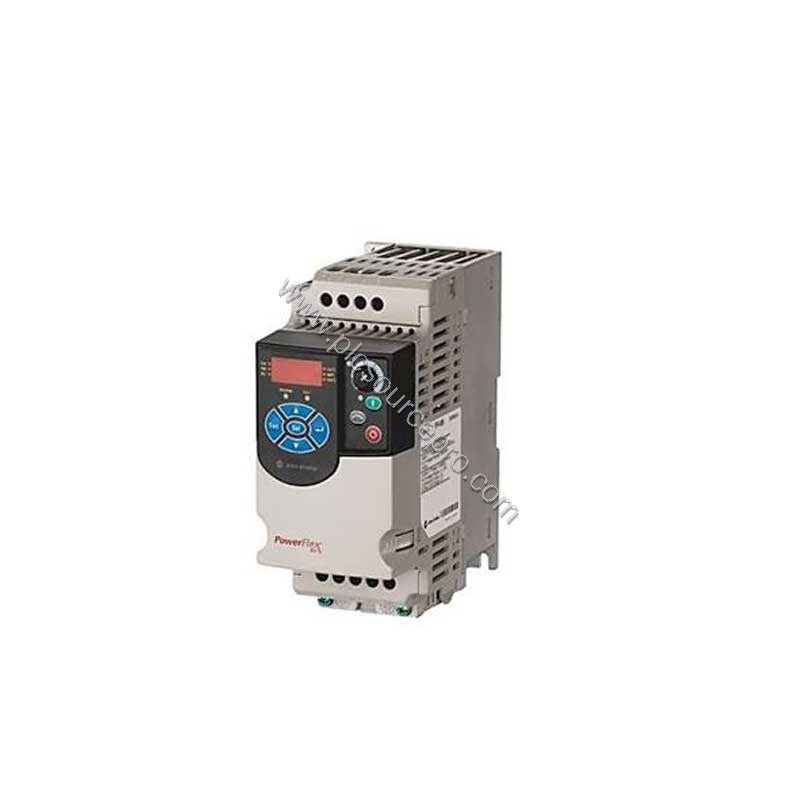

The Allen-Bradley 22F-D024N114 is a low-voltage AC drive from the PowerFlex 4M series designed for precise, energy-efficient motor speed control. With a compact Size C frame and IP20 open enclosure, this drive integrates an internal 'S Type' EMC filter and a standard IGBT brake. Its three-phase input accepts 380–480 VAC (±10%) and delivers a rated output of 24 A, 11 kW (15 HP). The 22F-D024N114 supports open-loop speed regulation, featuring a 4-digit display, local/remote keypad, and 10 LED indicators. Built for demanding environments, it withstands operating temperatures from -10 to 40 °C and offers reliable performance in industrial automation systems.
Key Specifications
| Parameter |
Value |
| Catalog Number |
22F-D024N114 |
| Manufacturer |
Rockwell Automation / Allen-Bradley |
| Product Series |
PowerFlex 4M |
| Input Voltage |
3-Phase, 380–480 VAC (±10%) |
| Output Voltage |
0–460 VAC (3-Phase) |
| Output Current |
24 A |
| Power Rating |
11 kW / 15 HP |
| Enclosure Type |
Open / IP20 |
| Filter |
Internal CE-Compliant EMC Filter |
| Communication |
RS-485 Port |
| Frame Size |
Size C |
| Operating Temperature |
-10 to 40 °C |
| Non-Operating Temperature |
-40 to 95 °C |
| Maximum Altitude |
1000 m (no derating) |
| Humidity |
0–95% non-condensing |
| Vibration |
1 g peak at 5–2000 Hz |
| Shock |
15 g peak for 11 ms |
Technical Specifications Breakdown
The 22F-D024N114 delivers 24 A continuous output at 480 V, providing 11 kW (15 HP) of power. Its 21.7 kVA input capability ensures robust operation even under fluctuating line conditions. The drive supports 'volts per Hertz' motor control, ideal for fans, pumps, and conveyor applications. The internal IGBT brake enables fast deceleration without external components. With an RS-485 port, it integrates easily into PLC and SCADA networks. The IP20 enclosure allows panel mounting in clean, dry environments, while the CE-compliant EMC filter minimizes electrical noise for reliable system performance.
Industry Applications
This Allen-Bradley 22F-D024N114 drive excels in open-loop speed regulation for pumps, fans, conveyors, and mixers. In water treatment facilities, it provides energy savings by matching motor speed to flow demand. In packaging lines, the drive's precise torque control reduces product damage. For material handling, its built-in IGBT brake ensures accurate positioning. The RS-485 communication enables remote monitoring, lowering maintenance costs and extending equipment life. Upgrading to this model from older drives reduces energy consumption and improves system reliability.
Installation & Setup Guidance
Mount the 22F-D024N114 in a clean, vibration-free cabinet with adequate airflow. Ensure ambient temperature stays between -10 and 40 °C. Use shielded twisted-pair cables for RS-485 communication to minimize interference. Connect three-phase power to L1, L2, L3 terminals and motor leads to U, V, W. Set the motor parameters via the 4-digit display or keypad. The built-in potentiometer allows simple speed adjustment. For emergency stops, integrate an external safety contactor. Follow the manual's wiring diagrams for proper I/O connection: 5 digital inputs (24 VDC), 1 analog PTC input, 1 unipolar voltage input, and 1 form C relay output.
Selection Guide & Purchasing Advice
When selecting the 22F-D024N114, verify your motor's full-load current does not exceed 24 A. Check that your supply voltage matches 380–480 VAC three-phase. The IP20 enclosure suits indoor panel mounting only. For environments with dust or moisture, consider an IP54/NEMA 12 variant. PLC Source PRO offers genuine Allen-Bradley 22F-D024N114 drives with factory-sealed packaging and fast shipping. Confirm availability before ordering by contacting our team.
