Product Overview

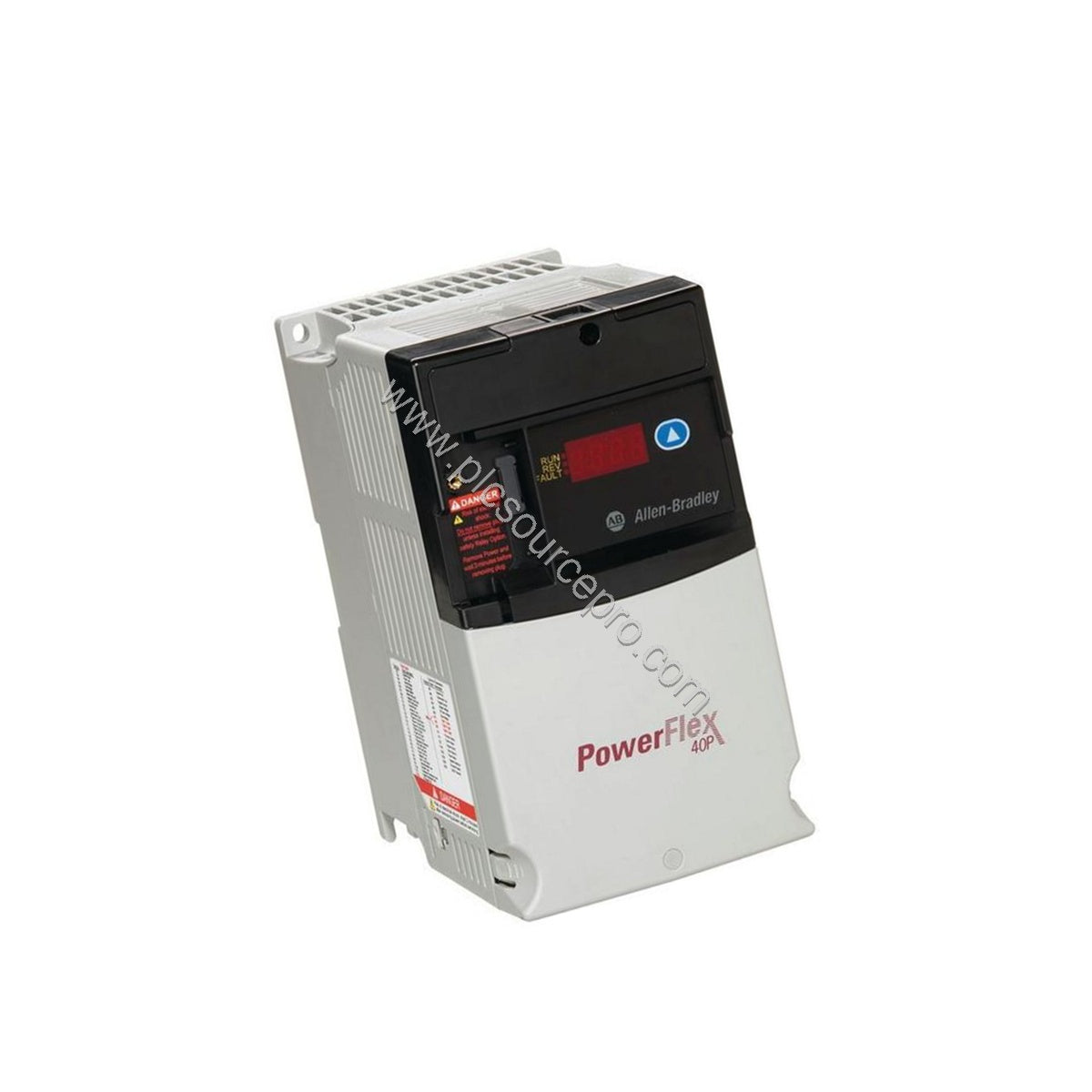

The Allen-Bradley 22D-E1P7H204 adjustable frequency drive from the PowerFlex 40P series offers precise speed and torque control for industrial motors. This Allen-Bradley 22D-E1P7H204 drive operates on 600 Volts AC, 50/60 Hz, 3-phase input, delivering 1.7 Amps with 1 Horsepower output. It is designed to upgrade legacy systems or replace older drives in Allen-Bradley PLC environments, providing modern control features and reliable operation.
Technical Specifications
Key parameters of the Allen-Bradley 22D-E1P7H204 drive are summarized below:
| Parameter |
Value |
| Manufacturer |
Rockwell Automation |
| Brand |
Allen-Bradley |
| Part Number |
22D-E1P7H204 |
| Product Line |
PowerFlex 40P |
| Amperage |
1.7 A |
| Phase |
Three-Phase |
| Enclosure |
Open NEMA Type - Plate Mount (IP20) |
| Input Power |
600 Volts AC |
| Horsepower |
1 HP |
| Filter |
No CE Compliant Filter |
| Type |
Standard |
| Frame Size |
B |
The 1.7 A rating and 1 HP capacity make the Allen-Bradley 22D-E1P7H204 suitable for small to medium motor loads. Its open NEMA Type plate mount (IP20) enclosure suits panel installation in controlled environments.
Application Guide
The Allen-Bradley 22D-E1P7H204 drive excels in applications requiring adjustable speed and torque. Common uses include conveyor systems, pumps, and fans within industrial automation lines. For example, in a packaging facility, this drive can precisely control a conveyor motor to match production speeds, reducing mechanical stress and energy consumption. Upgrading from older fixed-speed drives to the Allen-Bradley 22D-E1P7H204 provides flexible process control.
Installation & Setup
The Allen-Bradley 22D-E1P7H204 supports multiple mounting options. It can be panel-mounted using the frame B profile, and the plate mount allows integration into a NEMA 4/IP66 enclosure if needed. Zero stacking is permitted at ambient temperatures up to 40°C to save panel space. Use the DIN rail feature on B-sized drives for quick installation. Connect 3-phase 600 VAC input to the power terminals and the motor to the output. The drive includes an integral reset button and LED display for local fault management. For remote control, use the DSI port with an external HMI or PC programming tool.
Selection Guide & Purchasing Advice
Before purchasing the Allen-Bradley 22D-E1P7H204, verify your system voltage and motor horsepower match the 600 VAC input and 1 HP output. Confirm the enclosure type fits your panel environment. The drive does not include a CE filter; external filters are available for EMC compliance. For reliable sourcing, consider PLC Source PRO as a trusted supplier of genuine automation spares.
