Product Overview

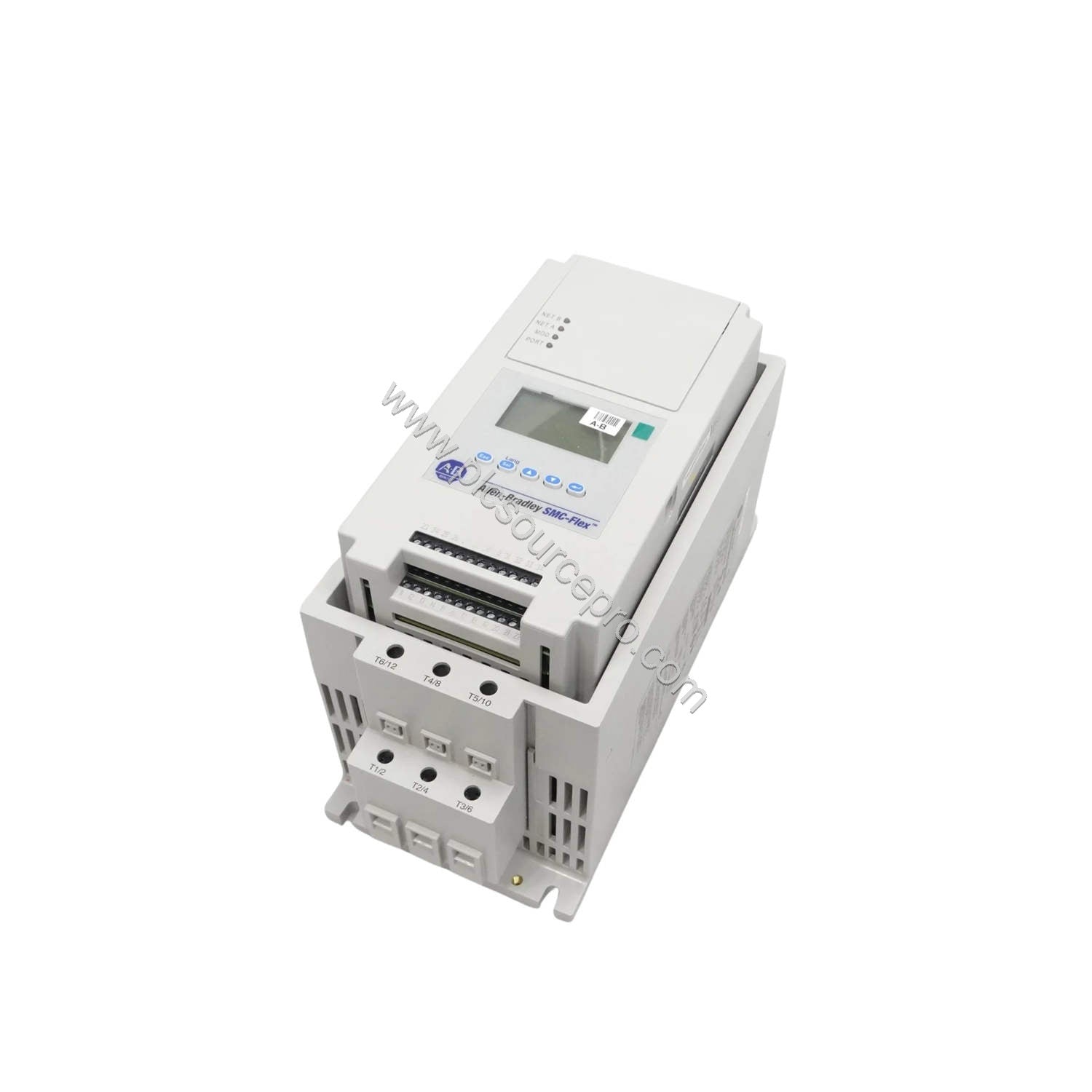

The Allen-Bradley 150-F5FHD is a solid-state controller from the SMC-Flex series, engineered for reliable starting and stopping of standard three-phase squirrel cage induction motors. This industrial automation module features an IP65 (Type 4/12) enclosure, making it suitable for demanding factory environments. With a controller rating of 5 A and 3 Hp @ 460V AC, the 150-F5FHD is a compact yet powerful solution for motor control applications.
This soft-starter offers both combination and non-combination configurations, providing flexibility in system design. Its programmable keyboard and LCD display simplify setup and operation, while electronic motor overload protection and SCR/Run capabilities ensure safe and efficient performance.
Technical Specifications
| Specification |
Value |
| Manufacturer |
Allen-Bradley |
| Category |
Drives |
| Product Line |
SMC-Flex |
| Part Number |
150-F5FHD |
| Weight |
225.00 lbs (102.06 kg) |
| Bulletin Number |
Solid State Controller |
| Enclosure Type |
IP65 (Type 4/12) |
| Controller Rating |
5 A, 3 Hp @ 460V AC |
| Input Line Voltage |
200-208V AC, 3-phase, 50 and 60 Hz |
| Control Voltage |
100-240V AC (5-480 A units) |
| Rated Voltage |
200/208V AC |
Key Features & Benefits
-
IP65 (Type 4/12) Enclosure: Provides robust protection against dust and water ingress, ideal for harsh industrial settings.
-
Programmable Parameters: The five-button keypad allows easy configuration of application settings, including the number of starts per hour (up to 99), reducing motor stress.
-
Selectable Kick-Start: Delivers a high-torque pulse to break away loads that require extra starting torque.
-
Underload Protection: Detects current drops and can stop motor operation temporarily or permanently, safeguarding equipment.
-
Serial Interface Port: Enables connection to a Bulletin 20 Human Interface Module and various communication networks, including ControlNet, Profibus, DeviceNet, Interbus, and Ethernet.
Applications
The 150-F5FHD is widely used in industries such as manufacturing, water treatment, and material handling. It effectively controls motors in pumps, fans, conveyors, and compressors. For example, in a conveyor system, the soft-start capability reduces mechanical shock, extending belt life. In pump applications, the underload protection prevents dry-running damage, ensuring operational reliability.
Installation & Setup
When installing the 150-F5FHD, ensure the enclosure is mounted in a location that allows adequate airflow and access to the front panel. Verify that the input line voltage matches the 200-208V AC, 3-phase supply. Connect the motor leads according to the wiring diagram provided in the manual. Use the five-button keypad to program start modes and protection parameters. Always follow local electrical codes and safety guidelines.
Maintenance & Reliability
Regular inspection of the controller is recommended to ensure long-term reliability. Check for dust accumulation on the heatsink and ensure the enclosure seals remain intact. Periodically verify that all connections are tight and free of corrosion. The IP65 enclosure minimizes maintenance needs, but routine checks help prevent unexpected downtime.
Selection Guide
When selecting the 150-F5FHD, confirm that your motor's horsepower and full-load current fall within the controller's rating. Verify the input voltage and frequency match your facility's power supply. For additional support or to place an order, PLC Source PRO offers genuine Allen-Bradley spare parts and expert guidance.
