Product Introduction

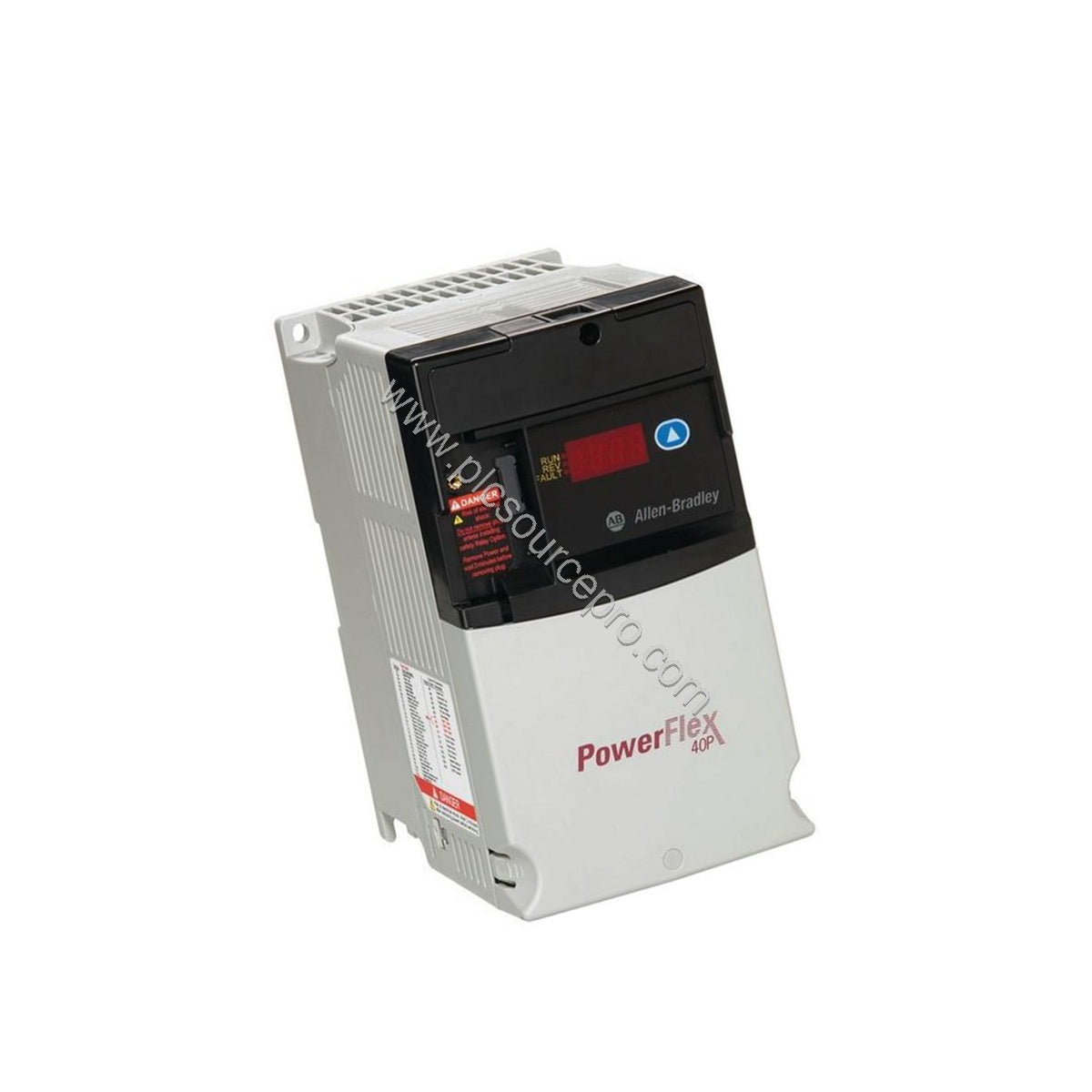

When high-efficiency motor control is critical in industrial processes, the Allen-Bradley 22D-D1P4N104 PowerFlex 40P Variable Frequency Drive (VFD) delivers precise speed and torque management. Part of the PowerFlex 40P series, this B-frame drive is engineered for reliable performance in panel-mount installations. With an input voltage range of 342-528VAC, 3-phase, and a rated output of 1.4A at 0.4kW (0.5 HP), it provides compact yet robust control for small motors.
Technical Specifications Breakdown
Key specifications from the manufacturer include:
-
Input Voltage: 380-480 VAC, 3-Phase (range 342-528 VAC)
-
Input Current: 1.8 A
-
Output Voltage: 0-460 VAC, 3-Phase
-
Output Power: 0.4 kW (0.5 HP) at 1.4 A
-
Enclosure: IP20 / NEMA UL Type Open
-
Frame Size: B
-
Communication: Built-in RS485; optional protocols: BACnet, LonWorks, PROFIBUS, Ethernet, DeviceNet, ControlNet
-
I/O: 7 discrete inputs (sink/source), 1 opto output, 2 Form C contacts, 1 analog input (0-10VDC / 0-20mA), 1 analog output (0-10VDC / 0-20mA)
These parameters ensure the 22D-D1P4N104 can be integrated into a wide range of automation architectures.
Installation & Setup Guidance
Mount the 22D-D1P4N104 in its B-size frame on a vertical, level panel using M4 (#8-32) screws torqued to 14-17 pound-inches. Ensure at least 3 minutes of capacitor discharge time after power removal before servicing. The drive must be protected from direct sunlight, moisture, and corrosive atmospheres. Operate within 14°F to 122°F ambient temperature when adequate clearance between drives is maintained. Panel mounting directly to a subpanel in an IP20 enclosure is required.
Maintenance & Reliability
To extend service life, keep the cooling fan free of dust and metallic particles. The 22D-D1P4N104 incorporates drive overload protection, ramp regulation, flying start, and StepLogic for independent position control. Its robust design also guards against bus overvoltage and undervoltage trips. Regular inspection of the enclosure gaskets and fan ensures consistent thermal performance.
Troubleshooting & Common Issues
Common failures in VFDs include capacitor discharge hazards and ESD damage. The 22D-D1P4N104's high-voltage capacitors require a mandatory 3-minute wait after power-off; LED indicators only show power status, not safe voltage levels. Always follow ESD precautions. The drive's Volts/Hertz and Sensorless Vector Control modes help maintain stable torque even under varying loads, reducing trip events. If communication issues arise, verify the RS485 connection and protocol settings.
Compatibility & Integration
The 22D-D1P4N104 supports CIP via its built-in RS485 port and can be expanded with BACnet, LonWorks, PROFIBUS, Ethernet, DeviceNet, or ControlNet networks. It works seamlessly with Allen-Bradley PLCs and other automation systems. The analog I/O allows direct connection to process sensors and actuators.
Selection Guide & Purchasing Advice
Before purchasing, confirm your motor's full-load amperage does not exceed 1.4A and that input voltage matches 380-480 VAC, 3-phase. Ensure your enclosure meets the IP20/NEMA Type Open rating. For reliable supply and support, PLC Source PRO offers genuine Allen-Bradley 22D-D1P4N104 units with fast shipping.
