Product Introduction

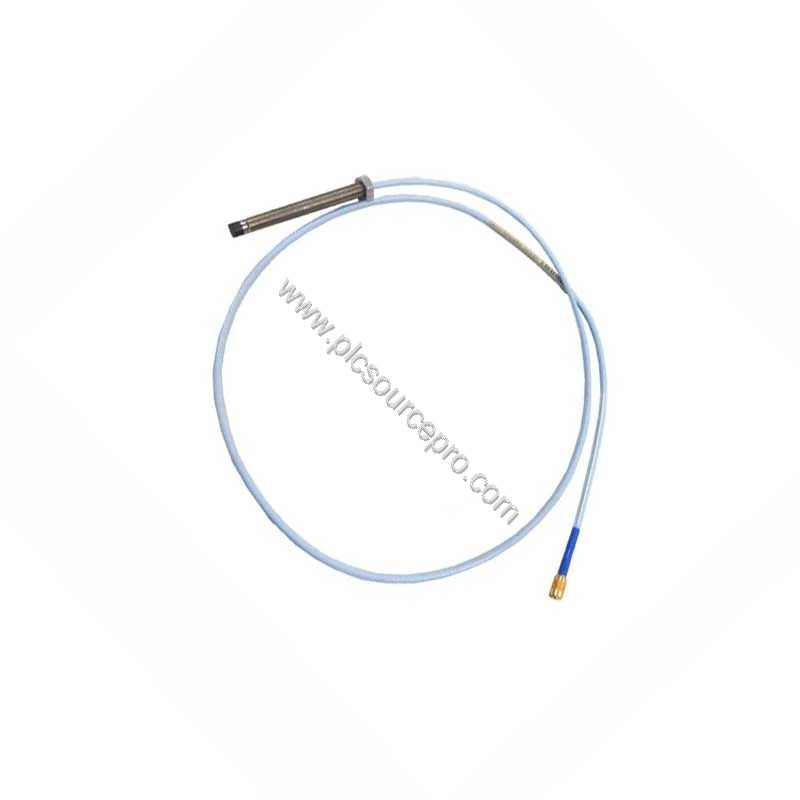

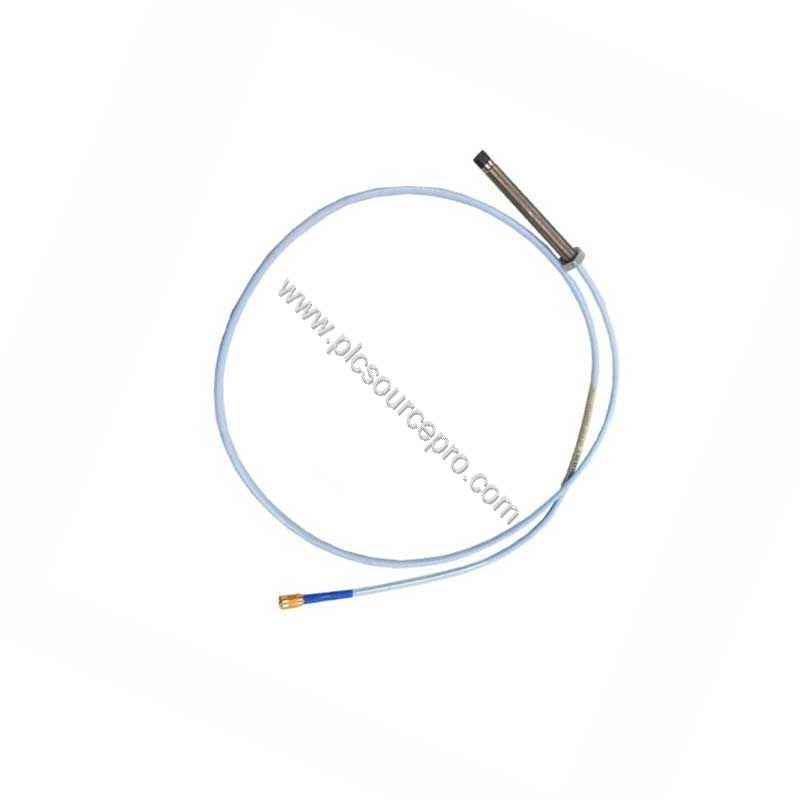

When machine vibration threatens critical rotating assets, the Bently Nevada 330141-08-90-02-00 delivers precise measurement. This 3300 XL 8 mm probe with armor is designed for permanent installation in harsh environments. It replaces older probe designs with patented TipLoc and CableLoc technologies for superior robustness.
Technical Specifications Breakdown
The table below lists key performance parameters derived from the product data.
| Parameter |
Specification |
| Overall Case Length |
0.8 in (Option 08) |
| Total Cable Length |
9.0 m (29.5 ft) (Option 90) |
| Connector Type |
Miniature coaxial ClickLoc, standard cable (Option 02) |
| Nominal Probe DC Resistance (9 m) |
9.87 Ω ± 0.50 Ω |
| Incremental Scale Factor (9 m system) |
7.87 V/mm (200 mV/mil) ± 6.5% |
| Deviation from Best Fit Straight Line (9 m) |
Less than ±0.038 mm (±1.5 mil) |
| Probe Tip Material |
Polyphenylene sulfide (PPS) |
| Probe Case Material |
AISI 303 or 304 stainless steel |
| Probe Weight |
323 g/m (11.4 oz/m) |
| Standard Temperature Range |
-52°C to +177°C (-62°F to +350°F) |
| Extended Temperature Range (tip) |
-52°C to +218°C (-62°F to +425°F) |
| Extended Temperature Range (cable) |
-51°C to +260°C (-60°F to +500°F) |
| Humidity Performance |
<3% change in ASF at 93% RH per IEC 68-2-3 |
These specs confirm the probe's accuracy and durability for continuous vibration monitoring.
Industry Applications
The Bently Nevada 330141-08-90-02-00 excels in turbine, compressor, and pump monitoring. Its 8 mm tip offers thicker PPS encapsulation, resisting physical abuse. The armored design protects the cable in high-risk areas. Use it as a direct replacement for legacy 3300 series probes without system recalibration.
Installation & Setup Guidance
Mount the probe with the case length of 0.8 in to ensure proper gap. Use the ClickLoc connector for quick, secure cable attachment. Follow the 3300 XL manual for gap voltage and linear range setup over a 0.25 mm increment. Avoid exposing the probe to temperatures below –34°C (–30°F) to prevent pressure seal failure.
Maintenance & Reliability
Patented CableLoc provides 330 N (75 lbf) pull strength, reducing cable breakage. The Viton O‑ring seals differential pressure. For extended life, inspect the probe tip for wear annually. Replace protective armor if damaged. These features reduce unplanned downtime, delivering long-term ROI.
Selection Guide & Purchasing Advice
Verify the total length (9.0 m) and connector type match your extension cable. The fluid-resistant FluidLoc option is available for oil‑filled machines. PLC Source PRO stocks this exact Bently Nevada 330141-08-90-02-00 with factory calibration. Contact us for bulk pricing or expedited delivery.
