Product Introduction

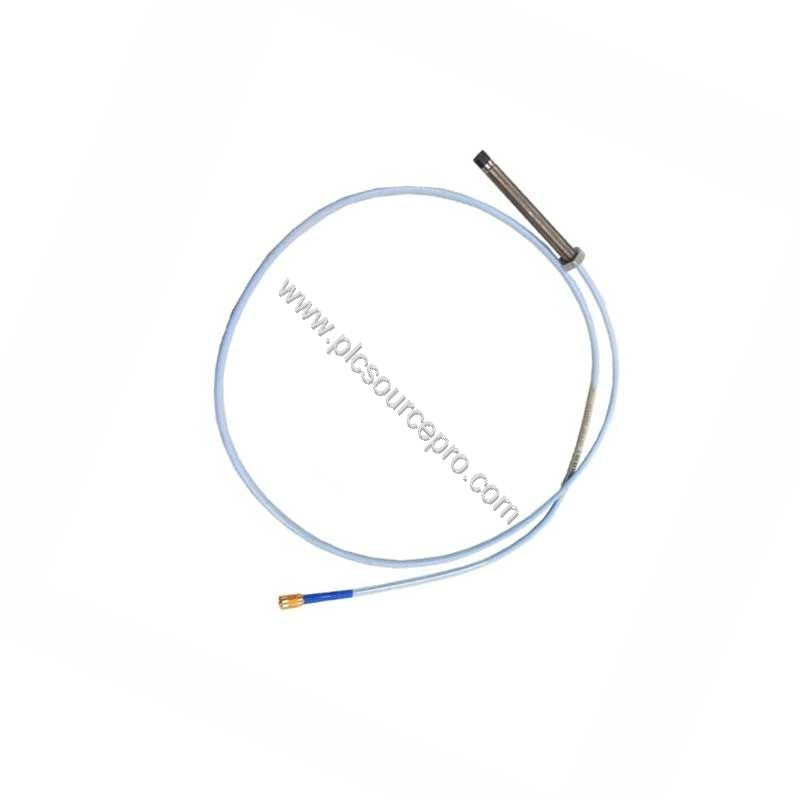

When machine vibration monitoring demands uncompromising reliability, the Bently Nevada 330141-08-50-02-05 3300 XL 8 mm probe with armor delivers precise measurements in harsh industrial environments. This eddy-current probe is engineered to withstand physical abuse, fluid ingress, and extreme temperatures, ensuring accurate data for predictive maintenance programs.
The 330141-08-50-02-05 features a patented TipLoc molding method that creates a robust bond between the probe tip and body, while the CableLoc design provides 330 N (75 lbf) pull strength. An optional FluidLoc cable prevents oil and liquids from leaking through the cable interior—critical for applications involving lubricated machinery.
Technical Specifications
The Bently Nevada 330141-08-50-02-05 is a 3300 XL 8 mm probe with armor, designed for use with a 5-meter Proximitor sensor. Key parameters include:
-
Overall Case Length: 0.8 inches (08 option)
-
Total Length: 5.0 meters (16.4 feet)
-

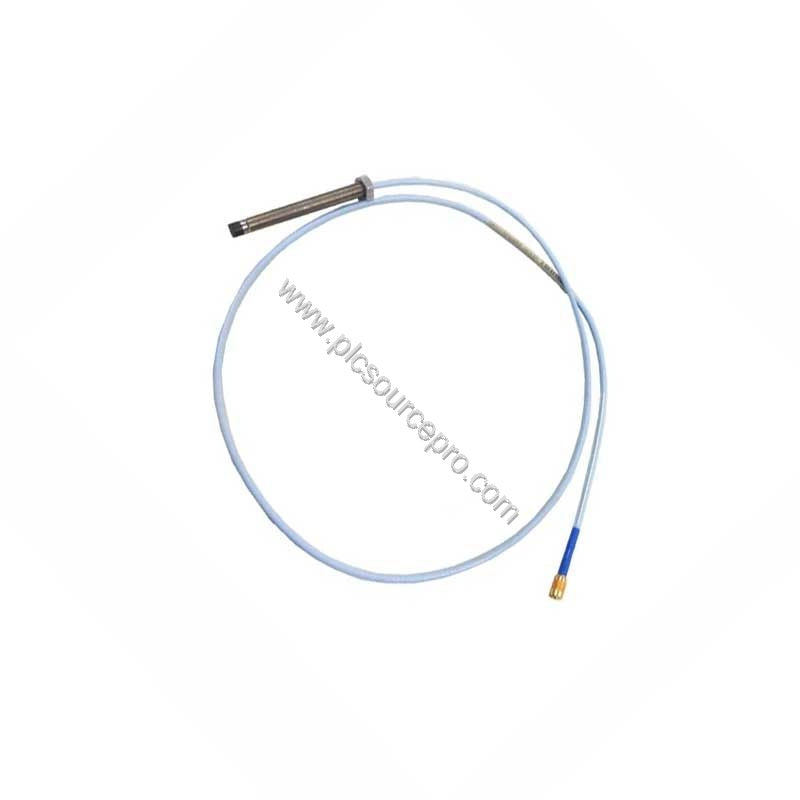

Connector: Miniature coaxial ClickLoc, standard cable
-
Agency Approvals: CSA, ATEX, IECEx
-
Probe DC Resistance (RPROBE): 8.73 ± 0.50 Ω at 5.0 m
-
Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ± 5% for 5 or 1 meter systems over 0.25 mm increments from 0°C to +45°C
-
Deviation from Best Fit Straight Line (DSL): Less than ±0.025 mm (±1 mil) for 5 or 1 meter systems at 0°C to +45°C
-
Probe Tip Material: Polyphenylene sulfide (PPS)
-
Probe Case Material: AISI 303 or 304 stainless steel
-
Probe Weight: 323 g/m (11.4 oz)
-
Standard Temperature Range: -52°C to +177°C (-62°F to +350°F); Extended range probe tip up to +218°C (+425°F)
-
Relative Humidity: Less than 3% change in Average Scale Factor (ASF) when tested at 93% humidity per IEC 68-2-3 for up to 56 days
Installation and Setup Guidance
Mount the 330141-08-50-02-05 probe in a threaded hole with proper clearance to the target surface. Ensure the probe tip is perpendicular to the shaft and within the specified gap range (typically 0.25–2.5 mm for 8 mm probes). Use the miniature coaxial ClickLoc connector for secure cable attachment; no special tools needed. The 5-meter cable is intended exclusively for use with the corresponding 5-meter Proximitor sensor—do not mix cable lengths. Armor provides extra protection in abrasive environments.
Maintenance and Reliability
Regularly inspect the probe cable for cuts or abrasions, especially near the connector and the probe tip. The patented TipLoc and CableLoc designs reduce the risk of internal breakage, but periodic visual checks are recommended. Avoid exposing the probe to temperatures below –34°C (–30°F) as this may cause premature failure of the pressure seal. In humid or fluid-prone areas, consider the optional FluidLoc cable upgrade to prevent oil wicking. When cleaning, use only mild solvents; avoid abrasive materials that could damage the PPS tip.
Selection Guide and Purchasing Advice
Before ordering the Bently Nevada 330141-08-50-02-05, verify compatibility with your existing 3300 XL system. This probe works exclusively with 5-meter Proximitor sensors. For applications requiring extended temperature ratings or fluid resistance, ensure that the appropriate options are selected. PLC Source PRO maintains a reliable inventory of genuine Bently Nevada parts, including the 330141-08-50-02-05, to support your critical vibration monitoring needs.
