Product Overview

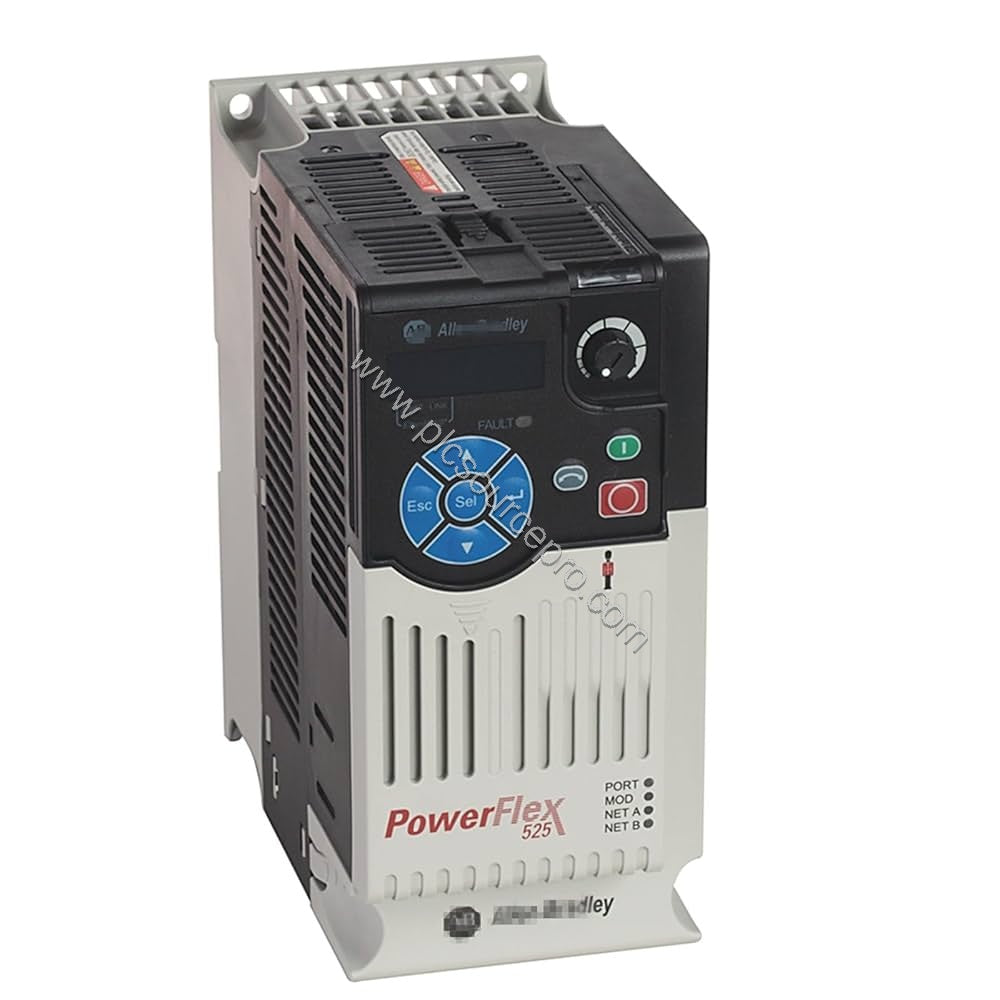

When precise motor speed control is required for industrial applications, the Allen-Bradley 25B-D2P3N104 PowerFlex 525 Variable Frequency Drive delivers reliable performance. This drive is part of the PowerFlex 525 series, designed for modulating speed control of AC motors in virtually any industry. Its compact frame A design supports DIN rail or panel mounting, making it suitable for space‑constrained environments.
Technical Specifications
The Allen-Bradley 25B-D2P3N104 operates with an input voltage range of 323‑528 VAC, 3‑phase, delivering an output current of 2.3 A at 0.75 kW (1.0 HP). Key specifications include:
-
Input Voltage: 323‑528 VAC, 3‑phase
-
Input Current: 3.2 A
-
Output Voltage: 0‑460 VAC
-
Output Power: 0.75 kW (1.0 HP)
-
Enclosure Rating: IP20 / NEMA UL Type Open
-
Installation: Panel Mount / DIN Rail
-
Built‑in Communication: Ethernet/IP
-
Optional Protocols: Dual Ethernet/IP, DeviceNet, ProfiBus DP
-
Frame Size: Frame A
-
EMC Filtering: No Filter
-
Interface Module: Standard
Real‑World Applications
The Allen-Bradley 25B-D2P3N104 supports multiple control methods including Sinusoidal PWM, Volts/Hertz, Sensorless Vector Control, and Economizer SVC motor control. It achieves ±0.5% of base speed over a 100:1 speed range in sensorless vector mode, making it ideal for conveyors, pumps, and fans where energy savings and consistent torque are critical. With encoder feedback, speed regulation improves to ±0.1% over a 1000:1 range for high‑precision applications like machine tools or winders.
Compatibility and Network Integration
Equipped with an embedded Ethernet/IP port, the Allen-Bradley 25B-D2P3N104 integrates seamlessly into Device Level Ring (DLR) topologies for fault‑tolerant control networks. Advanced inertia ride‑through maintains operation during brief voltage sags, while built‑in safety features (instantaneous fault trip, ground fault trip, electronic motor overload) protect both the drive and connected equipment. The drive also includes integral RS4/DSI communications for legacy system compatibility.
Selection Guide and Purchasing Advice
Before purchasing, verify that your system voltage matches the 25B-D2P3N104’s 380‑480 VAC nominal range. Confirm the mounting method (DIN rail or panel) and ensure adequate cooling in your enclosure. For a reliable supply of genuine Allen‑Bradley parts, consider PLC Source PRO, a trusted source for industrial automation spares.
