Product Overview

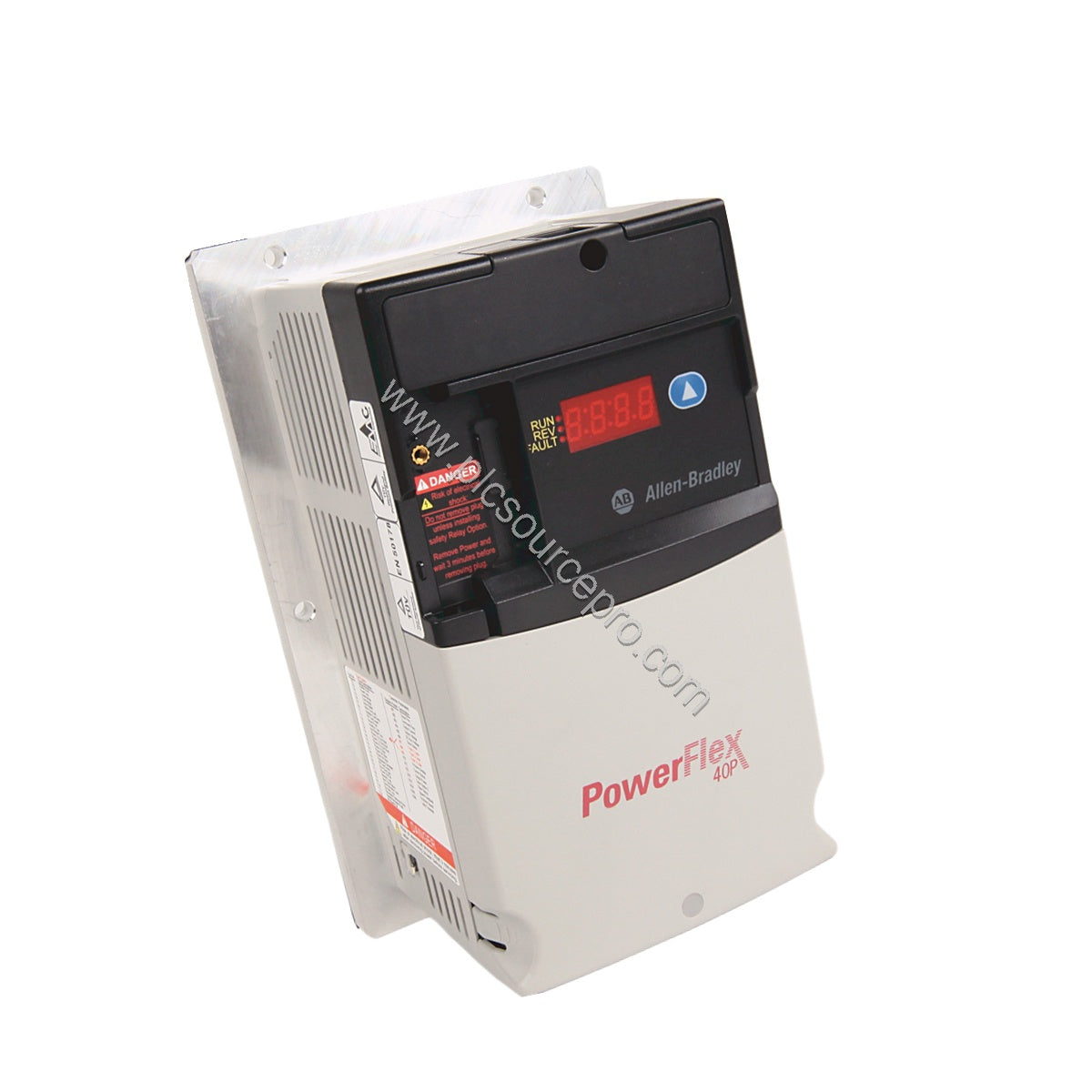

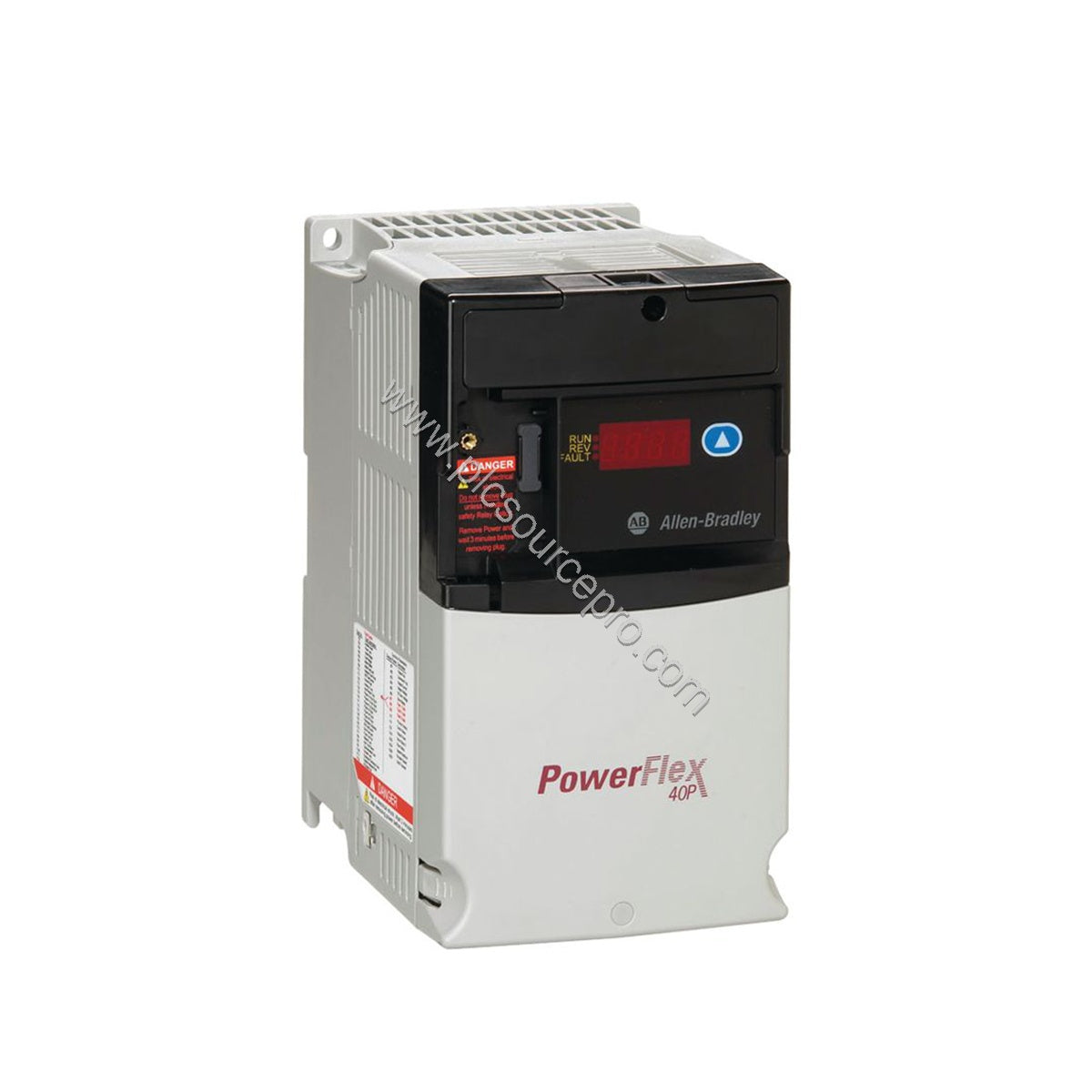

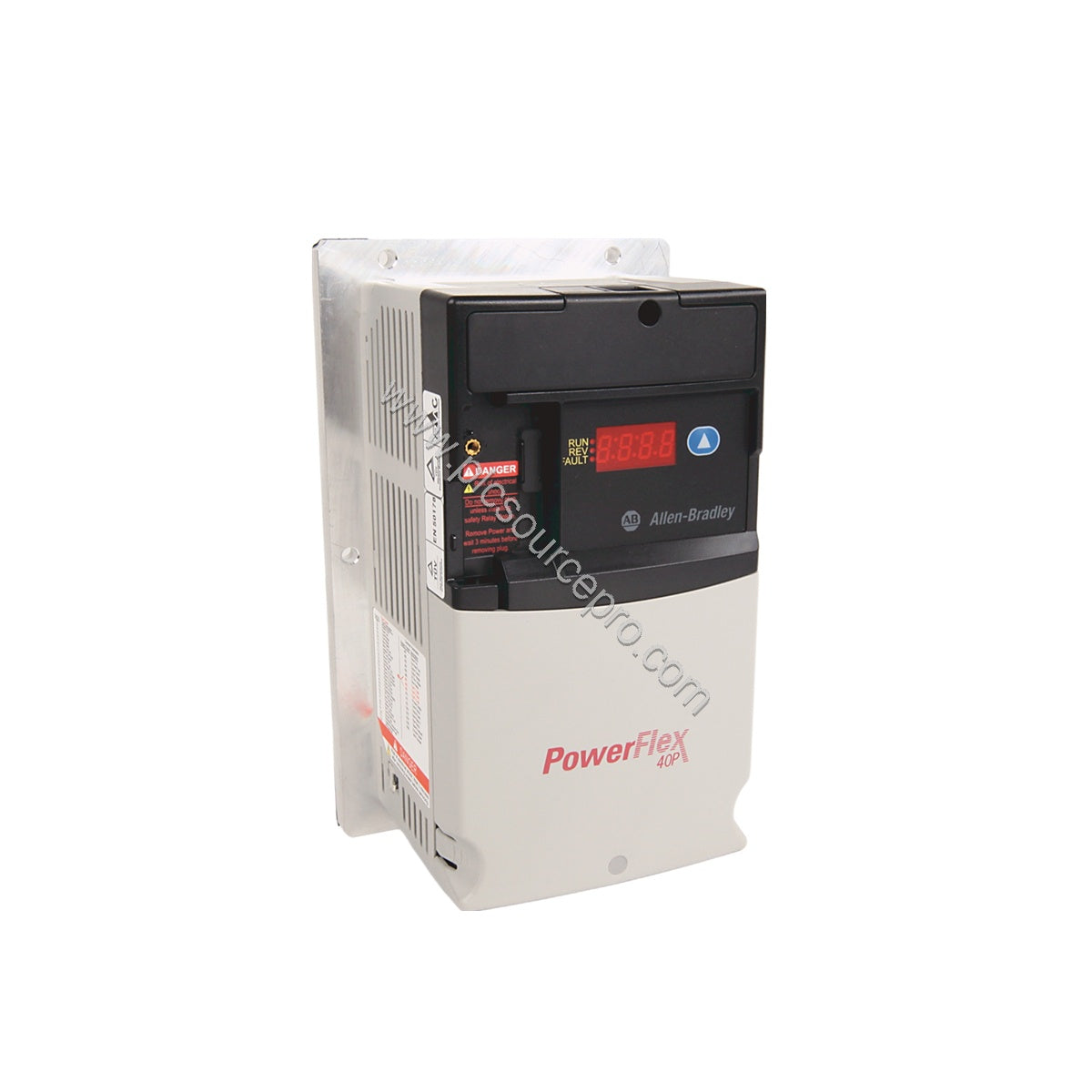

The Allen-Bradley 22D-D012N104 is a PowerFlex 40P series adjustable frequency drive designed for precise motor speed control in industrial automation. This three-phase drive delivers 12.0 A at 480 VAC input, providing 7.5 HP output. Its compact Size C frame and IP20 panel-mount enclosure make it suitable for space-constrained environments. The drive includes a 4-digit display, keypad, and 10 LED status indicators for local operation and diagnostics.
Key Technical Specifications
| Parameter |
Value |
| Manufacturer |
Rockwell Automation / Allen-Bradley |
| Part Number |
22D-D012N104 |
| Product Line |
PowerFlex 40P |
| Amperage |
12.0 A |
| Phase |
Three-Phase |
| Input Power |
480 Volts AC |
| Horsepower |
7.5 HP |
| Enclosure |
Open NEMA Type - Panel Mount (IP20) |
| Filter |
No CE Compliant Filter |
| Frame Size |
C |
Additional features include an RS-485 communications port for PC programming and multi-drop network configurations, plus zero stacking capability for space-saving drive mounting. The drive supports volts-per-hertz and sensorless vector motor control, as well as built-in counter, timer, basic logic, and StepLogic functions.
Industry Applications
The Allen-Bradley 22D-D012N104 excels in applications requiring variable speed control and energy savings. Common use cases include: fibers and textiles processing, beverage and brewing production lines, material handling conveyors, and automotive assembly systems. By precisely matching motor speed to load demands, this drive reduces energy consumption and mechanical wear, delivering a strong return on investment over its service life.
Installation and Mounting Guidance
Mount the Allen-Bradley 22D-D012N104 drive on a clean, flat panel or DIN rail within a ventilated enclosure. Ensure adequate clearance around the drive for airflow; follow the manufacturer’s spacing recommendations for zero stacking configurations. Use shielded cables for control wiring and route power cables separately to minimize electromagnetic interference. The IP20 enclosure requires installation in a pollution degree 2 environment. For enhanced protection, an optional IP30 NEMA 1 conduit box is available.
Selection Guide and Purchasing Advice
Before purchasing the Allen-Bradley 22D-D012N104, verify that your system voltage matches 480 VAC three-phase and that the motor load does not exceed 7.5 HP or 12.0 A. Confirm that your application does not require a CE-compliant filter, as this unit ships without one. If you need additional I/O or communication options, consider compatible expansion modules. For reliable supply and expert support, choose PLC Source PRO for your industrial automation needs.
