Product Overview

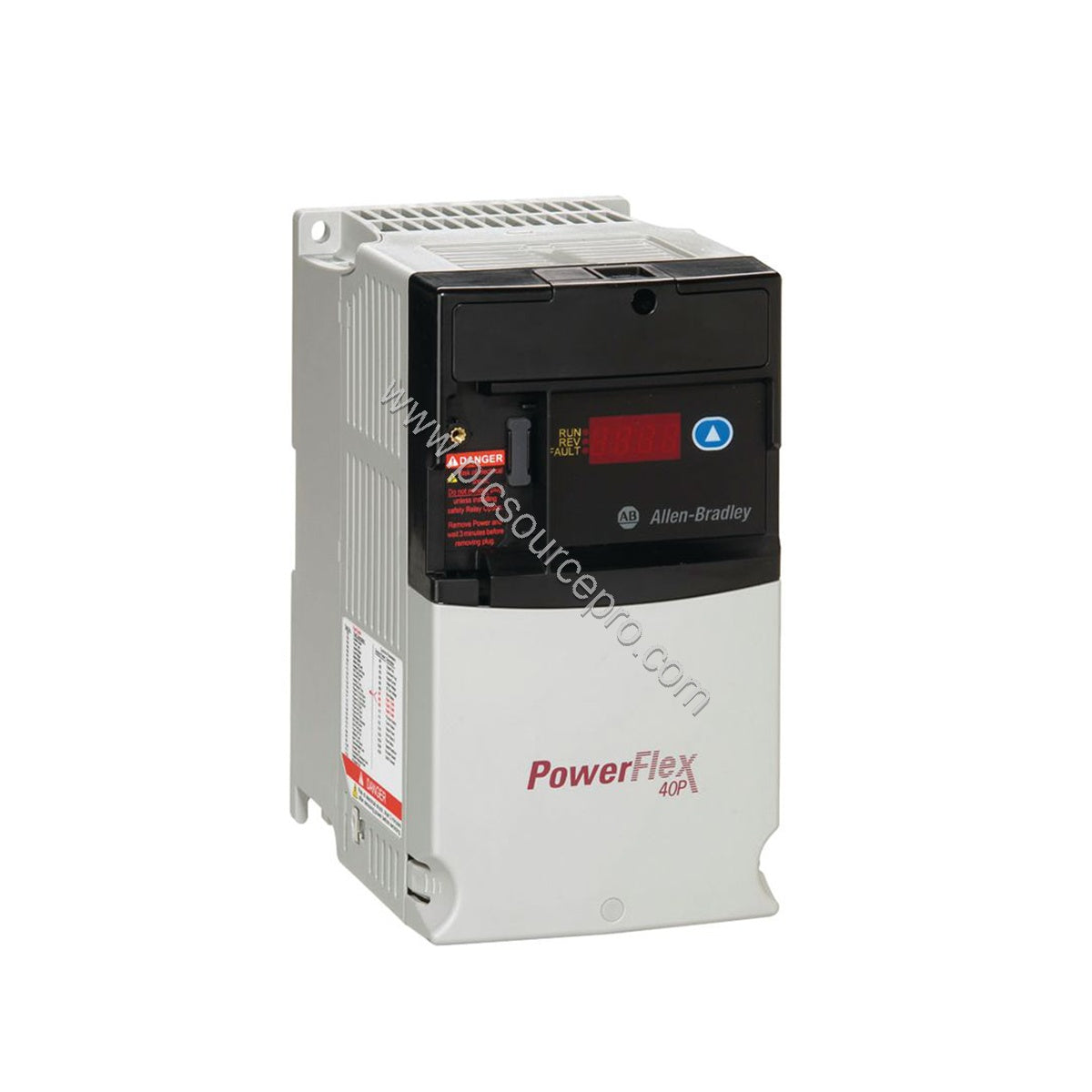

The Allen-Bradley 22D-D010H204 adjustable frequency drive is a compact, cost-effective solution designed for precise speed control in industrial automation. As part of the PowerFlex 40P series, this drive delivers reliable performance for applications like conveyors, diverters, and packaging machines.
Technical Specifications
-
Amperage: 10.5 A
-
Phase: Three-Phase
-
Input Power: 480 Volts AC
-
Horsepower: 5 Horsepower
-
Enclosure: Open NEMA Type – Plate Mount (IP20)
-
Frame Size: B
-
Filter: No CE Compliant Filter
Cost-Benefit & ROI
Investing in the Allen-Bradley 22D-D010H204 reduces total cost of ownership through energy-efficient operation and minimal maintenance. Its DIN rail mounting and zero-stacking capability (up to 40°C) save valuable panel space, lowering installation costs. The drive delivers up to 75% reduction in enclosed watts compared to traditional designs, directly cutting cooling expenses.
Industry Applications
Deploy the 22D-D010H204 in smart conveyors, palletizers, ring spinning machines, and synthetic fiber spinning machines. Its built-in loop control and category 3 safe-off functionality enhance safety and production efficiency without external components.
Installation & Setup
Install the Allen-Bradley 22D-D010H204 quickly using the DIN rail mounting feature (B frame). Panel mounting offers added flexibility. Optionally upgrade to IP30 (NEMA 1) by adding the conduit box. Ensure ambient temperature stays below 40°C for zero-stacking to maximize panel utilization.
Selection Guide
Before ordering, verify input voltage (480VAC, three-phase) and required horsepower (5 HP). Compatible accessories include dynamic brake resistors and communication options. For reliable sourcing, choose PLC Source PRO as your trusted supplier of genuine Allen-Bradley drives.
