Product Overview
The GE IS220PAICH1B is an Analog I/O pack from the Mark VIe series, designed for demanding industrial automation environments. This Industrial Automation Module acts as the electrical interface between one or two I/O Ethernet networks and an analog input terminal board. It combines a processor board shared by all Mark VIe distributed I/O packs with a dedicated acquisition board for analog input functions.
With the ability to handle up to ten analog inputs—eight configurable as 5 V, 10 V, or 0-20 mA current loops, and two as 1 mA or 0-20 mA current inputs—the IS220PAICH1B offers flexible signal conditioning. It also provides two 0-20 mA analog outputs for control or retransmission.
Technical Specifications
The following parameters are directly from the manufacturer's data:
-
Number of channels: 12 per terminal board (10 AI, 2 AO)
-
Input span: 1-5 V dc, ±5 V dc, ±10 V dc, or 0-20 mA (Inputs 1-8); 0-20 mA or ±1 mA (Inputs 9-10)
-
Input converter resolution: 16-bit analog-to-digital converter
-
Scan time: Normal scan 5 ms (200 Hz); maximum controller frame rate is 100 Hz
-
Power consumption: 5.3 W typical, 6.2 W worst case
-
Ambient temperature range: -40 to 158°F
-
Analog transmitter power: 22.8 VDC
-
Functional acronym: PAIC
-
Non-hazardous certification: UL E207685
Functional Description
The IS220PAICH1B uses a 16-bit ADC to digitize analog inputs, with a 5 ms scan time ensuring fast response. For current inputs, the terminal board includes a 250 Ω burden resistor, producing a 5 V signal at 20 mA. The two analog outputs operate at 18 V compliance in simplex or TMR mode, with a 14-bit DAC and a current regulator loop for precision.
Each output circuit includes a normally open mechanical relay for enabling/disabling output. In TMR systems, this relay isolates a failed output, allowing the remaining PAICs to maintain correct operation—a critical feature for fault-tolerant control.
Auto-Reconfiguration & Diagnostics
The Auto-Reconfiguration feature simplifies maintenance: when the controller detects a pack booting with a different configuration, it automatically downloads the correct bootload, baseload, firmware, and parameters. This eliminates manual reconfiguration and reduces downtime.
Diagnostics are supported via LED indicators and specific alarms. For example, alarm 82-83 indicates a non-functional suicide relay, often due to mismatched feedback or hardware failure, requiring pack replacement. Alarm 66-67 indicates individual output current too high relative to total current.
Compatibility & Integration

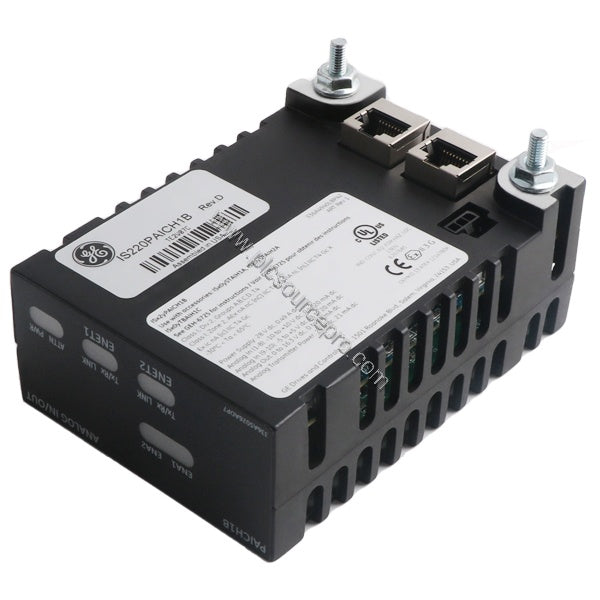

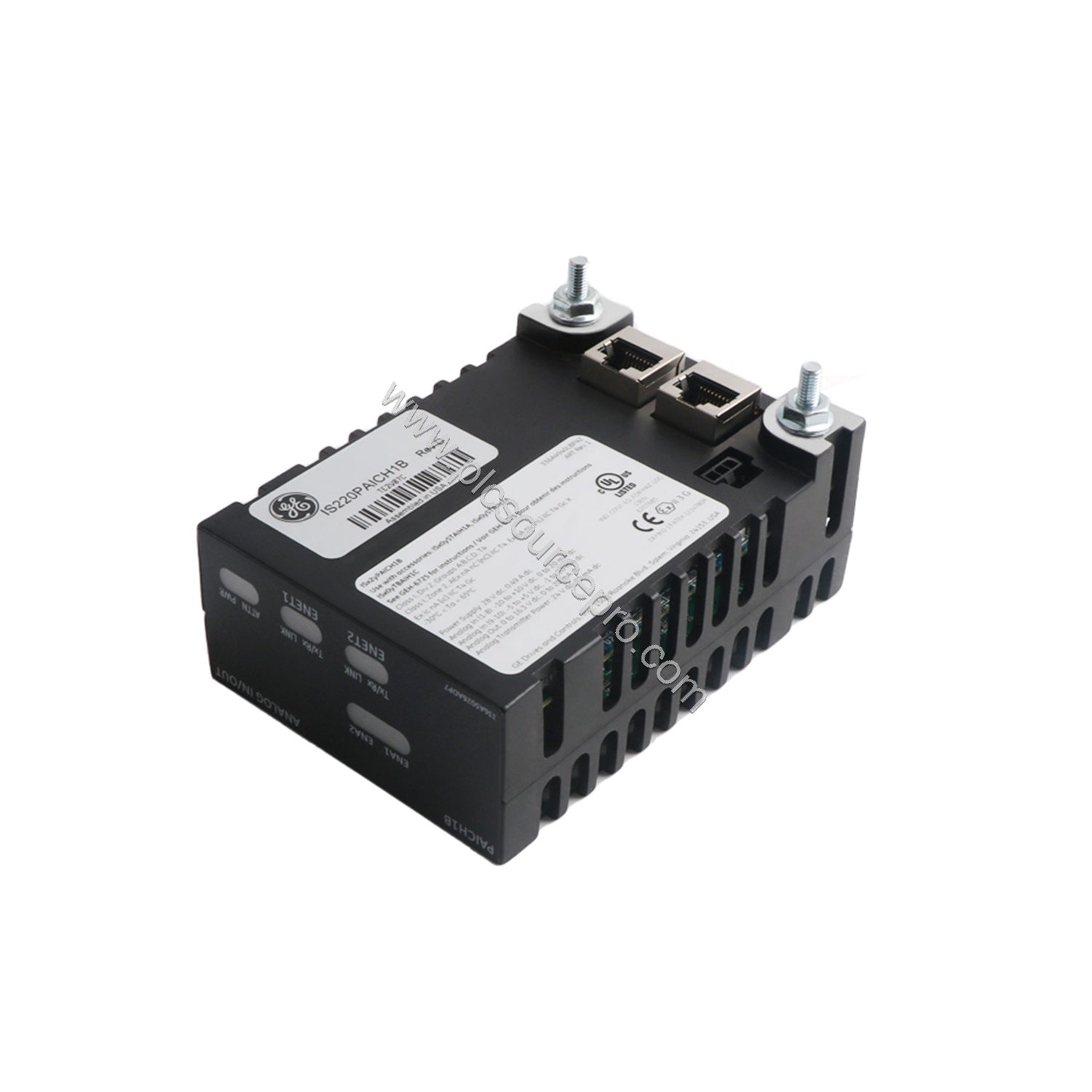

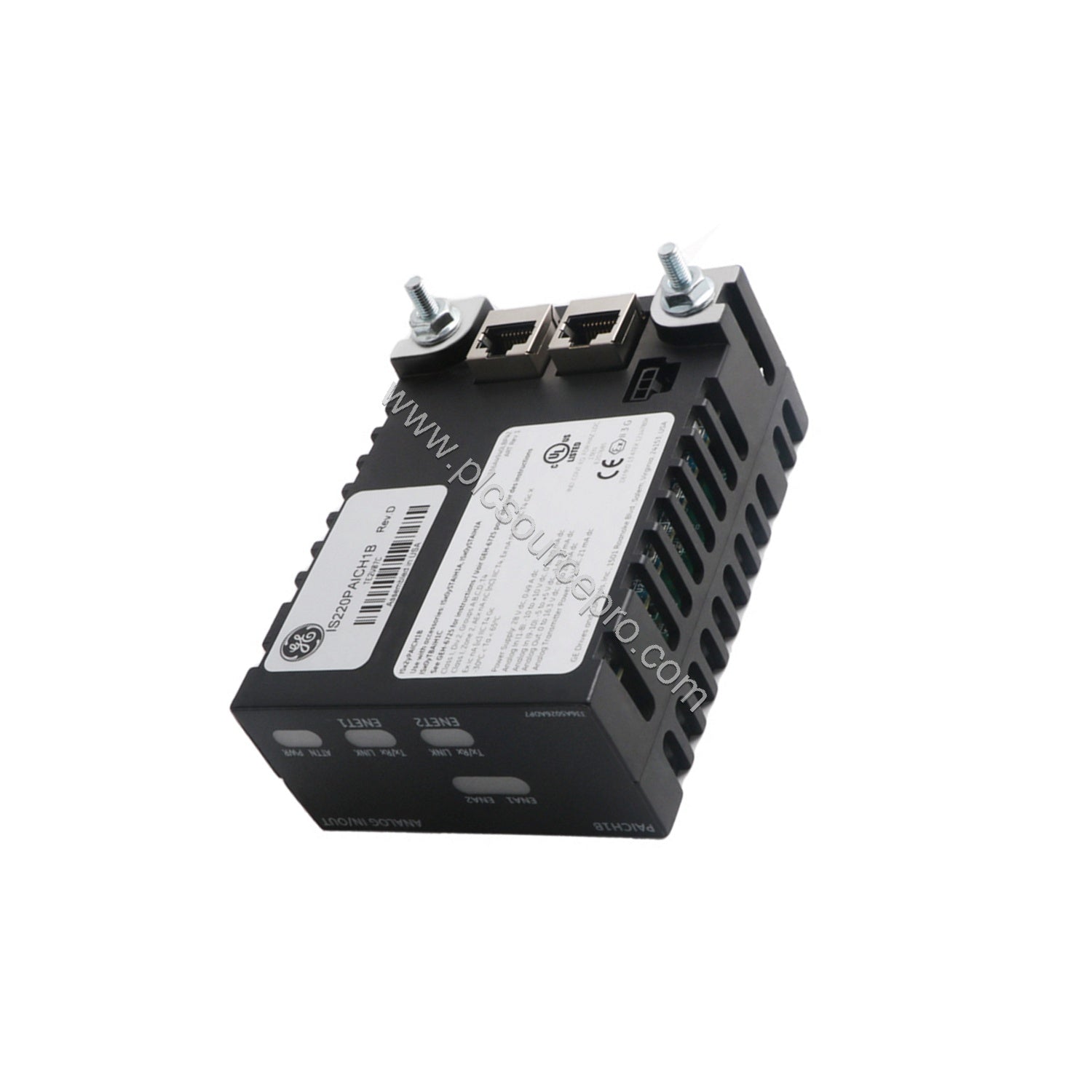

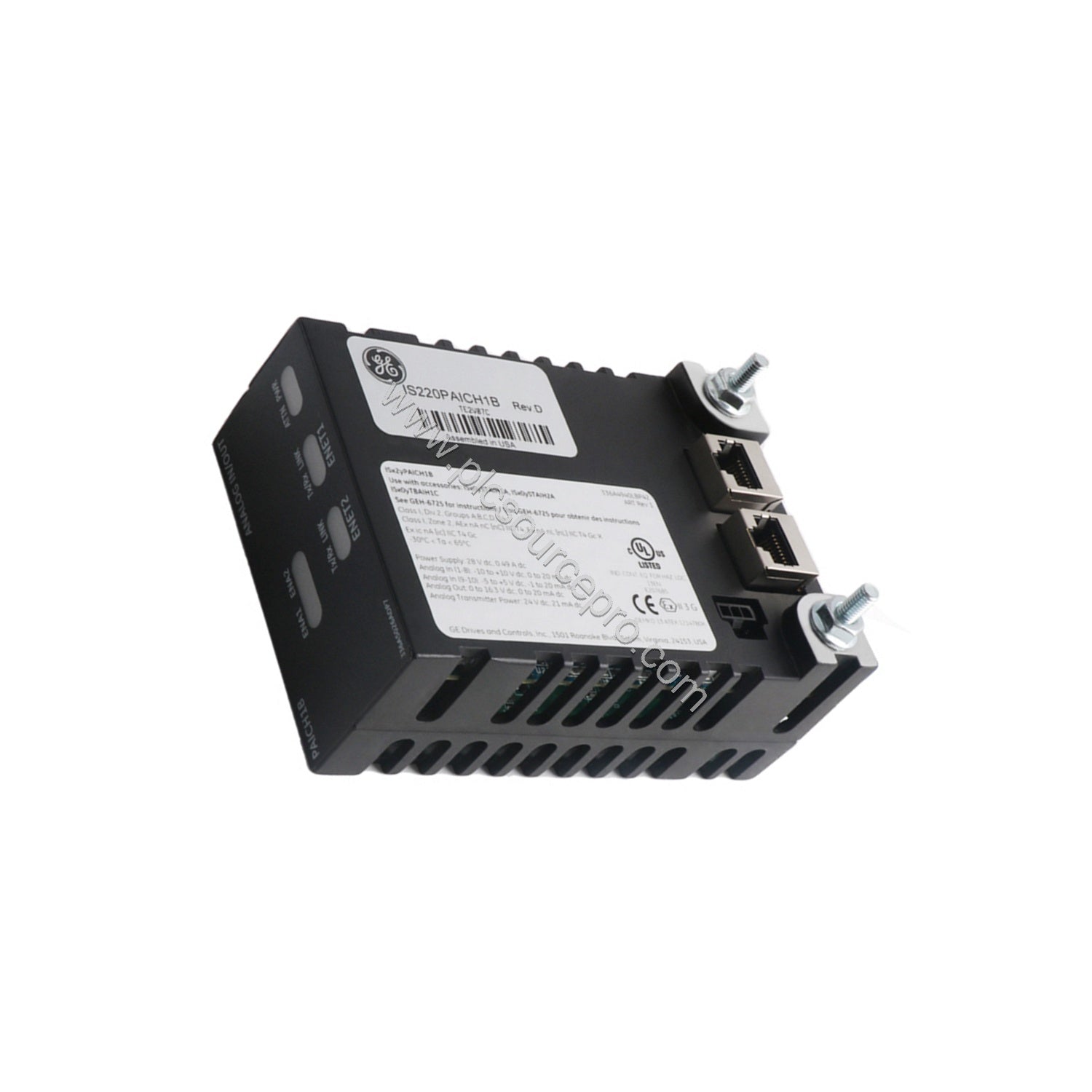

This module is part of the Mark VIe series and works with GE's distributed I/O architecture. It connects to I/O Ethernet networks via two RJ45 connectors and uses a DC-37 pin connector for output to the terminal board. Compatible terminal boards include IS200TBAIH1C, IS200TAIH1A, and IS200TAIH2A. The pack's three-pin power input accepts 24 or 28 VDC nominal, with a minimum of 22.5 VDC.
Installation & Setup Guidance
When installing the IS220PAICH1B, ensure the terminal board is properly matched. For IS200TBAIH1C, use a minimum wire size of 22 AWG. Verify the pack's configuration matches the controller's expected settings to avoid reconfiguration delays. Power up sequence uses a soft-start circuit to gradually increase voltage, so allow a few seconds for initialization.
Maintenance & Reliability
Regular inspection of connectors and LEDs helps detect early issues. Operate within the specified ambient temperature range (-40 to 158°F) to ensure reliable performance. The pack is certified for ATEX Zone 2, Group IIC locations per EN 60079 standards, and UL E207685 for non-hazardous areas, making it suitable for a variety of industrial sites.
Selection Guide & Purchasing Advice
Before purchasing, verify your system's compatibility with the Mark VIe series and confirm the terminal board model. PLC Source PRO offers genuine GE spares with fast shipping. Ensure you have the correct firmware revision for your application.
