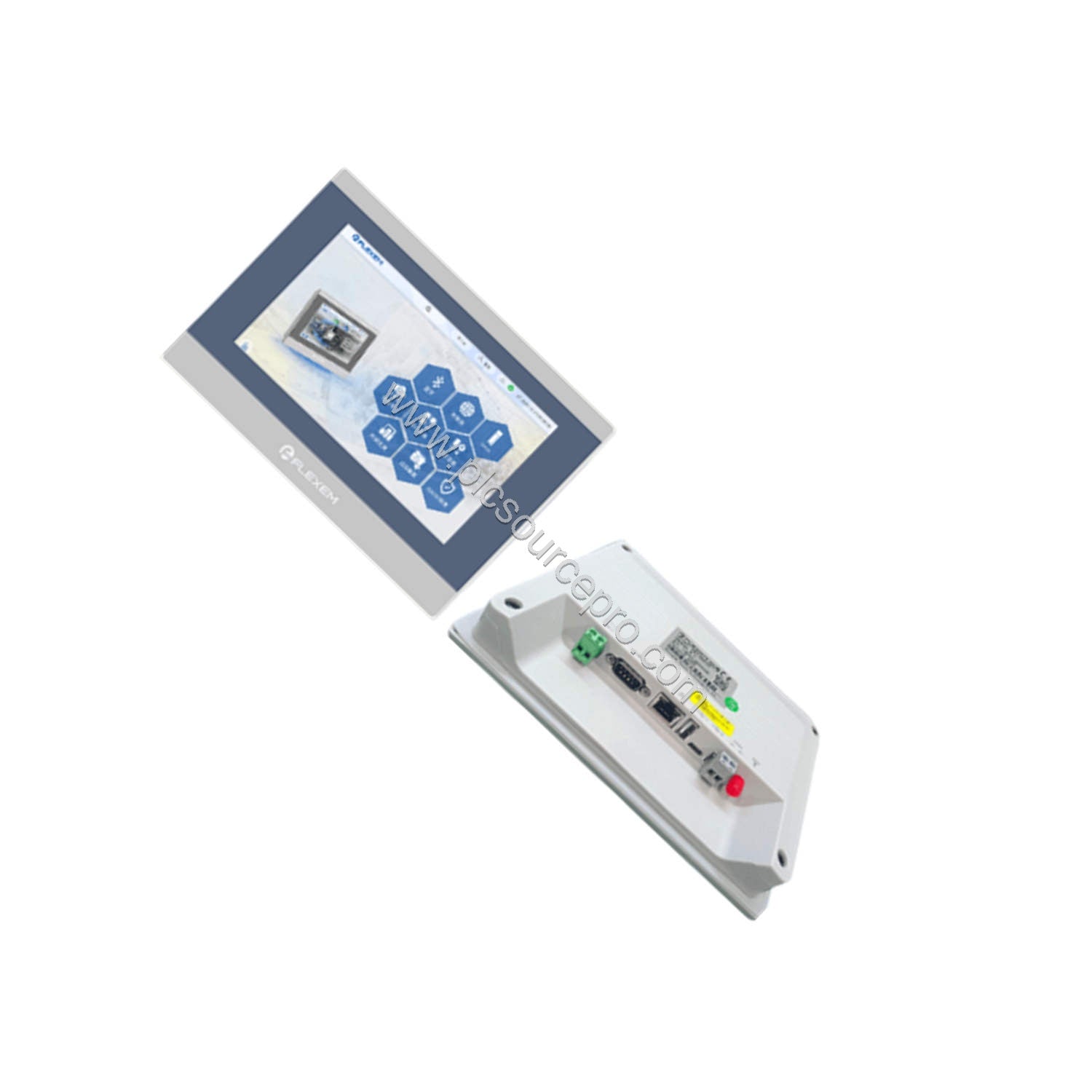

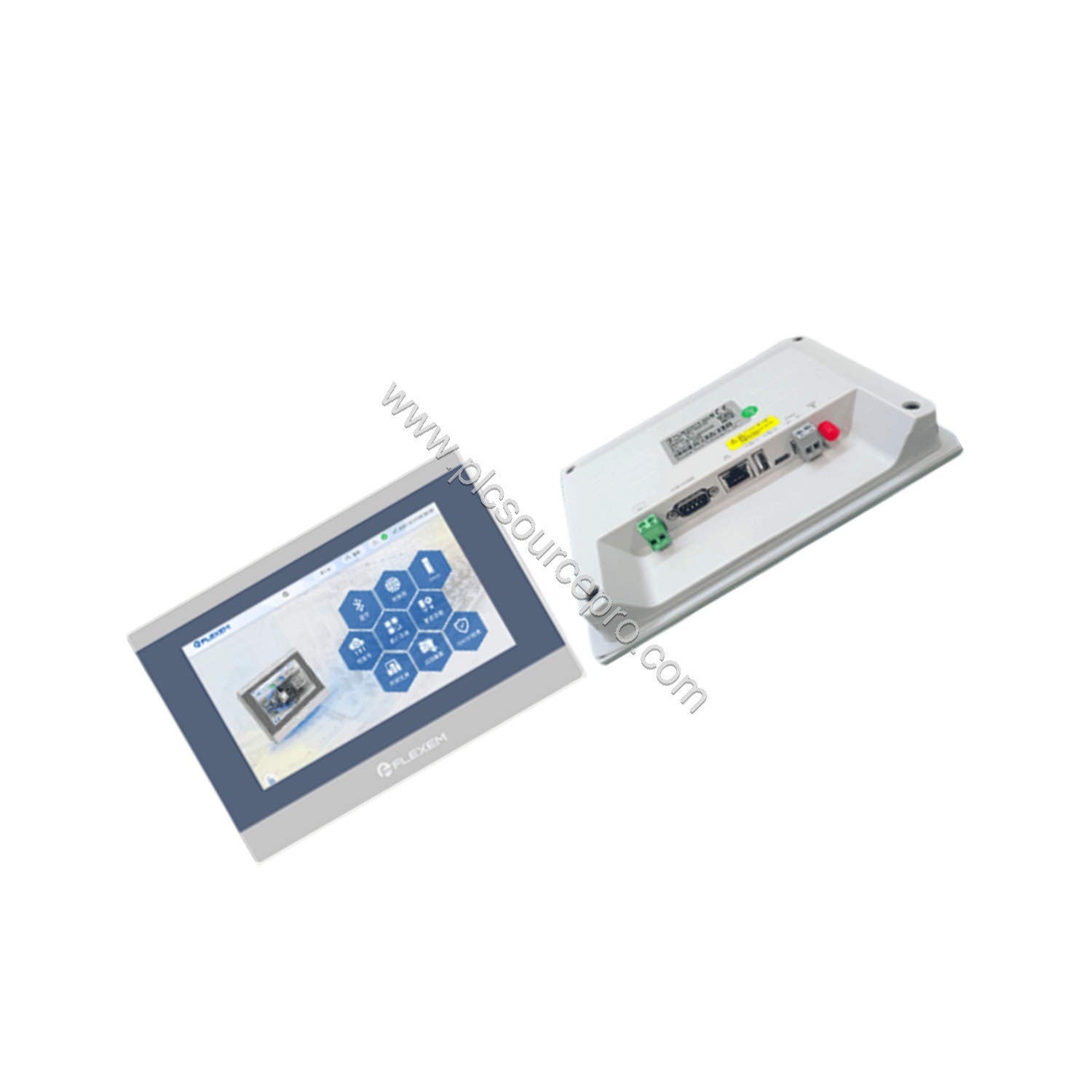

Flexem FE7370WE-4G 7-Inch HMI Industrial Automation Module

Product Overview

The Flexem FE7370WE-4G is a traditional HMI (Human-Machine Interface) designed for a wide range of industrial production scenarios. Combining a high-resolution 7-inch display with a powerful dual-core processor, this module delivers reliable performance for monitoring and control tasks. Its built-in IoT module eliminates the need for an external FLink module, simplifying IoT engineering and reducing overall system complexity.

With a robust feature set including multiple communication ports, edge computing capabilities, and broad network protocol support, the FE7370WE-4G serves as a versatile control panel in modern automation environments.

Key Specifications

The Flexem FE7370WE-4G packs essential specifications into a compact, panel-mount enclosure:

• Display: 7” 16:9 TFT LCD with 1024 × 600 resolution, 24-bit color, and 350 cd/m² brightness.
• Touch Panel: 4-wire industrial resistive touchscreen for reliable operation in demanding settings.
• Processor: 1 GHz dual-core Cortex-A7 CPU.
• Memory: 4 GB eMMC storage and 256 MB DDR3 RAM.

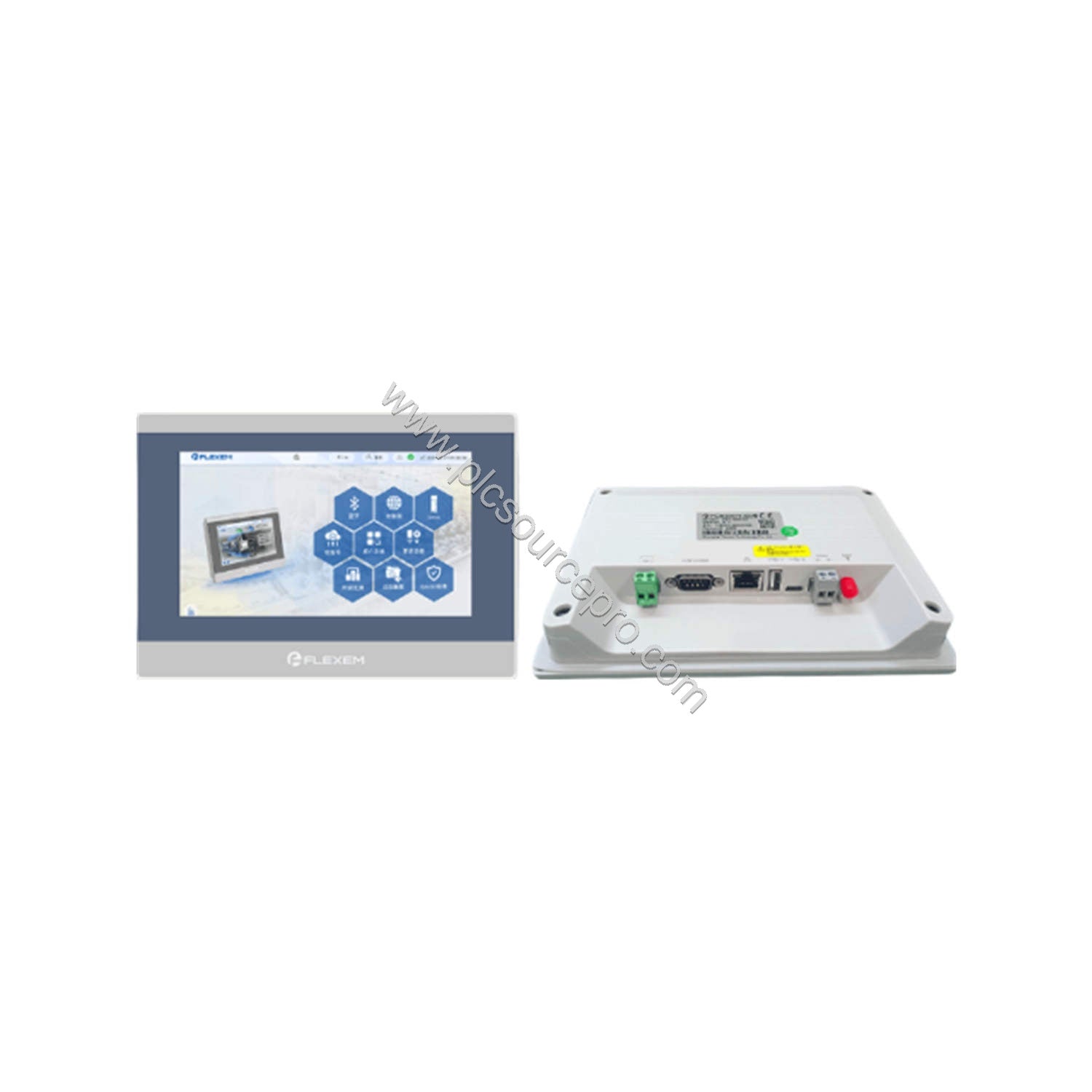

• Connectivity: 1× Ethernet (10/100 M), 1× USB Type-C OTG, 1× USB Type-A, and serial ports (COM1: RS232/RS485/RS422; COM2: RS485; COM3: RS232).
• IoT: Built-in 4G module supporting LTE FDD bands B1/B3/B5/B8 and LTE TDD bands B38/B39/B40/B41, plus Ethernet access.
• Edge Computing: Supports 20 points of script programming for local data processing.
• Data Handling: Monitors 300 data points, 100 alarm notifications, and 30 historical data points.
• Protocol Support: Works with over 100 industrial device protocols for broad compatibility.
• Power: Rated 24 VDC (operating range 9–28 VDC), power consumption <10 W, with lightning surge protection and <5 ms power interruption tolerance.
• Environmental: Operating temperature 0–50 °C, storage -20–60 °C, humidity 10–90% RH non-condensing, and vibration endurance 10–25 Hz (2 G, 30 min per axis).
• Protection: Front panel IP65 (NEMA), rear IP20.
• Certifications: CE, RoHS.

Applications & Use Cases

The Flexem FE7370WE-4G is well-suited for applications that require a local operator interface with remote monitoring capabilities. Typical uses include:

• Machine Control Panels: Mount on CNC machines, packaging equipment, or assembly lines to provide a clear, responsive touch interface for operators.
• Process Monitoring: In water treatment or HVAC systems, the FE7370WE-4G displays real-time data from PLCs and sensors, with alarm notifications for abnormal conditions.
• Remote Asset Management: Leverage the built-in 4G IoT module to monitor equipment in distributed sites (e.g., pumping stations, solar farms) without a wired network, reducing installation costs.

Thanks to its edge computing capability, the module can execute simple scripts to pre-process data locally, reducing latency and cloud dependency.

Installation & Setup

Mounting the FE7370WE-4G is straightforward. The panel cutout size is 190 × 136 mm, and the unit measures 204 × 145 × 34 mm (about 472 g). Follow these steps:

1. Prepare a panel opening of 190 × 136 mm and ensure sufficient clearance behind the panel.
2. Insert the HMI from the front, ensuring the gasket seals properly to maintain IP65 rating.
3. Secure the unit using the provided mounting clips (not included; refer to the manual for torque specifications).
4. Connect power (24 VDC) to the terminal block, observing polarity.
5. For programming, use the USB slave port (Type-C) or Ethernet. Download your project via USB flash drive, Ethernet, or USB slave mode.
6. For IoT functionality, insert a SIM card (if applicable) and configure the network settings via the built-in interface.

Always verify the power supply voltage is within the 9–28 VDC range to avoid damage.

Maintenance & Reliability

The FE7370WE-4G is designed for long service life. However, routine checks ensure optimal performance:

• Inspect the front gasket periodically for wear to maintain IP65 protection.
• Clean the touchscreen with a soft, dry cloth; avoid abrasive cleaners.
• Check that ventilation openings (if any) are not blocked, though the unit is fanless.
• Verify that the 4G antenna is properly connected and the SIM card is seated correctly.
• For environments with high UV exposure, note that the product is prohibited from operating in high UV conditions—consider shaded mounting.

With proper care, the module offers reliable operation over its intended lifespan.

Compatibility & Integration

Thanks to its support for over 100 industrial device protocols, the FE7370WE-4G can connect to a wide range of PLCs, drives, sensors, and other automation equipment. It communicates via Ethernet (Modbus TCP, etc.) and serial (RS232/RS485/RS422) interfaces. The built-in 4G and VPN passthrough features allow secure remote access, making it an excellent choice for IIoT deployments.

For programming, Flexem provides a development environment that supports script-based edge computing. The module also supports import, export, and remote update of configuration files, simplifying maintenance across multiple units.

Selection Guide & Purchasing Advice

Before purchasing the FE7370WE-4G, consider your specific requirements:

• Ensure that the 4G frequency bands (B1/B3/B5/B8 for FDD; B38/B39/B40/B41 for TDD) are supported by your local carrier.
• Verify that your existing control system is compatible with the module's communication ports (Ethernet, RS232, RS485, RS422).
• Check the panel cutout dimensions to confirm it fits your enclosure.
• If you need to program the HMI, confirm that you have the necessary software license (not included).

For reliable sourcing and competitive pricing, consider PLC Source PRO as your trusted supplier of industrial automation components.
