Product Overview

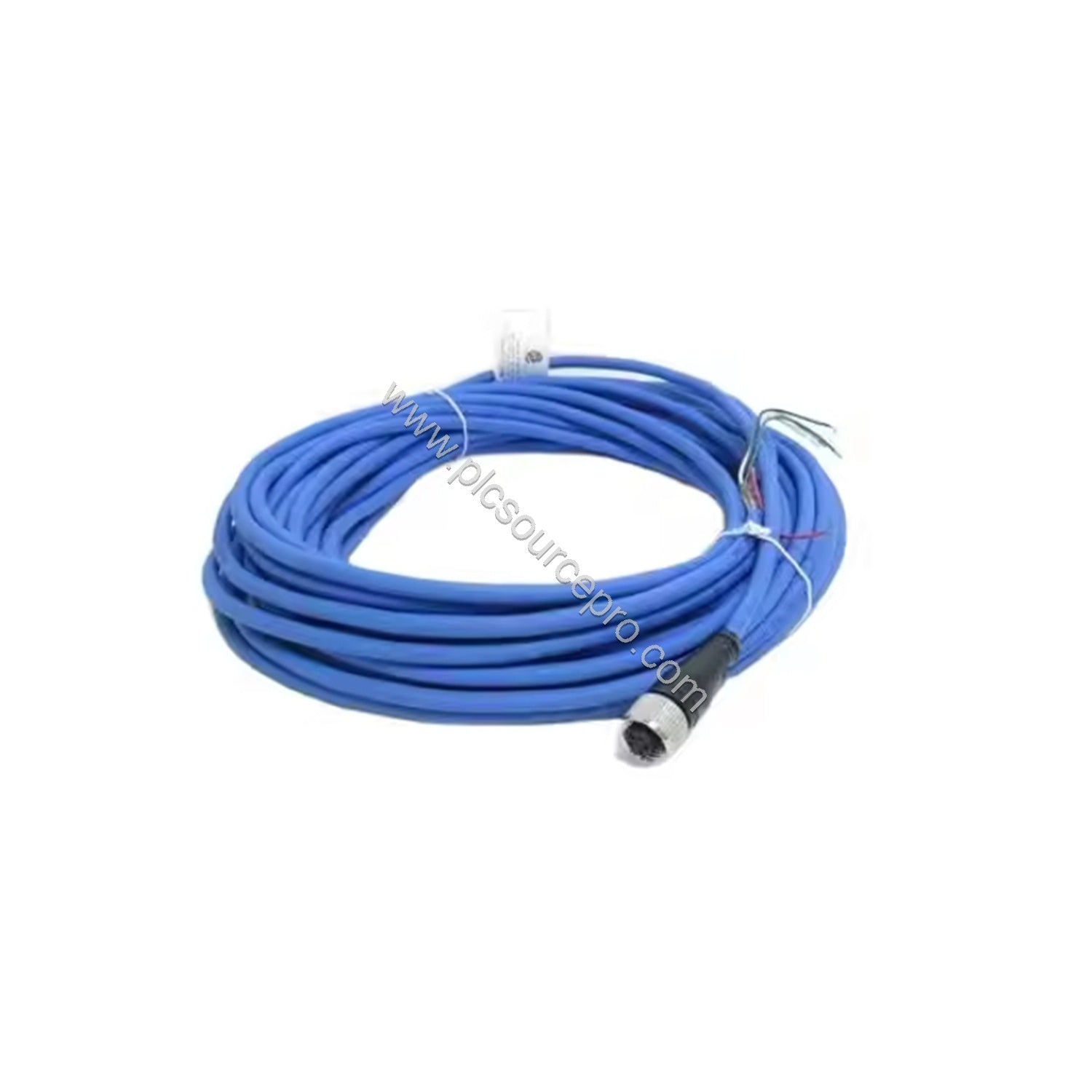

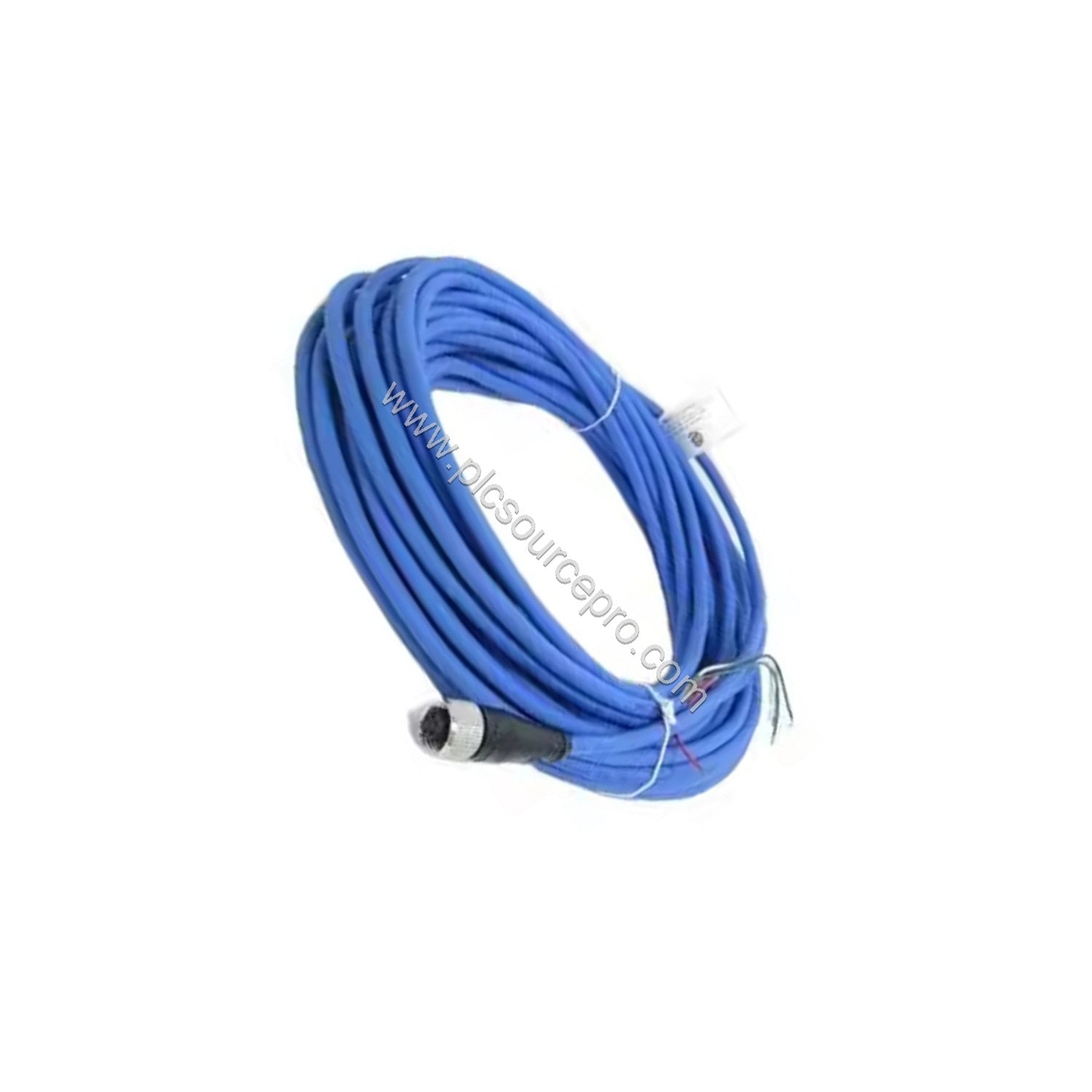

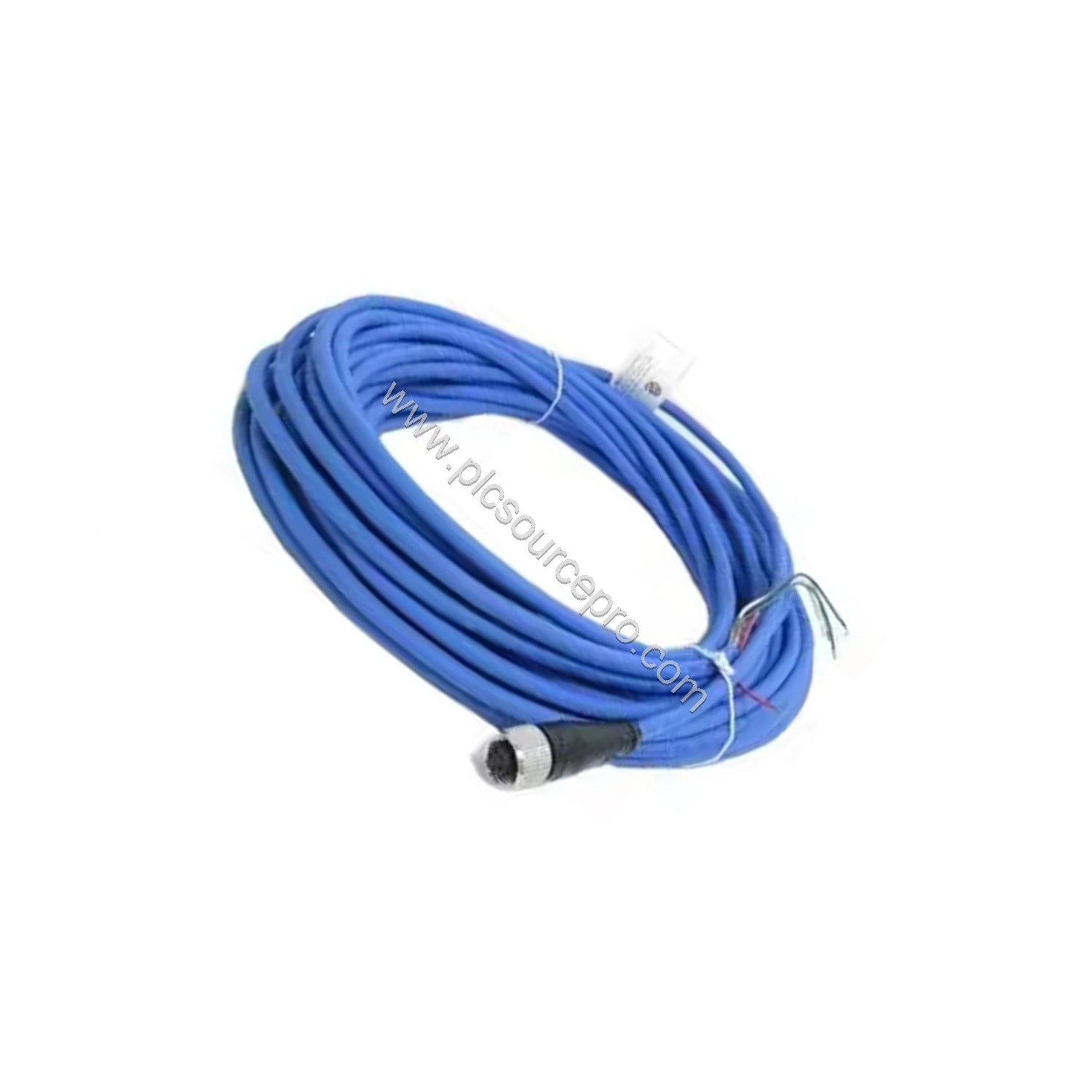

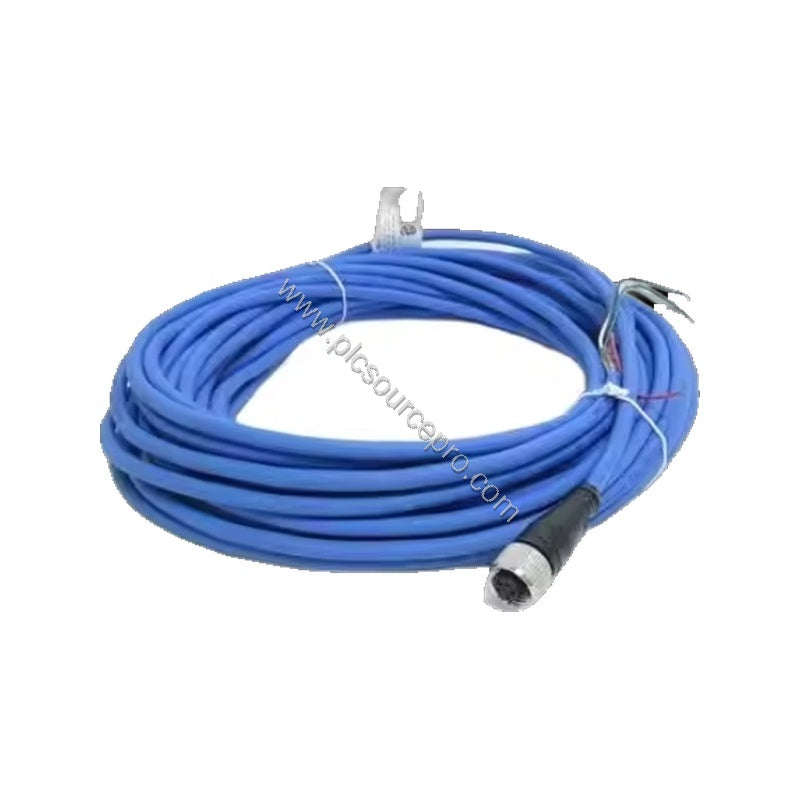

In rotating machinery monitoring, a reliable cable is as critical as the sensor itself. The Bently Nevada 200152-15-00 Accelerometer Interface Standard Cable delivers consistent signal transmission for vibration monitoring systems. Engineered as a 4-conductor, 22 AWG assembly with braided shield and drain wire (85% coverage minimum), this cable ensures minimal signal degradation even in electrically noisy industrial environments. The PVC outer jacket and nickel-plated coupling nuts provide robust mechanical protection, while the molded connectors with IP67 sealing keep moisture and contaminants out—a key factor for long-term reliability in harsh plant conditions.
This 15-meter cable connects accelerometers to monitoring hardware, with the connector on the accelerometer end only, simplifying installation in tight spaces. The Bently Nevada 200152-15-00 is part of the 200151 series, designed specifically for accelerometer interface applications.
Technical Specifications
The following parameters define the performance and physical characteristics of the Bently Nevada 200152-15-00. These values are directly from the manufacturer's data.
| Specification |
Value |
| Cable Length |
15 meters |
| Minimum Bend Radius |
73.7 mm (2.9 in) |
| Operating Temperature Range |
-20 °C to +100 °C (-4 °F to +212 °F) |
| Construction |
4-conductor, 22 AWG with braided shield and drain wire (85% coverage, minimum), PVC outer jacket. Nickel-plated coupling nuts. |
| Seal |
Connectors provide an IP67 seal to transducers and mating hardware. Connectors are molded to the cable. The addition of DC4 electrical insulating compound provides additional protection against moisture during thermal shock. |
| DC4 Temperature Range |
-55 °C to +121 °C (-67 °F to +250 °F) |
| DC4 Cure Time |
24 hours |
Note: These cables may be used at lower temperatures if the installation prevents flexing or bending. Flexing below -20 °C may damage the cable.
Key Benefits for Your Application
-
Signal Integrity: The braided shield and drain wire (85% coverage) protect against electromagnetic interference, ensuring accurate vibration data.
-
Environmental Resistance: IP67-rated molded connectors and the DC4 insulating compound offer superior moisture protection, reducing the risk of corrosion and short circuits.
-
Flexibility and Durability: The 15-meter length provides installation flexibility, while the PVC jacket and nickel-plated nuts withstand industrial wear.
-
Simplified Ordering: The -15 suffix indicates the 15-meter length, and -00 indicates the standard coupling nut, making specification easy.
Industry Applications
The Bently Nevada 200152-15-00 is ideal for vibration monitoring in critical rotating equipment such as turbines, compressors, pumps, and motors. In petrochemical plants, where moisture and temperature extremes are common, the IP67 seal and wide operating temperature range (-20 °C to +100 °C) ensure uninterrupted operation. Similarly, in power generation facilities, the cable's robust construction maintains signal fidelity over long runs, supporting predictive maintenance programs. Its compatibility with Bently Nevada accelerometers makes it a drop-in replacement for existing installations, minimizing downtime during retrofits.
Installation & Setup Guidance
Proper installation extends cable life and maintains measurement accuracy. Observe the minimum bend radius of 73.7 mm (2.9 in) to prevent internal conductor damage. Avoid flexing the cable below -20 °C (-4 °F); if lower temperatures are expected, secure the cable to prevent movement. When mating connectors, ensure they are fully tightened to achieve the IP67 seal. The connector is located on the accelerometer end only, so plan routing accordingly. Do not pull on the cable to move equipment—use strain relief.
Maintenance & Reliability
Routine inspection of the Bently Nevada 200152-15-00 focuses on the cable jacket and connectors. Look for cuts, abrasions, or chemical exposure that could compromise the PVC jacket. Check coupling nuts for tightness and signs of corrosion (though nickel plating resists this). The molded connectors provide a permanent seal, but if the DC4 compound is exposed, verify its integrity—its temperature range (-55 °C to +121 °C) exceeds the cable's operating range, so it remains effective. Regular checks every 6-12 months, or during scheduled machine shutdowns, help prevent unexpected failures.
Selection Guide & Purchasing Advice
Before ordering, confirm your accelerometer's connector type and required cable length. The Bently Nevada 200152-15-00 is a 15-meter cable; other lengths are available in the 200151 series. Verify the coupling nut style (-00 standard) matches your sensor. For custom lengths or specialized connectors, consult the manufacturer's documentation. As a trusted supplier of industrial automation spares, PLC Source PRO ensures genuine Bently Nevada components, backed by responsive support.
