Product Overview
The Bently Nevada 200150-15-05 is a General Purpose Trendmaster 2000 or Trendmaster Pro Accelerometer, engineered for reliable vibration monitoring in industrial rotating machinery. This industrial automation module delivers precise acceleration measurements with a sensitivity of 10.2 mV/(m/s²) (100 mV/g) at 80 Hz, making it an essential component for predictive maintenance programs.

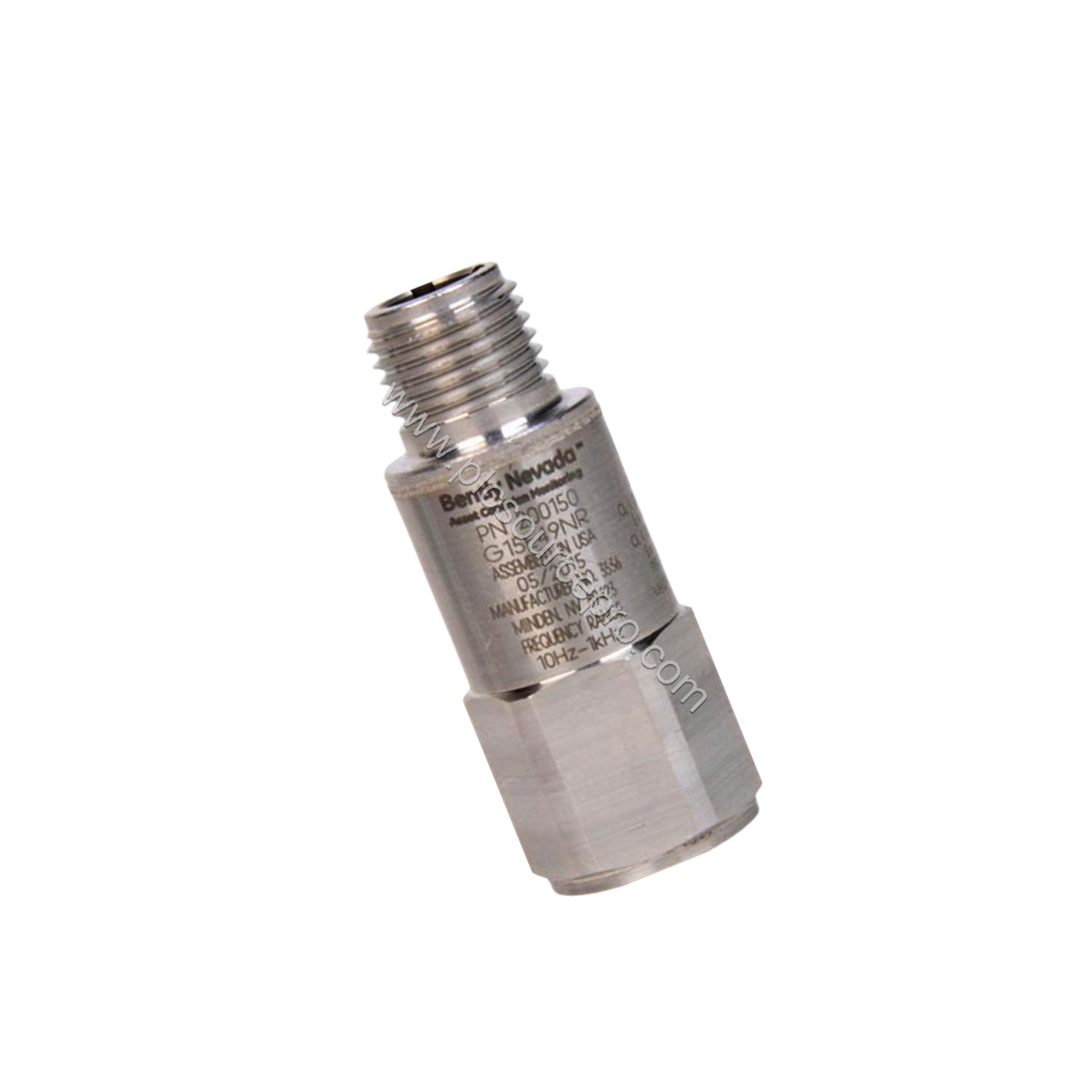

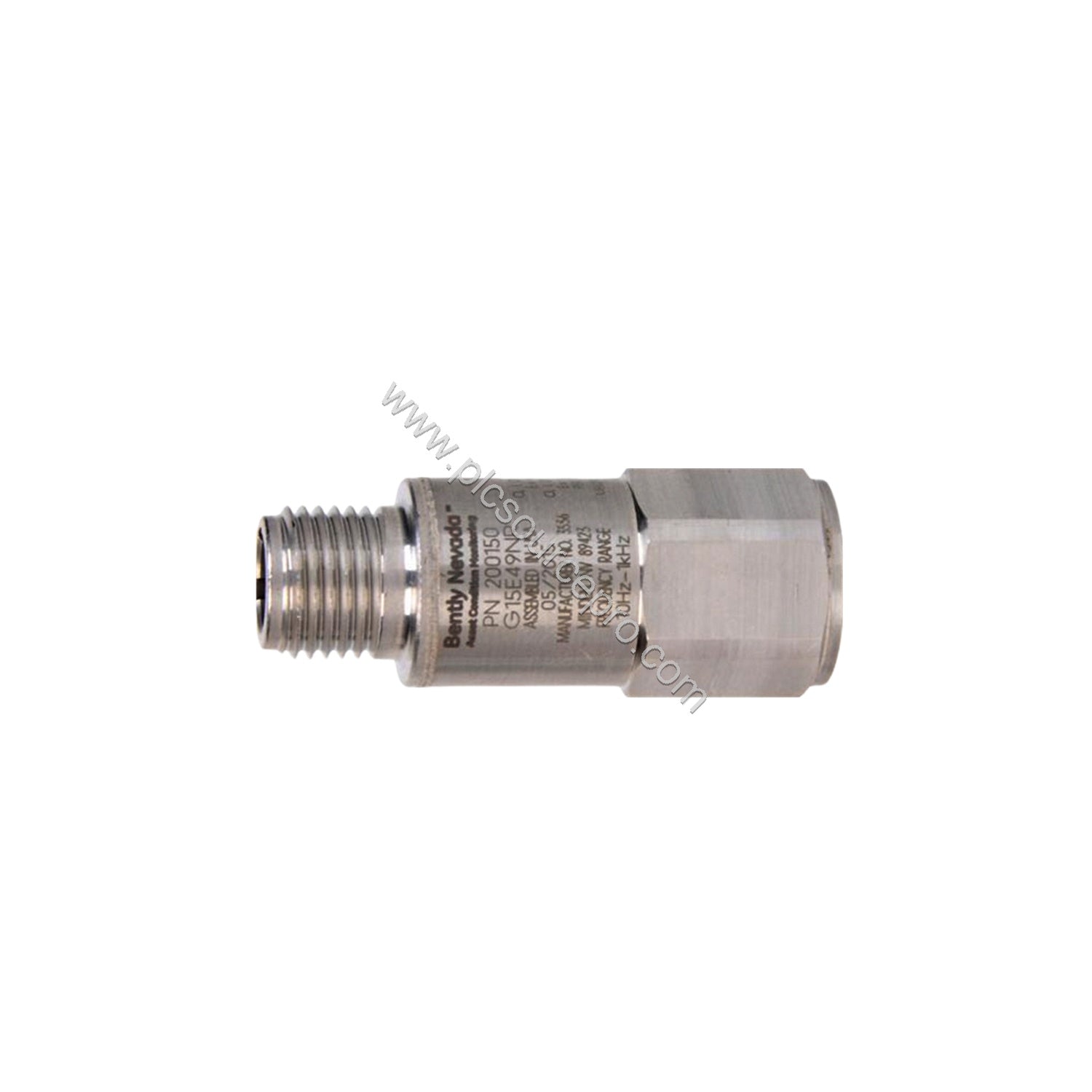

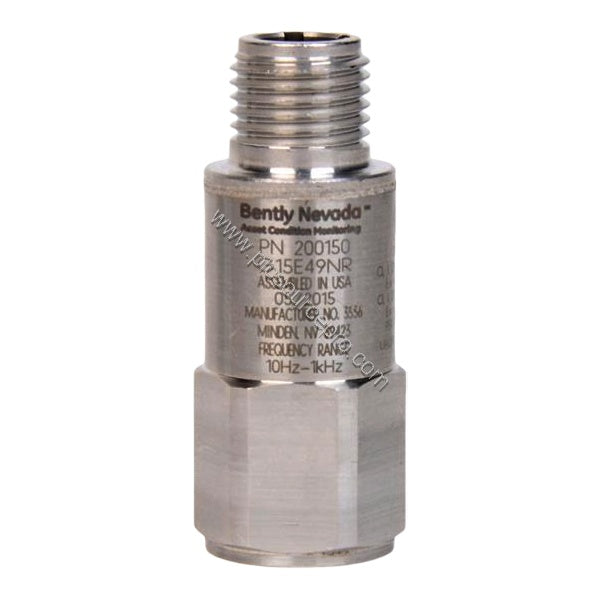

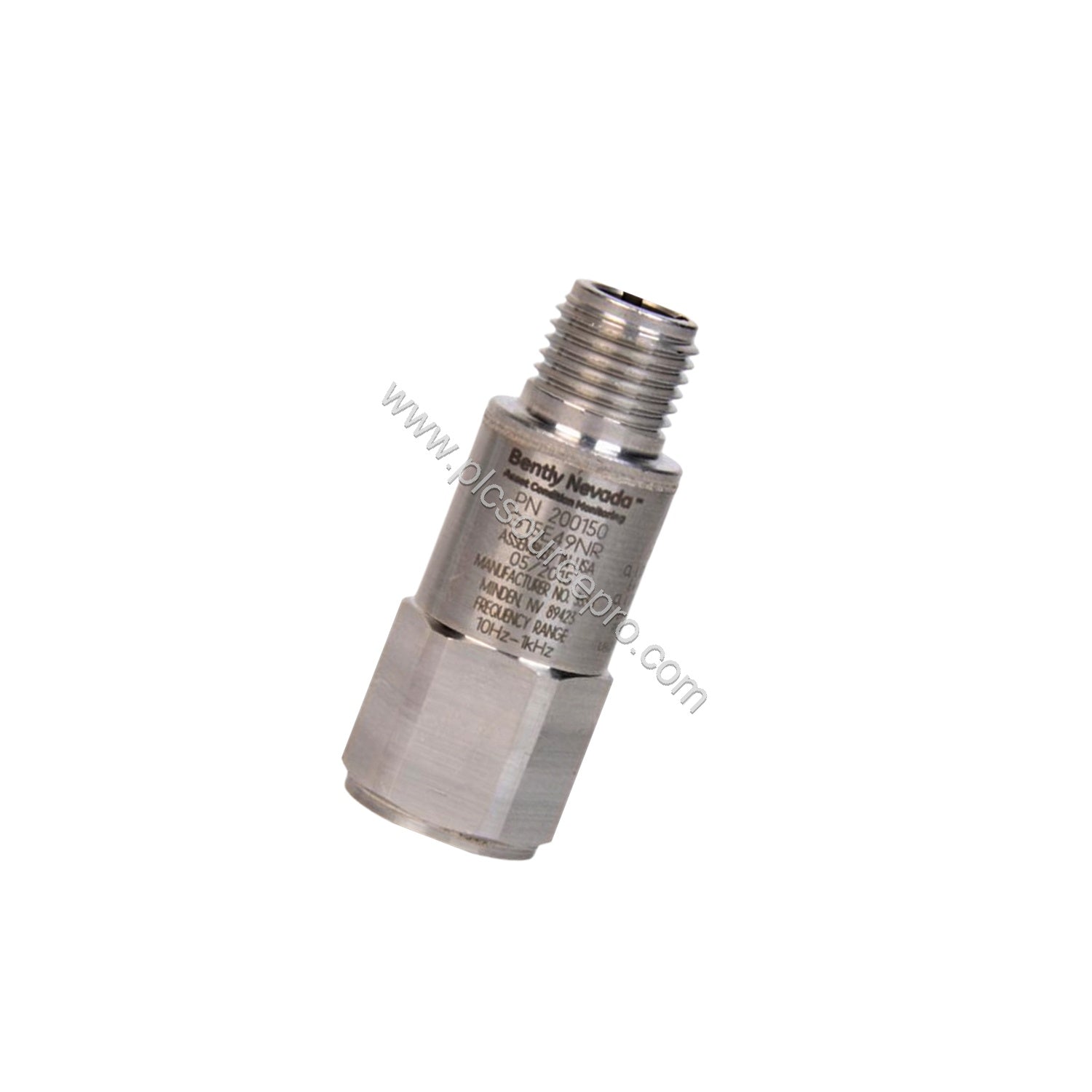

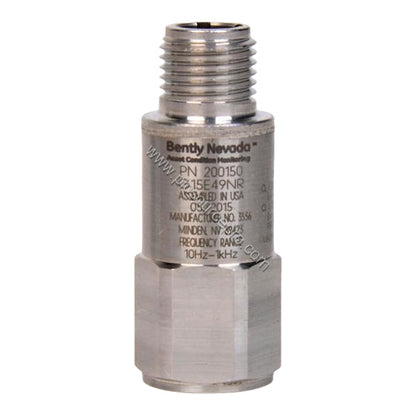

Manufactured in the USA, the 200150-15-05 features a 3/8-24 to 3/8-16 UNC mounting stud with a 3/4-inch hex, and carries multiple approvals including CSA, ATEX, and IECEx. Its rugged 316L stainless steel housing ensures durability in harsh environments, while the shear-mode ceramic sensing element provides stable, accurate readings.
Technical Specifications
All specifications are measured at +25°C (+77°F) unless otherwise noted. The following table summarizes the key parameters of the Bently Nevada 200150-15-05.
| Parameter |
Value |
| Sensitivity @ 80 Hz (±12%) |
10.2 mV/(m/s²) (100 mV/g) |
| Measurement Range |
±245 m/s² (±25 g) |
| Frequency Range (referenced to 80 Hz, ±10%) |
10 to 1000 Hz (600 to 60,000 cpm) |
| Mounted Resonant Frequency |
>20 kHz (>1200 kcpm) |
| Amplitude Linearity (1 to 10 g pk) |
±2% |
| Transverse Sensitivity |
≤7% |
| Settling Time (within 5% of bias) |
≤300 ms |
| Excitation Voltage |
4.7 to 5.5 Vdc |
| Quiescent Current |
<800 µA |
| Output Bias Voltage |
+2.5 ± 0.23 Vdc |
| Axial Shock Limit |
49,050 m/s² pk (5,000 g pk) |
| Temperature Range |
-40 °C to +105 °C (-40 °F to +221 °F) |
| Sealing (Hermetic) |
5×10⁻⁸ atm·cc/s (3.1×10⁻⁹ atm·in³/s), max |
| Relative Humidity |
100% relative, condensing, non-submerged |
| Size (Hex × Height) |
17.5 mm × 45.7 mm (11/16 in × 1.8 in) |
| Weight |
58 g (2.0 oz), typical |
| Mounting Thread |
3/8-24 female |
| Mounting Torque |
2.7 to 6.8 N·m (2 to 5 ft·lbf) |
| Sensing Element |
Ceramic |
| Sensing Geometry |
Shear |
| Housing Material |
316L stainless steel |
These specifications confirm the 200150-15-05 as a versatile and reliable choice for general-purpose vibration monitoring.
Industry Applications
The Bently Nevada 200150-15-05 is designed for use with ProTIM Option Standard Acceleration-to-Velocity channel type (-01). It is ideal for a wide range of general applications, including:
- Monitoring pumps, fans, and compressors in process industries.
- Vibration analysis on motors and generators in power plants.
- Condition monitoring of rotating equipment in manufacturing facilities.
Its wide frequency range (10 to 1000 Hz) and high sensitivity make it suitable for detecting both low-speed and high-speed machinery faults. The rugged construction ensures reliable operation even in demanding environments.
Installation & Setup
Proper installation is critical to achieving accurate measurements. Follow these guidelines for the Bently Nevada 200150-15-05:
- Mount the accelerometer using the 3/8-24 female thread with a mounting torque of 2.7 to 6.8 N·m (2 to 5 ft·lbf).
- Ensure the mounting surface is flat, clean, and free of debris to maximize contact and frequency response.
- Use the integrated stud (3/8-24 to 3/8-16 UNC) for secure attachment to the machine.
- Connect the sensor to the ProTIM channel, observing polarity: SIG+ positive with respect to SIG-.
- Allow the sensor to settle for at least 300 ms after power-up before taking readings.
Correct installation minimizes measurement errors and extends sensor life.
Maintenance & Reliability
The 200150-15-05 is built for long-term reliability, but routine checks can prevent unexpected failures:
- Inspect the cable and connector periodically for wear or damage.
- Verify that the mounting torque remains within the specified range.
- Check for any signs of corrosion on the stainless steel housing, especially in humid or corrosive environments.
- Recalibrate the sensor periodically to ensure accuracy, as with any precision instrument.
Following these practices ensures consistent performance and extends the service life of the accelerometer.
Compatibility & Integration
The Bently Nevada 200150-15-05 is specifically designed for use with Trendmaster 2000 and Trendmaster Pro systems. It works with the ProTIM option for standard acceleration-to-velocity channel type (-01). This compatibility ensures seamless integration into existing Bently Nevada monitoring architectures. Always verify system compatibility before ordering.
Selection Guide
When selecting the Bently Nevada 200150-15-05, consider the following:
- Confirm that the mounting stud option (15) matches your installation requirements.
- Verify that the approvals (05: CSA, ATEX, IECEx) meet your site's regulatory standards.
- Ensure the operating temperature range (-40 °C to +105 °C) suits your environment.
- Check that the excitation voltage (4.7 to 5.5 Vdc) is available in your system.
For reliable sourcing and expert support, PLC Source PRO offers genuine Bently Nevada parts with fast shipping. Contact us for availability and pricing.
