Allen-Bradley 1746-IO4 SLC 500 Digital Combination I/O Module

Product Overview

The Allen-Bradley 1746-IO4 is a digital combination I/O module from the SLC 500 series, designed to deliver reliable mixed input and output control in a single unit. This module integrates 2 input channels and 2 output channels, each arranged in one common group, simplifying wiring and saving panel space. With an operating voltage range of 85–132 Volts AC, the 1746-IO4 handles typical 120V AC industrial signals efficiently.

As part of the Rockwell Automation family, the 1746-IO4 offers the ruggedness and precision expected in demanding automation environments. Its compact form factor and LED status indicators provide quick visual feedback, while the self-lifting pressure plates accept two 14 AWG (2 mm) wires per terminal for secure connections.

Technical Specifications

These specifications ensure the 1746-IO4 integrates seamlessly into SLC 500 systems, providing dependable digital I/O for a range of industrial processes.

Key Features & Benefits

• Combined I/O Design: 2 inputs and 2 outputs in one module reduce component count and wiring complexity.
• Wide Operating Voltage: Accepts 85–132 VAC, making it compatible with standard 120V AC control circuits.
• Robust Output Capability: Handles up to 1.5 amps per output at 120 VAC, suitable for driving relays, contactors, and small loads.
• Fast Signal Response: Signal delay of 35–45 ms ensures timely process control.
• LED Status Indicators: Front-mounted LEDs display input status for quick diagnostics.
• Secure Wiring: Self-lifting pressure plates accept two 14 AWG (2 mm) wires per terminal, ensuring reliable connections.

Industry Applications

The 1746-IO4 excels in applications requiring mixed AC I/O, such as packaging machinery, material handling systems, and small assembly lines. Its ability to handle both inputs and outputs makes it ideal for retrofitting older control panels where space is limited.

In a typical conveyor system, the 1746-IO4 can monitor limit switches (inputs) and control motor starters (outputs) simultaneously, reducing the need for separate modules. Its robust design also suits harsh environments with temperature variations from -25°C to 60°C.

Installation & Setup

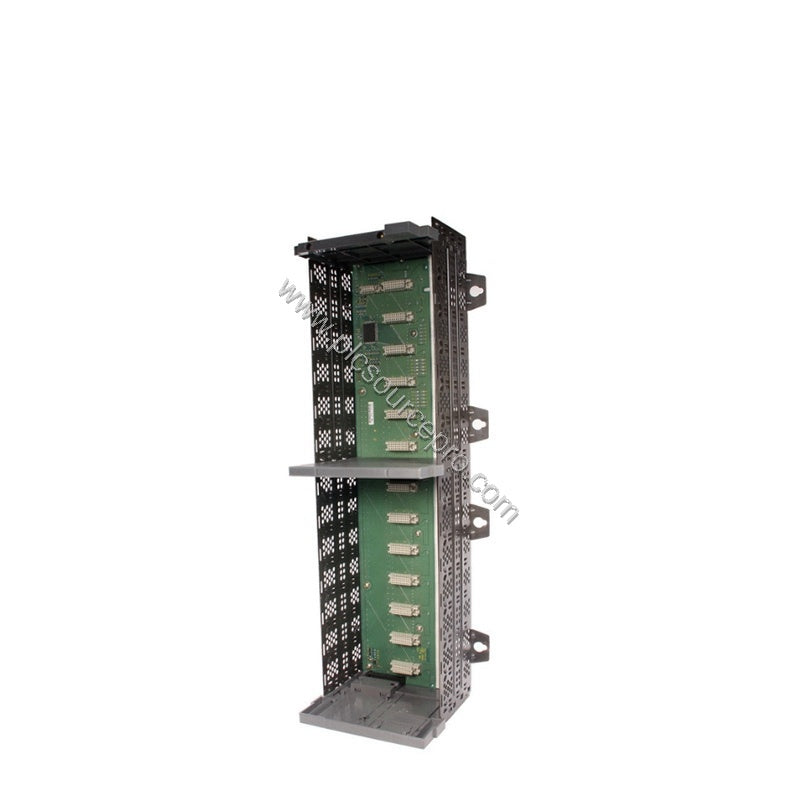

Mount the 1746-IO4 into any SLC 500 chassis. Ensure the backplane connector aligns properly and the locking tab secures the module. Wire inputs and outputs using 14 AWG (2 mm) wire, inserting each conductor into the self-lifting pressure plate and tightening the screw to clamp the wire firmly.

For input wiring, route power separately from the I/O device cable to prevent noise interference. Verify that the operating voltage stays within 85–132 VAC. After wiring, power up the system and check the LED indicators to confirm correct signal presence.

Maintenance & Reliability

Regularly inspect terminal connections for tightness and signs of corrosion. Keep the module free from dust and moisture; the operating humidity range is 5% to 95% non-condensing. The module's operating temperature range of -25°C to 60°C makes it suitable for most industrial settings.

With no moving parts, the 1746-IO4 requires minimal maintenance. Periodic cleaning of the front panel and checking LED functionality can extend service life and prevent unexpected downtime.

Compatibility & Integration

The 1746-IO4 integrates seamlessly with SLC 500 processors and other 1746-series modules. It communicates over the backplane, allowing the processor to read input states and control outputs directly. No additional communication adapters are needed for basic operation.

This module is compatible with a wide range of SLC 500 chassis and power supplies, making it a versatile choice for both new installations and system expansions.

Selection Guide & Purchasing Advice

Before purchasing, verify your system's backplane current capacity. The 1746-IO4 draws 25–30 mA from the backplane, which is well within typical SLC 500 limits. Confirm the operating voltage matches your control circuit (85–132 VAC).

For reliable supply and genuine parts, consider PLC Source PRO. We stock the 1746-IO4 and offer fast shipping to minimize downtime.
