Product Overview

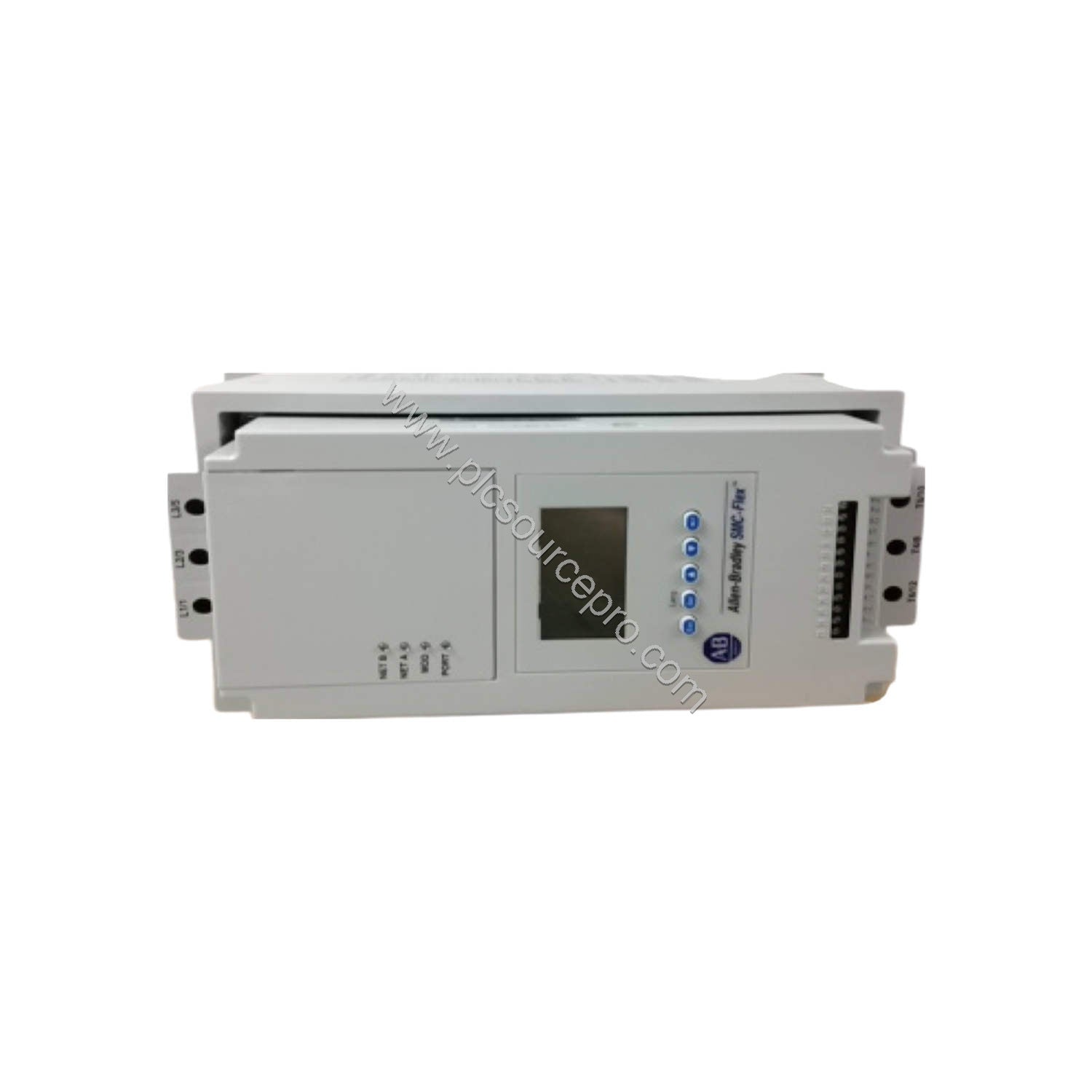

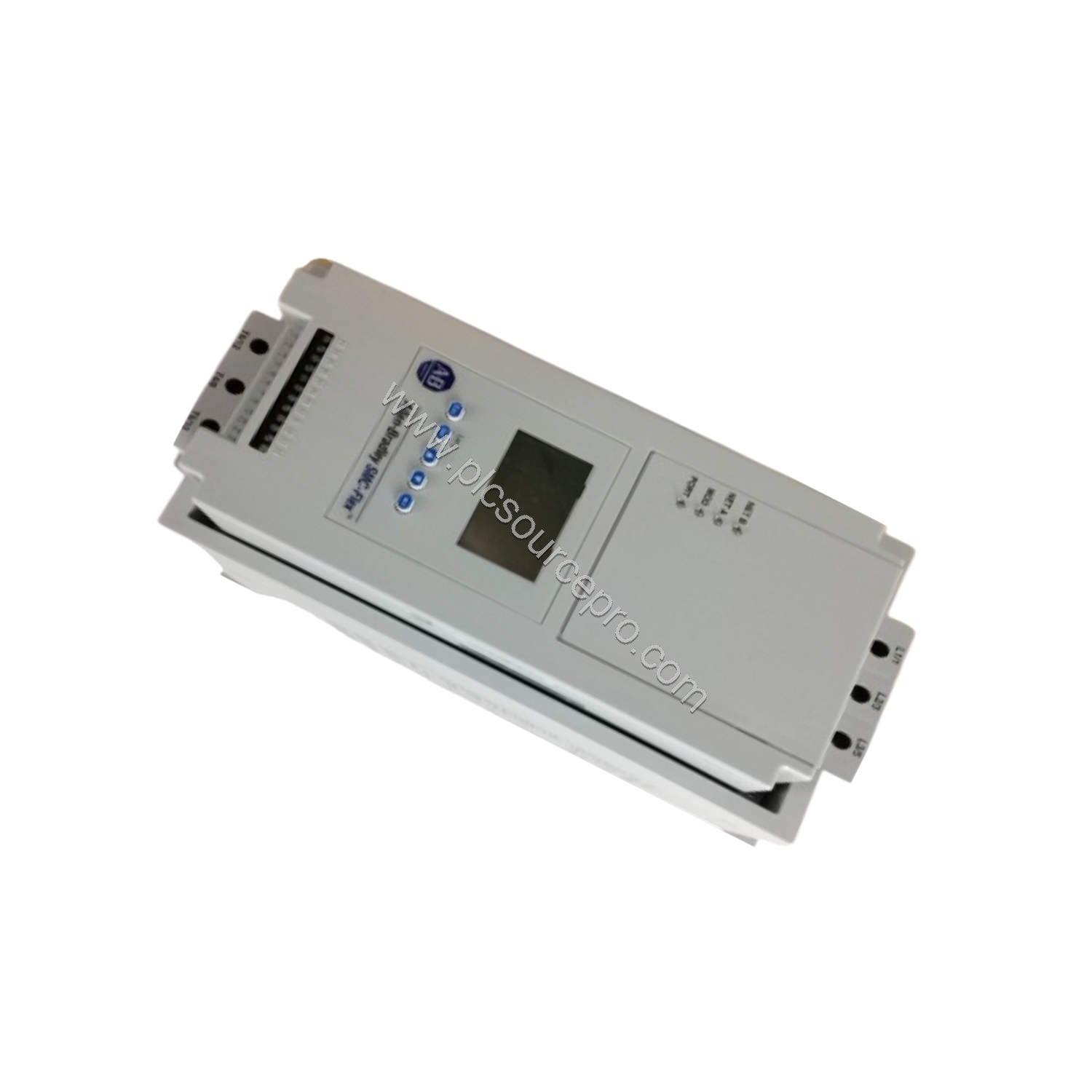

The Allen-Bradley 150-F60NBD is a SMC Flex Smart Motor Controller designed to protect and control three-phase induction motors. This solid-state soft starter reduces mechanical stress during startup and provides comprehensive motor protection, extending equipment lifespan and minimizing downtime.
Part of the SMC Flex family, the 150-F60NBD delivers reliable performance for demanding industrial applications. Its microprocessor-based design enables multiple starting and stopping modes, ensuring smooth operation and energy savings.
Technical Specifications
| Specification |
Value |
| Manufacturer |
Allen-Bradley |
| Category |
Drives |
| Product Line |
SMC-Flex |
| Part Number |
150-F60NBD |
| UPC |
781180617454 |
| Weight |
13.00 lbs (5.90 kg) |
| Controller Rating |
60 A, 40 Hp @ 460V AC |
| Input Line Voltage |
200-460V AC, 3-phase, 50 and 60 Hz |
| Control Voltage |
120 / 240 VAC |
| Rated Voltage |
200-460V AC |
| Enclosure Type |
Open |
Key Features & Benefits
- Reduces mechanical stress during motor starts, extending motor life.
- Seven starting and stopping modes: soft start, soft stop, current limit, dual ramp, full voltage, preset slow speed, and linear speed acceleration.
- Built-in electronic motor overload protection and SCR bypass/run contactor.
- Four fully programmable auxiliary contacts for flexible monitoring.
- Integrated LCD with keypad for local configuration.
- Supports network communication via optional adapters (RS485, ControlNet, Ethernet, Profibus, HVAC).
- Detects faults such as phase reversal, voltage unbalance, undervoltage, overvoltage, stall, jam, underload, overload, and more.
Industry Applications
The 150-F60NBD is ideal for conveyors, pumps, fans, compressors, and other constant-torque or variable-torque loads. Its ability to interface with PLCs and SCADA systems makes it suitable for automated production lines, HVAC systems, and water treatment facilities.
For example, in a conveyor system, the soft start reduces belt jerk and product spillage, while the soft stop prevents load shift. In pump applications, the controller minimizes water hammer and pressure surges, protecting piping and valves.
Installation & Setup Guidance
Mount the open-type controller in a clean, dry, well-ventilated enclosure with adequate clearance for airflow. Ensure the input line voltage matches the motor rating and that the control voltage is correctly wired (120 or 240 VAC). Connect the motor to the load terminals using appropriate lug sizes. Configure the controller via the front keypad or through a connected network adapter. Verify all fault and auxiliary settings before startup.
Maintenance & Reliability
Regularly inspect the controller for dust accumulation, loose connections, and signs of overheating. Check ambient temperature conditions (23–122°F operating, -4–167°F storage) and ensure proper ventilation. Periodically test the protective functions and verify that all auxiliary contacts are functioning. Routine maintenance helps prevent unexpected failures and prolongs service life.
Integration & Compatibility

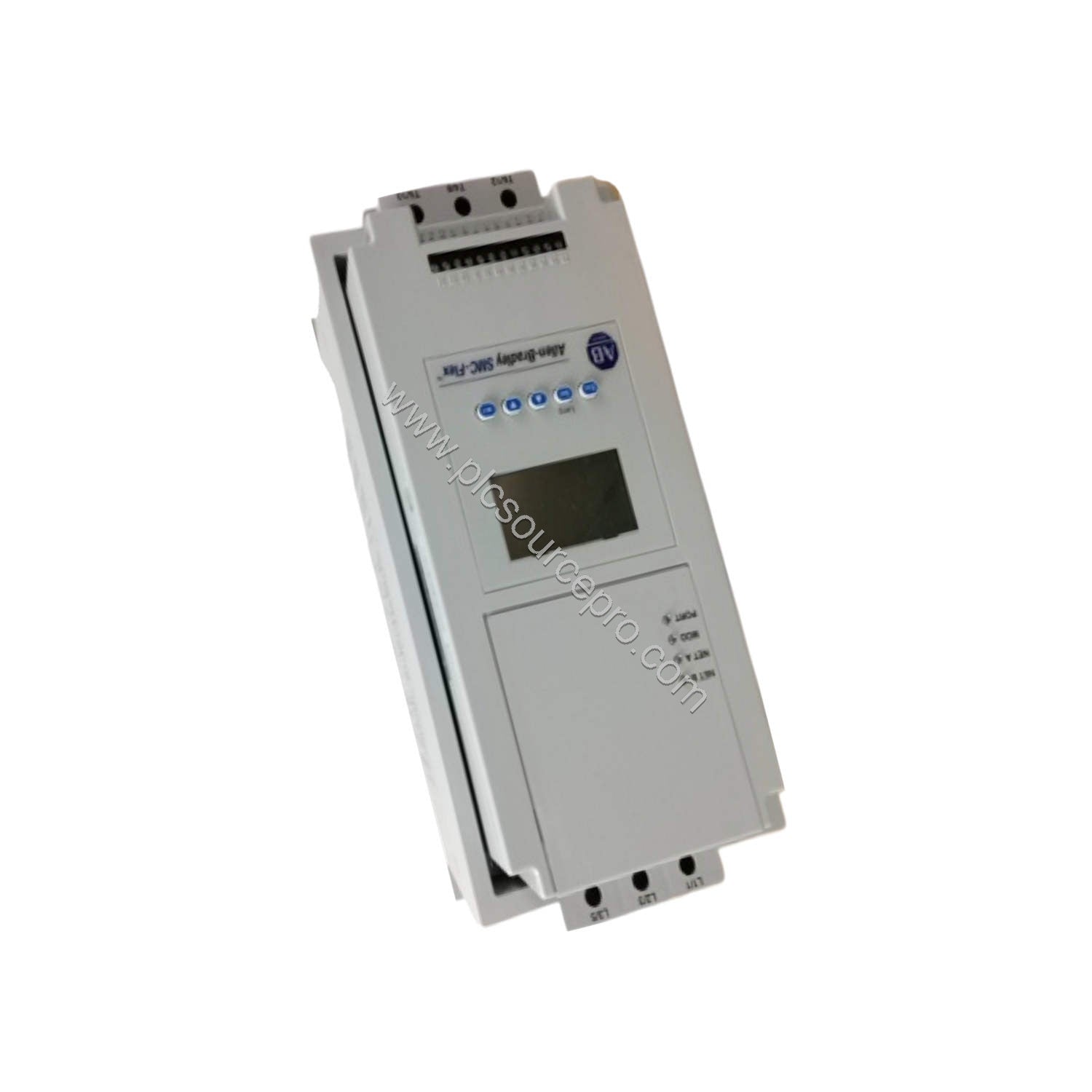

The 150-F60NBD integrates seamlessly with Allen-Bradley PLCs and other control systems through its DPI port, allowing connection of HIM modules and communication adapters. It supports line and Delta connected motors and standard three-phase squirrel cage induction motors. The control terminals accept Start, Stop, and two programmable option inputs, enabling flexible automation logic.
Selection Guide & Purchasing Advice
Before purchasing, verify that the motor's full-load current does not exceed 60 A and that the line voltage is within 200-460V AC. Confirm the required control voltage (120 or 240 VAC) and ensure the enclosure type suits your environment. For additional communication needs, select the appropriate DPI adapter. PLC Source PRO offers genuine Allen-Bradley 150-F60NBD units with fast shipping and expert support.
