22B-B033F104 Industrial Automation Module by Allen-Bradley

Product Overview

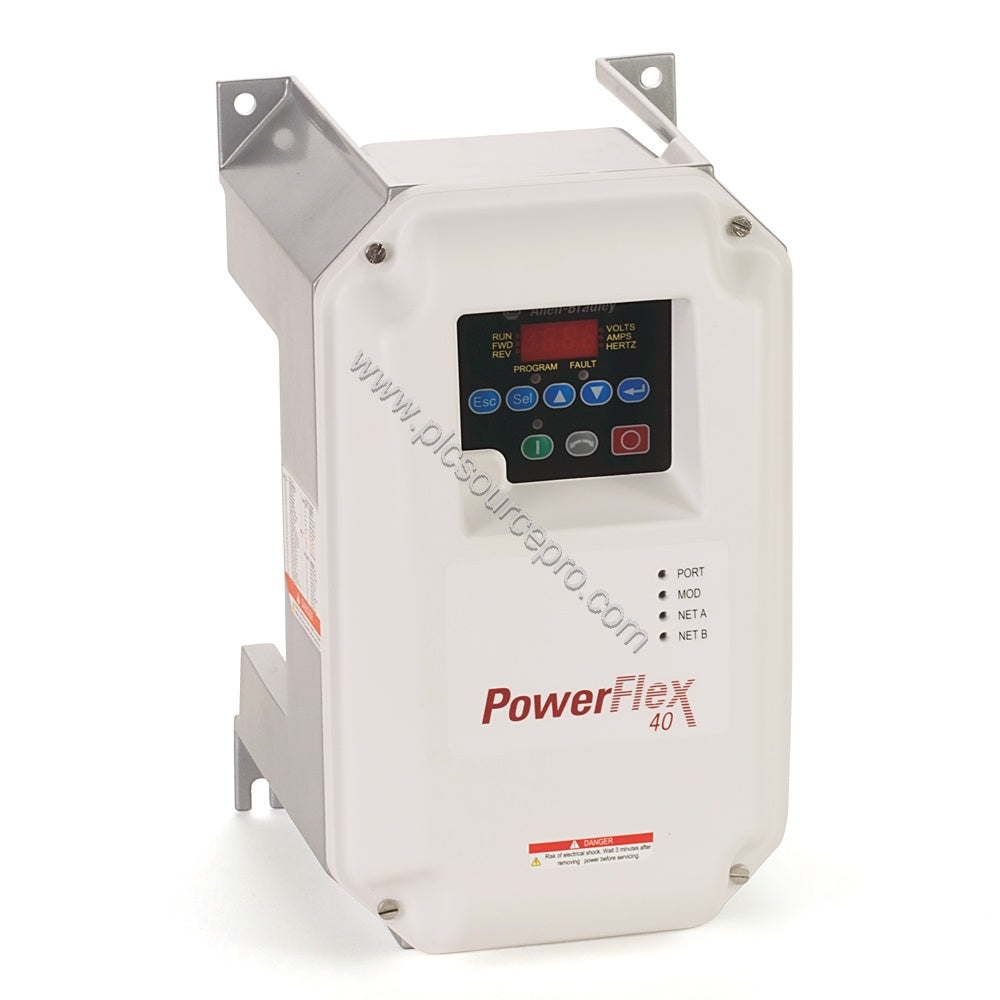

The Allen-Bradley 22B-B033F104 is a compact adjustable frequency drive from the PowerFlex 40 series, engineered for reliable 3-phase motor control in industrial environments. With a 240VAC input rating and support for up to 33 amps of output current, this drive delivers up to 10 horsepower (7.5 kW) to handle demanding applications. Its sensorless vector control ensures excellent low-speed torque, making it a versatile choice for conveyors, fans, and pumps.

Part of the PowerFlex low-voltage AC drive family, the 22B-B033F104 features an intuitive keypad interface and a straightforward programming structure, reducing setup time and simplifying maintenance. The flange-mount enclosure (IP20, NEMA/UL Type Open) allows for flexible installation options while maintaining protection against incidental contact.

Technical Specifications

Below are the key parameters for the Allen-Bradley 22B-B033F104:

Environmental and Physical Data

• Operating temperature: 0 to 60 °C (32 to 140 °F)
• Storage temperature: -40 to 85 °C (-40 to 185 °F)
• Relative humidity: 5-95% without condensation
• Weight: 1.36 kg
• Operating shock: 30 g (3 pulses, 11 ms)
• Nonoperating shock: 50 g (3 pulses, 11 ms)
• Maximum altitude: 2000 m (do not install above this)

Key Features and Benefits

• Sensorless vector control delivers high starting torque even at low speeds, improving application performance.
• Built-in fan cooling maintains optimal thermal performance for continuous operation.
• RS-485 communication enables easy integration into existing control networks.
• Keypad interface simplifies parameter configuration and monitoring.
• Compact flange-mount design saves panel space and allows for efficient heat dissipation.
• EMC compliance with EN 50081-2 and EN 50082-2 ensures reliable operation in industrial electromagnetic environments.

Industry Applications

The Allen-Bradley 22B-B033F104 is suited for a wide range of industrial automation tasks:

• Conveyor systems: Precise speed control and reliable low-speed torque keep product flow consistent.
• Pump and fan control: Variable speed operation reduces energy consumption and mechanical stress.
• Packaging machinery: The drive’s compact size and easy programming make retrofits straightforward.
• Material handling: With 33A output, it handles moderate loads with ease.

Installation and Setup Guidance

When installing the 22B-B033F104, ensure the mounting location allows adequate airflow for the cooling fan. Maintain clearance around the drive for heat dissipation. Connect input power to the R, S, T terminals and motor leads to U, V, W as per the wiring diagram. Use the keypad to set motor parameters (voltage, frequency, current) according to the motor nameplate. For RS-485 communication, terminate the network appropriately and set the node address via the keypad. Always follow local electrical codes and safety regulations.

Maintenance and Reliability

Routine inspection of the cooling fan and air filters is recommended every 6 to 12 months, depending on dust levels. Check for loose connections and verify that operating temperatures remain within the 0-60 °C range. The drive’s robust design, with shock ratings up to 30 g operating and 50 g nonoperating, ensures dependable performance in harsh industrial settings. Regular cleaning of the enclosure and ensuring the ambient environment stays within specified humidity limits will extend service life and reduce downtime.

Compatibility and Integration

The 22B-B033F104 communicates via RS-485, allowing connection to PLCs, HMIs, and other automation controllers using Modbus RTU or Allen-Bradley’s DF1 protocol. It can be integrated into existing PowerFlex networks and is compatible with common industrial control systems. For advanced monitoring, the drive can be paired with optional communication adapters (not included) to support EtherNet/IP or DeviceNet, though these are not part of the base unit.

Buying Guide

Before purchasing, verify your motor’s voltage and current requirements to ensure the 22B-B033F104 matches your application. Confirm the enclosure type (IP20 flange mount) suits your installation environment. If you need CE-compliant filtering, consider a variant with an integrated filter. For technical support or to place an order, PLC Source PRO offers genuine Allen-Bradley products with fast shipping.
