2094-SE02F-M00-S0 Industrial Automation Module by Allen-Bradley

Product Overview

The Allen-Bradley 2094-SE02F-M00-S0 control module is a key component of the Kinetix 6200 series, designed to deliver reliable servo drive control in demanding industrial environments. Built with a Sercos fiber-optic interface, this module ensures high-speed, noise-immune communication between the drive and controller. Whether you are upgrading an existing system or building a new one, the 2094-SE02F-M00-S0 provides the precision and safety you need.

Technical Specifications

Below are the core specifications for the Allen-Bradley 2094-SE02F-M00-S0. These values are directly from the manufacturer's data and are critical for system design and compatibility.

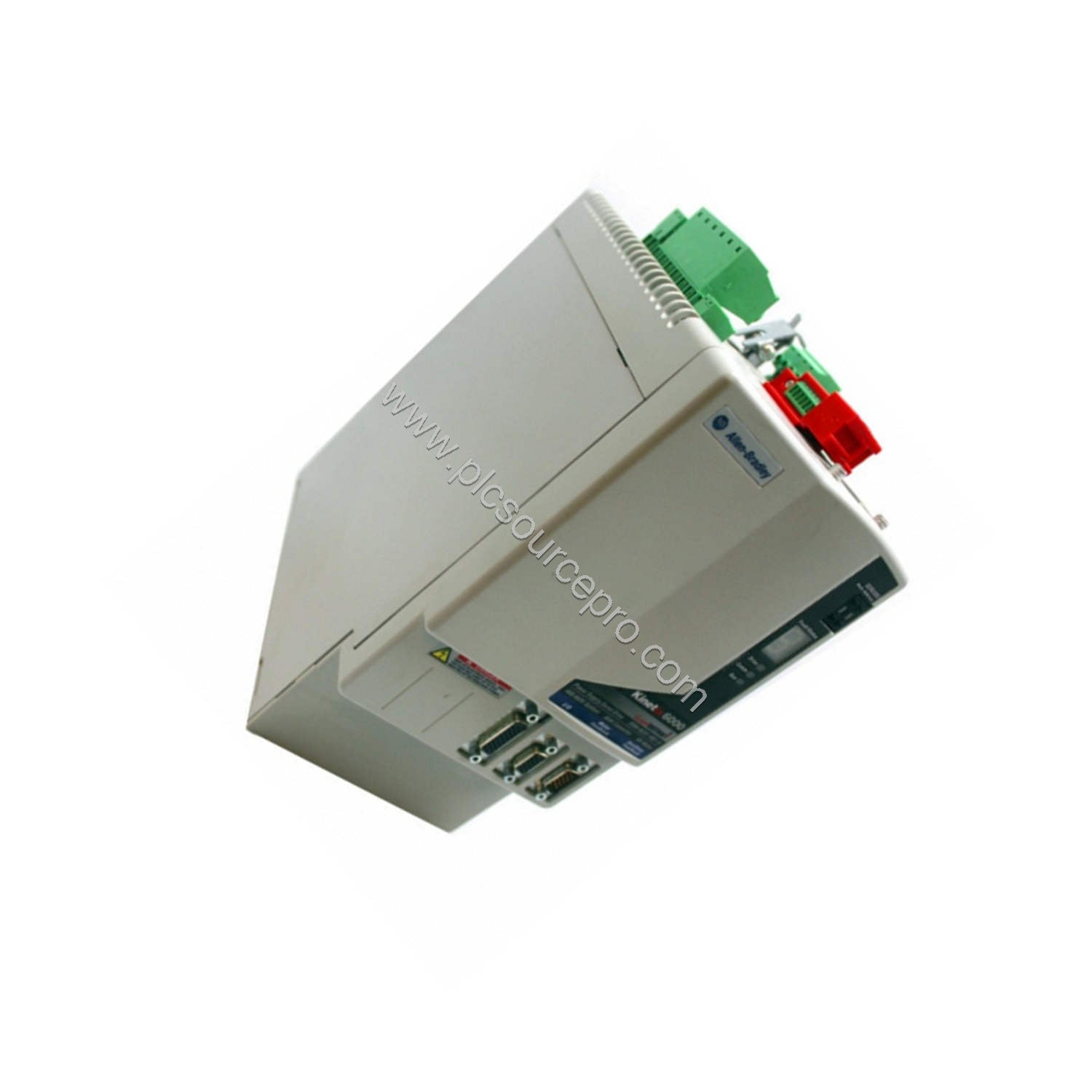

The 2094-SE02F-M00-S0 operates over a Sercos fiber-optic network, which provides excellent immunity to electrical noise and supports deterministic real-time control. Its single Ethernet port allows for easy integration into plant networks for diagnostics and monitoring. The Safe Torque-Off feature is a critical safety function that prevents the drive from restarting when the safety circuit is tripped, meeting ISO 13849-1 PLe/SIL3 standards without the need for an external relay.

Industry Applications

The Allen-Bradley 2094-SE02F-M00-S0 is ideal for high-performance motion control applications. Typical use cases include:

• Packaging machinery: Precise synchronization of servo axes for cutting, filling, and sealing operations.
• Material handling: Reliable control of conveyors and sorters with minimal downtime.
• Machine tools: High-speed spindle and feed axis control requiring accurate positioning and smooth motion.

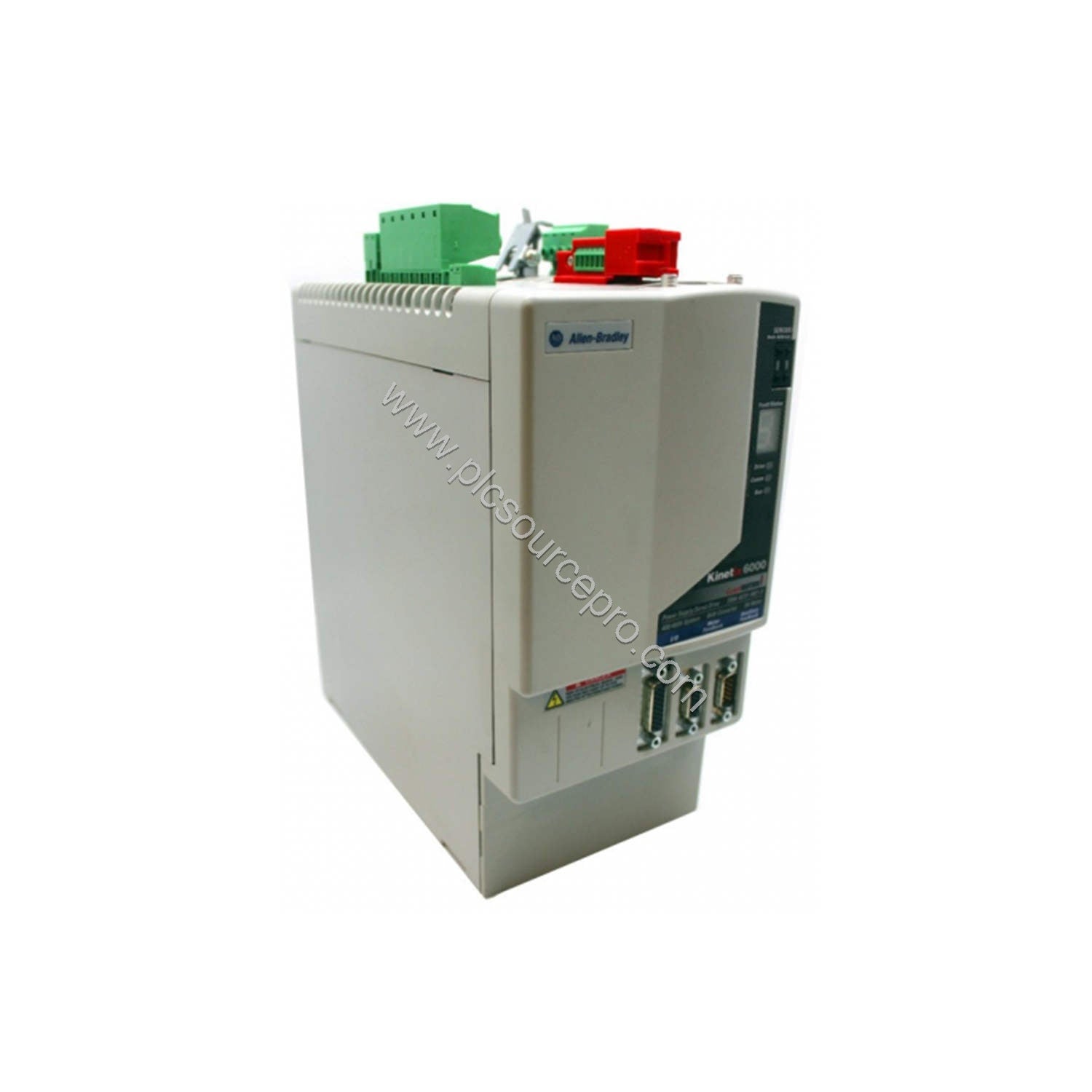

In each scenario, the Sercos interface ensures low-latency communication, while the Safe Torque-Off function enhances operator safety. The compact rail-mount design simplifies installation and reduces panel space.

Installation & Setup Guidance

When installing the 2094-SE02F-M00-S0, follow these best practices:

• Mount the module on a standard DIN rail in a clean, dry enclosure with adequate ventilation.
• Ensure ambient temperature stays within the 0 to 50 °C operating range to prevent overheating.
• Use fiber-optic cables for Sercos connections, observing minimum bend radii to avoid signal loss.
• Connect the Ethernet port to a managed switch for remote monitoring and diagnostics.
• Verify that the Logix 5000 controller firmware is compatible with the module before commissioning.

Maintenance & Reliability

Regular maintenance helps maximize the lifespan of the 2094-SE02F-M00-S0. Inspect the module periodically for dust accumulation on the heatsink and ensure air vents are unobstructed. Check fiber-optic connections for cleanliness and proper seating. Given the module's storage temperature range of -40 to 70 °C, it can withstand harsh warehouse conditions, but avoid exposing it to condensation. By following a simple preventive maintenance schedule, you reduce the risk of unexpected failures and extend the service life of your investment.

Compatibility & Integration

The 2094-SE02F-M00-S0 is designed for seamless integration with Allen-Bradley Logix 5000 controllers. It serves as a control module within the Kinetix 6200 system, which offers modular servo drives with continuous power output from 1.2 to 22 kW and input voltage of 324 to 528 V AC (3-phase). The Sercos interface allows daisy-chaining multiple modules, simplifying wiring and reducing installation costs. The module also features status indicators for DC-bus, drive, communication, and port status, enabling quick diagnostics.

Selection Guide & Purchasing Advice

Before purchasing the Allen-Bradley 2094-SE02F-M00-S0, verify that your system requires a Sercos-based control module and that your controller is Logix 5000 compatible. Confirm the physical dimensions and mounting requirements to ensure a proper fit. For reliable sourcing, consider PLC Source PRO, a trusted supplier of industrial automation spares. We offer genuine parts with fast worldwide shipping.
