Product Overview

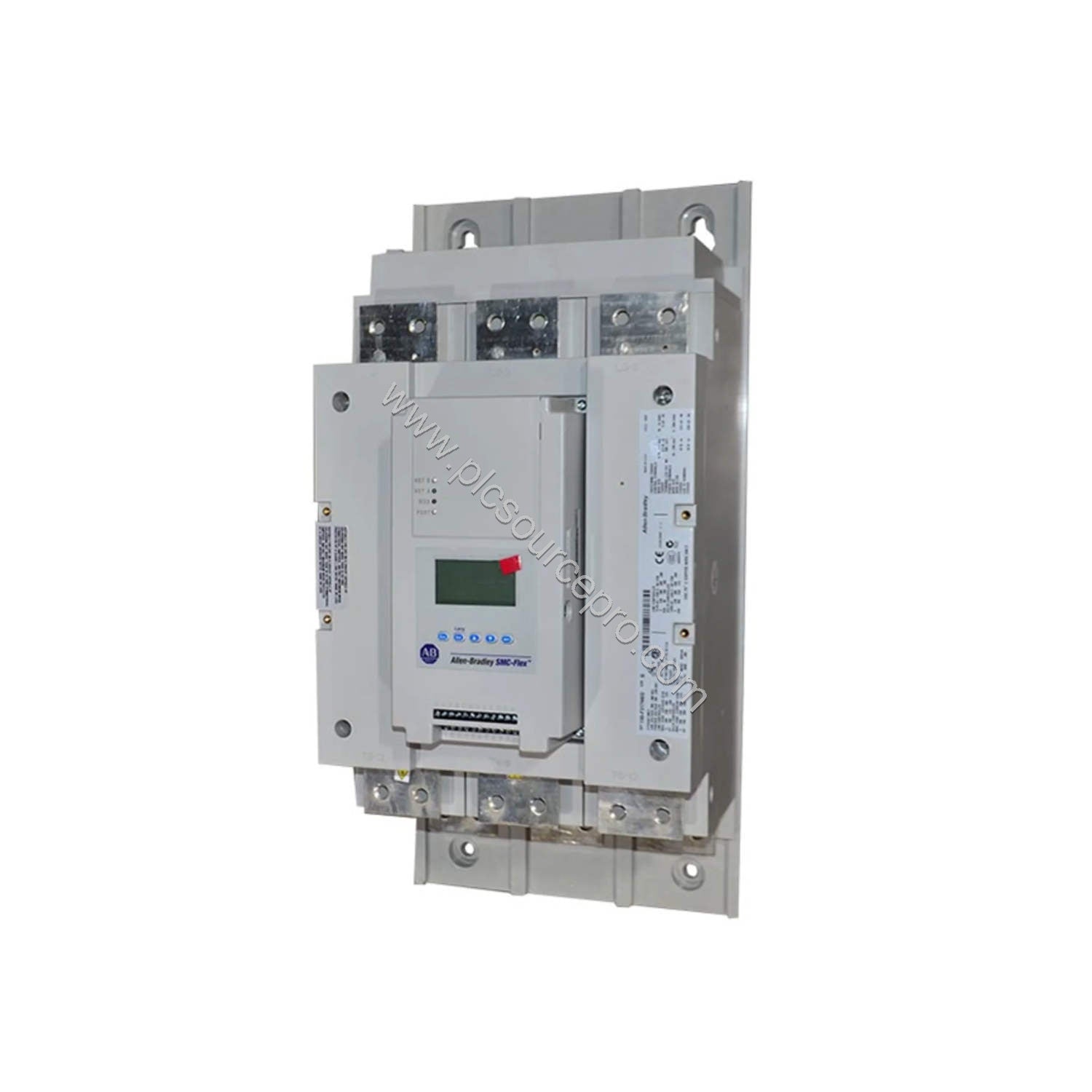

When motor starting demands precision and reliability, the Allen-Bradley 150-F317FAD delivers. This SMC-Flex solid state controller is engineered to operate standard 3-phase squirrel cage induction and Wye-delta (six-lead) motors with exceptional control. Part of the 150 bulletin series, the 150-F317FAD offers seven standard start modes, providing maximum flexibility for diverse industrial applications. Its robust IP65 (Type 4/12) enclosure ensures protection against dust and water ingress, making it suitable for challenging environments.
Technical Specifications
The Allen-Bradley 150-F317FAD is built to handle demanding loads. Below are the key specifications:
| Specification |
Value |
| Manufacturer |
Allen Bradley |
| Category |
Drives |
| Product Line |
SMC-Flex |
| Part Number |
150-F317FAD |
| Weight |
225.00 lbs (102.06 kg) |
| Enclosure Type |
IP65 (Type 4/12) |
| Controller Rating |
317 A, 250 Hp @ 460V AC |
| Input Line Voltage |
230V AC, 3-phase, 50 and 60 Hz |
| Control Voltage |
100-240V AC (5-480 A units) |
| Rated Voltage |
230V AC |
These specifications ensure the 150-F317FAD integrates seamlessly into existing motor control systems, offering high current handling and robust performance.
Key Features & Benefits
-
Seven Start Modes: Provides maximum control and flexibility for various starting conditions.
-
Integrated Protection: Built-in motor overload protection, with parameters programmable by the installer for optimal safety.
-
Advanced Monitoring: Efficient metering system tracks all working parameters, enabling proactive maintenance.
-
Enhanced Communication: DPI communication method allows control and diagnostics from multiple sources, with three DPI ports for connectivity.
-
User-Friendly Interface: LCD display and programmable keyboard simplify setup and operation.
-
Durable Construction: IP65 (Type 4/12) enclosure is impermeable to dust and water, ensuring longevity in harsh environments.
Industry Applications
The Allen-Bradley 150-F317FAD is ideal for applications requiring controlled motor starting and stopping. Typical use cases include:
- Conveyor systems in manufacturing plants, where smooth acceleration reduces mechanical stress.
- Pumps and fans in HVAC and water treatment facilities, benefiting from reduced inrush current.
- Compressors and mixers in processing industries, where precise torque control enhances product quality.
In each scenario, the 150-F317FAD ensures reliable operation and extends equipment life.
Installation & Setup Guidance
Proper installation is critical for optimal performance. Follow these guidelines:
- Mount the 150-F317FAD in a clean, dry area with adequate ventilation. The IP65 enclosure allows outdoor or washdown installations, but ensure the unit is securely fastened.
- Connect the three-phase input line voltage (230V AC, 50/60 Hz) to the designated terminals, observing correct phase sequencing.
- Wire the motor leads according to the wiring diagram for either standard or Wye-delta configurations. Verify that the controller rating (317A, 250 Hp @ 460V AC) matches the motor's full-load current.
- Set the control voltage (100-240V AC) and program start modes and overload parameters using the onboard keyboard and LCD display.
- After installation, test the unit with the motor disconnected to verify control signals before full operation.
Maintenance & Reliability
Regular maintenance ensures the 150-F317FAD delivers consistent performance. Key practices include:
- Periodically inspect the enclosure seals and gaskets to maintain IP65 integrity.
- Check all electrical connections for tightness, as vibration can loosen terminals over time.
- Monitor the metering system for abnormal current or voltage readings, which may indicate developing issues.
- Keep the unit clean and free of dust accumulation, especially around the LCD display and keyboard.
Following these steps minimizes downtime and extends the service life of the controller.
Compatibility & Integration
The 150-F317FAD integrates easily into existing control systems. Its DPI communication ports allow connection to higher-level controllers, PLCs, or HMIs, enabling remote monitoring and control. The controller supports standard 3-phase squirrel cage induction and Wye-delta motors, making it a versatile choice for upgrade projects. When replacing older starters, the 150-F317FAD offers enhanced diagnostics and protection, improving overall system reliability.
Selection Guide & Purchasing Advice
Before purchasing the 150-F317FAD, verify the following:
- Motor voltage and current ratings match the controller rating (317A, 250 Hp @ 460V AC).
- Input line voltage is 230V AC, 3-phase, 50 or 60 Hz.
- Enclosure type (IP65) suits your installation environment.
- Control voltage requirements align with your available supply (100-240V AC).
PLC Source PRO is your reliable partner for sourcing genuine Allen-Bradley 150-F317FAD controllers and other industrial automation parts. With a vast inventory and expert support, you can trust us to keep your operations running smoothly.
